Start Relay

Brand: Mortch Motor
Product Code: MICF9010-150310-10001

Product Viewed: 1

Availability: In Stock

Weight: 0.16kg

Packing Size: 10.00 x 8.00 x 4.00cm

0 reviews / Write a review

US$6.67

Shipping To：

More Quotes

CFMoto Starter Relay (Solenoid)

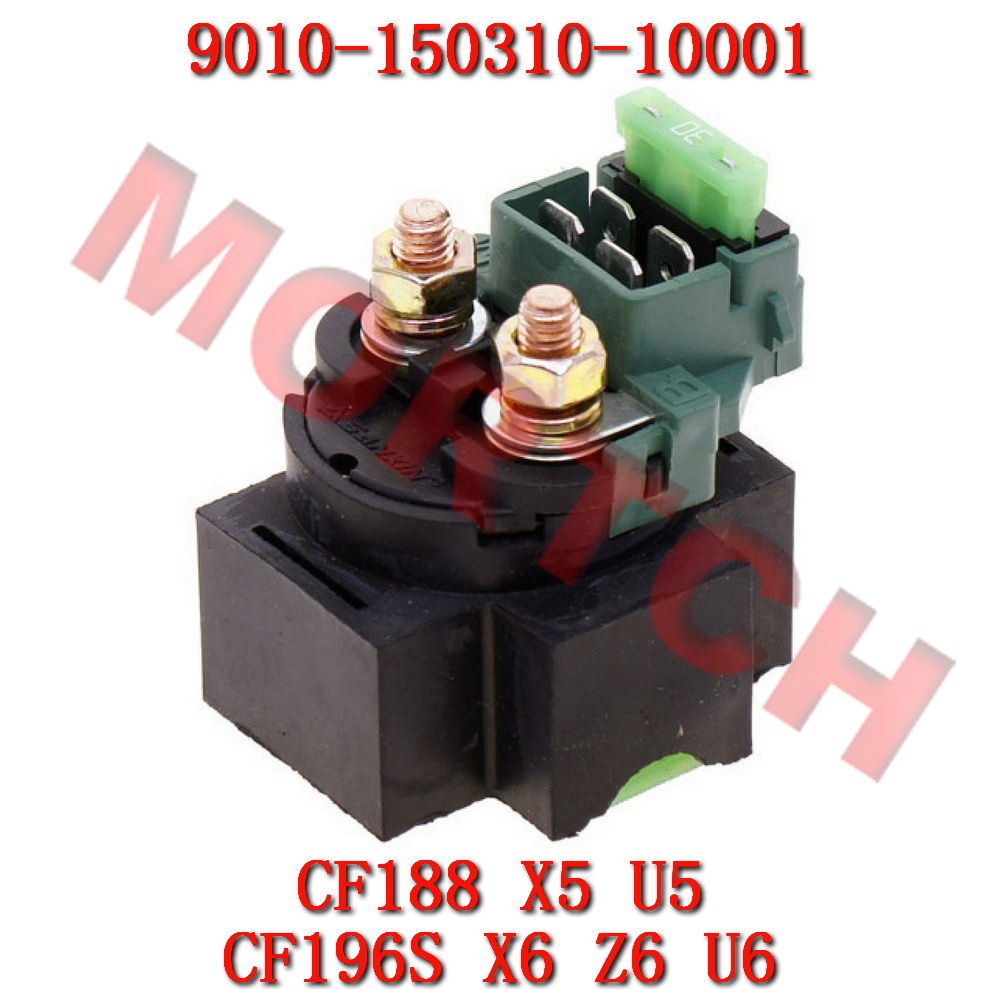

OEM Part Number 9010-150310-10001 (Old P/N: 901-15.03.10)

Compatible with Chironex Spartan P/N: 31800-5000 | Xinyang P/N: 31800-5000

Engine Size: 250cc - 600cc Electric Start Engines

Bolt Stud Spacing: 20mm (2cm) center-to-center | 20A in-line fuse recommended

📋 Overview & Wide Compatibility

This starter relay is a high-quality OEM replacement for CFMoto, part number 9010-150310-10001 (old P/N 901-15.03.10). It is a standard non-fuse type relay suitable for 250cc to 600cc electric start engines. For additional circuit protection, using a 20A in-line fuse is highly recommended.

Widely compatible with the following brands and models:

CFMoto: 400cc/500cc/600cc ATV/UTV/XUV/4x4 models (e.g., CF500 X5, CF600 X6, IRON, COBALT). OEM description is "STARTER RELAY".
Chironex (Spartan Series): 500cc and 600cc Spartan XUV/UTV (4x4/2x4 and similar variations). Common part number 31800-5000, listed as "STARTING RELAY" in parts lists.
Xinyang: XY500UE, XY600UE, and other 500cc/600cc ATV/UTV/XUV/4x4/2x4 models. Also uses common part number 31800-5000.
Other: Also fits numerous CFMoto motorcycles (400NK, 650NK, 650MT, 650TR-G, 700CL-X, etc.) and police motorcycles listed below.

✨ OEM Quality, Multi-Use: Manufactured to strict OEM specifications, this relay serves as a perfect replacement for several brands, making it an ideal choice for repairs and inventory.

📐 Specifications

CFMoto Part Number 9010-150310-10001 / 901-15.03.10

Compatible P/N 31800-5000 (Chironex/Xinyang)

Bolt Stud Spacing 20 mm (2 cm)

Coil Resistance 3Ω - 5Ω (Standard Range)

Recommended Fuse 20A In-line Fuse (for added protection)

Engine Size 250cc - 600cc Electric Start

🔬 Starter Relay Testing Procedure

● Step 1: Function Test - Apply DC 12V between the positive and negative terminals of the relay coil. Use a multimeter to check for continuity (beep) between the two large contact terminals.

● Step 2: De-energized Test - Remove the DC 12V power. There should be NO continuity between the two large contact terminals.

● Step 3: Conclusion - If both of the above tests are OK, it indicates the relay is functionally good.

⚠️ CAUTION: The voltage loaded between terminals cannot exceed 1 minutes; otherwise, the starter relay may overheat or burn.

● Step 4: Coil Resistance Test - Set your multimeter to Diode or Resistance mode (1×10Ω range). Measure the resistance across the relay coil terminals. If the reading is out of specification, replace the relay.

📏 Standard Starter Relay Coil Resistance: 3Ω ~ 5Ω

🔧 Applications (Partial List)

🏍️ ATV / UTV – IRON, COBALT, X5, X6, Z6

ATV CF400ATR-5L(T3b) IRON MAX T3
ATV CF400ATR-5S(T3b) IRON T3
ATV CF400AU-2L IRON MAX L7e
ATV CF400AU-2S IRON L7e
ATV CF500-5B X5
ATV CF500-5C X5
ATV CF500ATR-5L(T3b) COBALT MAX T3
ATV CF500ATR-5S(T3b) COBALT T3
ATV CF500AU-8L COBALT MAX L7e
ATV CF500AU-8S COBALT L7e
ATV CF600-C X6
ATV CF625-2 X6
ATV CF625-2A X6
ATV CF625-B X6
ATV CF625-C X6
SSV CF600-3 Z6
SSV CF625-3 Z6

🏍️ Motorcycles – NK, MT, TR-G, GT, CL-X Series

400 Series:

CF400 400NK
CF400-5 400GT
CF400-A 400NK
CF400-B 400NK

650 Series:

CF650 650NK
CF650-2 650TK
CF650-3 / -3C 650MT
CF650-6 / -6A 650TR-G
CF650-7 / -7B / -7C 650NK
CF650-8 / -8F 650GT

700 Series (CL-X):

CF700-2 700 CL-X Heritage
CF700-2A / -2C / -2D

1280 Series:

CF1280-2

🚓 Police Motorcycles

CF1250G / CF1250J
CF400J / CF400J-2 / CF400J-3
CF650G
CF650J / CF650J-2 / -2A / -2B / -3 / -3A

📌 Compatibility Note: This starter relay fits the extensive list of CFMoto models above, as well as Chironex Spartan and Xinyang XY500UE/XY600UE models mentioned in the overview. Due to the wide range of applications, please verify your original relay's appearance, bolt spacing (20mm), and part number to ensure a correct match.

⚙️ Product Features

Direct OEM Replacement: Perfectly matches CFMoto part number 9010-150310-10001, ensuring precise fit and electrical specs.
Cross-Brand Compatibility: Also fits Chironex Spartan and Xinyang 500cc/600cc models, offering a universal starter relay solution.
Standard Mounting: 20mm center-to-center bolt spacing conforms to standard mounting on most ATVs, UTVs, and motorcycles.
Easy to Test: Functionality can be easily verified with a simple 12V test and resistance check (3-5Ω).
Fuse Recommended: For enhanced circuit safety, it's recommended to install a 20A in-line fuse in the circuit.

✅ Typical Symptoms of a Failing Starter Relay: When pressing the start button, you may hear no "click" from the relay; or you hear the click but the starter motor doesn't turn; the starter turns slowly; or starting is intermittent. These symptoms can point to a faulty relay and can be diagnosed using the testing procedure above.

⚠️ Safety Note: When testing the relay, do not apply power for extended periods (max 2 minutes) to prevent overheating. Before installing a new relay, ensure all connections are secure and there is no risk of short circuits.
