Water Pump Seal

Brand: Mortch Motor
Product Code: MICF0180-6069

Product Viewed: 9

Availability: In Stock

Weight: 0.02kg

0 reviews / Write a review

US$1.25 61 SOLD

Shipping To：

More Quotes

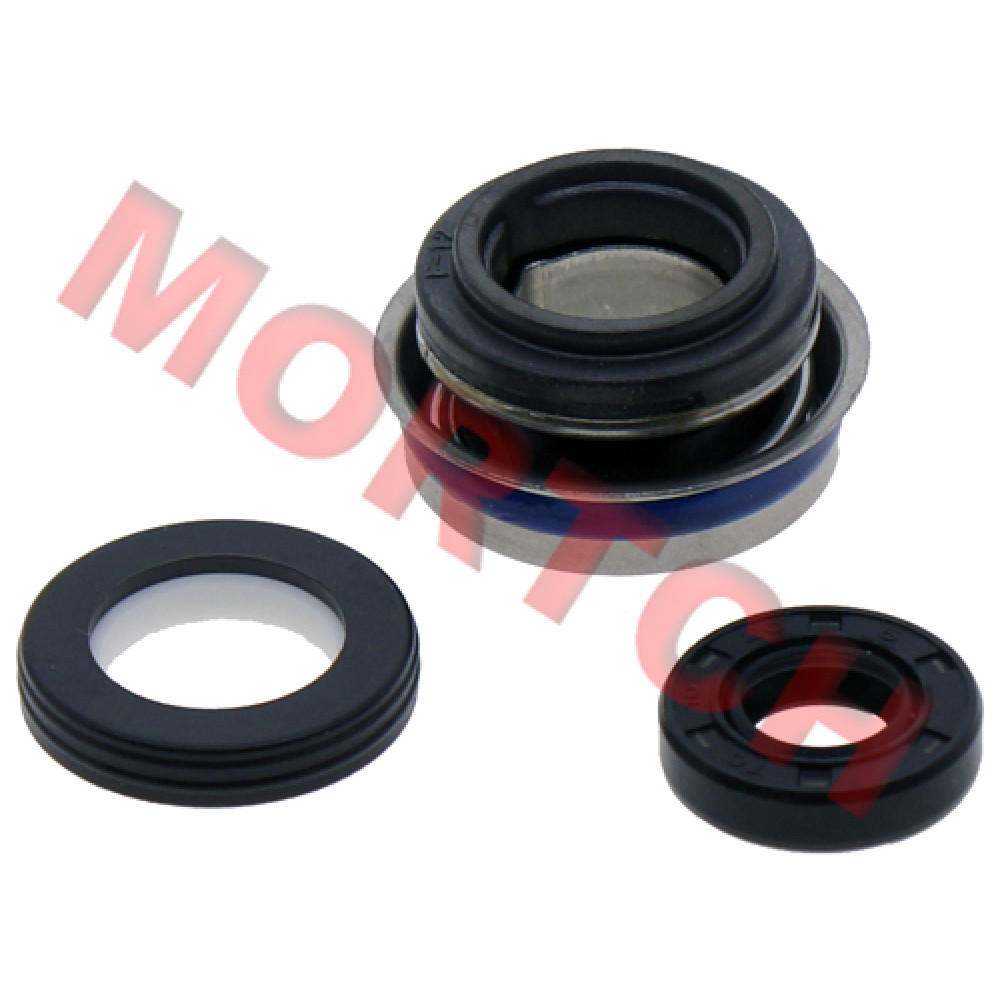

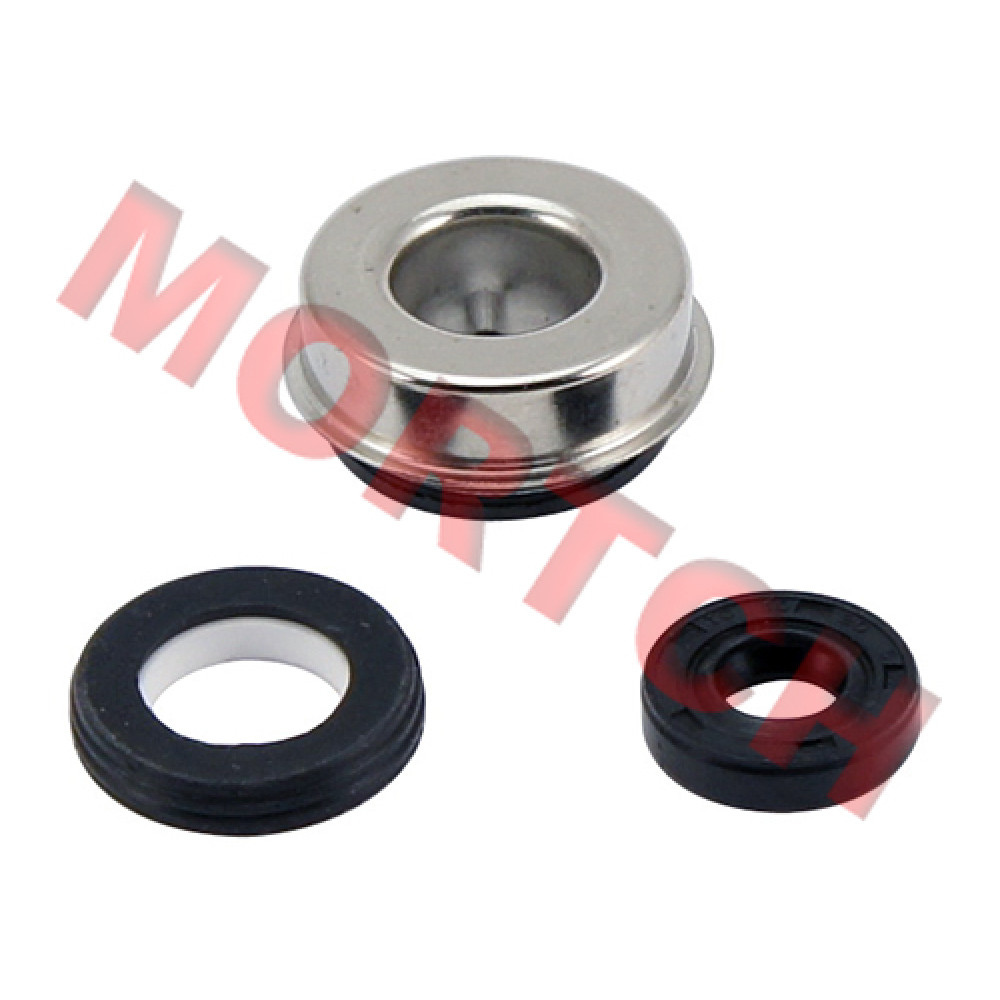

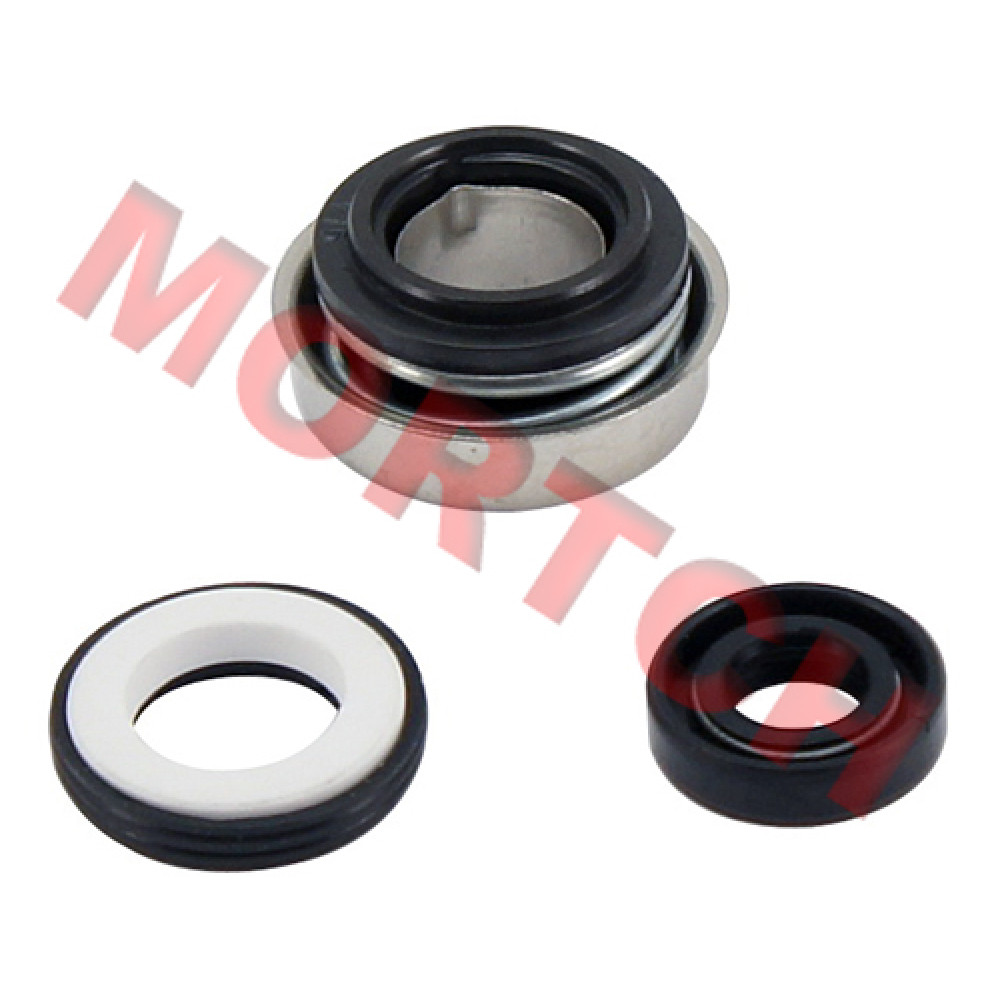

CFMoto Water Pump Seal Set

Includes Water Seal and Oil Seal | Replaces: 152MI-081000 / 172MM-080005

Fits CFMoto 400cc / 500cc / 550cc / 600cc / 625cc / 800cc Multiple Models

📋 Product Overview

This water pump seal set is a high-quality repair part for CFMoto engine cooling systems. The set includes both the water seal and oil seal, preventing coolant and oil leaks to ensure proper water pump operation. This set also fits various other brands and models, including CFMoto V3, V5, Jonway, NST, Roketa, Tank Touring 250, Honda Helix (CN250), Hisun 500/700cc, and many others.

Set includes:

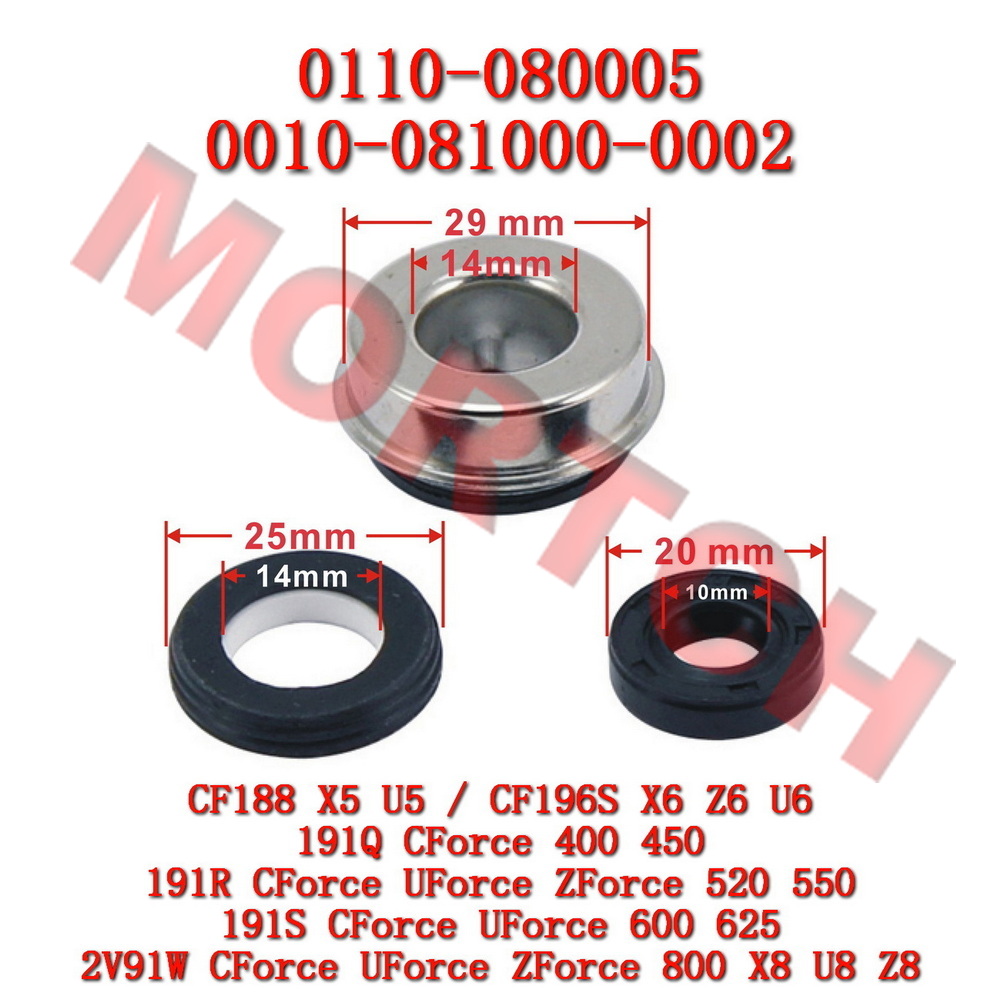

Water Seal: Size 14mm x 32mm x 15mm (Replaces 152MI-081000 / 0010-081000-0002 / 35178 / 1BE-12438-00)
Oil Seal: Size 10mm x 20mm x 5mm (Replaces 172MM-080005 / 0110-080005 / 35177 / 1BE-12437-00)

✨ OEM Quality: Made from high-quality oil-resistant and high-temperature resistant rubber materials, precision-molded to ensure perfect sealing, preventing coolant and oil leaks.

📐 Part Number Cross Reference

Water Seal (14x32x15mm) 152MI-081000 0010-081000-0002 35178 / 1BE-12438-00

Oil Seal (10x20x5mm) 172MM-080005 0110-080005 35177 / 1BE-12437-00

🔧 Compatible Models Complete List

🏍️ 400cc Series (191Q Engine) - CForce 400/450, IRON

ATV CF400ATR CForce 450 191Q
ATV CF400ATR-2L CForce 450L 191Q
ATV CF400ATR-2L(T3a)(SS) CForce 450L 191Q
ATV CF400ATR-2L(T3b)(KSR) CForce 450L 191Q
ATV CF400ATR-2L(T3b)(SS) CForce 450L 191Q
ATV CF400ATR-2L(T3a) CForce 450L 191Q
ATV CF400ATR-2L(T3b) CForce 450L 191Q
ATV CF400ATR-2S CForce 450S 191Q
ATV CF400ATR-2S(T3a) CForce 450S 191Q
ATV CF400ATR-2S(T3b) CForce 450S 191Q
ATV CF400ATR-3L CForce 450L 191Q FOR CF400AU-3L/3S
ATV CF400ATR-3L(T3a) CForce 450L 191Q FOR CF400AU-3L/3S
ATV CF400ATR-3L(T3b) CForce 450L 191Q FOR CF400AU-3L/3S
ATV CF400ATR-3S CForce 450S 191Q FOR CF400AU-3L/3S
ATV CF400ATR-3S(T3a) CForce 450S 191Q FOR CF400AU-3L/3S
ATV CF400ATR-3S(T3b) CForce 450S 191Q FOR CF400AU-3L/3S
ATV CF400ATR-5L(T3b) IRON MAX T3 191Q
ATV CF400ATR-5S(T3b) IRON T3 191Q
ATV CF400ATR-L CForce 450L 191Q
ATV CF400AU CForce 400S/450S 191Q
ATV CF400AU(CA) CForce 400S 191Q(US)
ATV CF400AU(US) CForce 400S 191Q(US)
ATV CF400AU-2L IRON MAX L7e 191Q
ATV CF400AU-2S IRON L7e 191Q
ATV CF400AU-3L CForce 450L 191Q-A FOR CF400AU-3L/3S
ATV CF400AU-3S CForce 450S 191Q-A FOR CF400AU-3L/3S
ATV CF400AU-A CForce 450S 191Q
ATV CF400AU-B CForce 450L 191Q
ATV CF400AU-L CForce 400L/450L 191Q
ATV CF400AU-L(CA) CForce 400L 191Q(US)
ATV CF400AU-L(RU) CForce 400L 191Q
ATV CF400AU-LF CForce 450L 191-A (KSR)
ATV CF400AU-SF CForce 450S 191Q-A
ATV CF400AZ-3L CForce 450L 191Q
ATV CF400AZ-3S CForce 450S 191Q

🏍️ 500/550cc Series (191R Engine) - CForce 500/520/550, ZForce, UForce, COBALT

ATV CF500ATR CForce 520 191R-X550
ATV CF500ATR-2L CForce 520L 191R-X550
ATV CF500ATR-2L(T3a) CForce 520L 191R-X550
ATV CF500ATR-2L(T3b) CForce 520L 191R-X550
ATV CF500ATR-2LC CForce 520L 191R-X550
ATV CF500ATR-2S CForce 520S 191R-X550
ATV CF500ATR-2S(T3a) CForce 520S 191R-X550
ATV CF500ATR-2S(T3b) CForce 520S 191R-X550
ATV CF500ATR-2SC CForce 520S 191R-X550
ATV CF500ATR-3 CForce 520 191R-X550
ATV CF500ATR-3(T3a) CForce 520 191R-X550
ATV CF500ATR-5L(T3b) COBALT MAX T3 191R FOR CF500ATR-5L&5S
ATV CF500ATR-5S(T3b) COBALT T3 191R FOR CF500ATR-5L&5S
ATV CF500ATR-9L CForce 550 191R-E FOR CF500AU-9L/9S
ATV CF500ATR-9L(T3a) CForce 550 191R-E FOR CF500AU-9L/9S
ATV CF500ATR-9L(T3b) CForce 550 191R-E FOR CF500AU-9L/9S
ATV CF500ATR-9S(T3a) CForce 550 191R-E FOR CF500AU-9L/9S
ATV CF500ATR-9S(T3b) CForce 550 191R-E FOR CF500AU-9L/9S
ATV CF500ATR-A CForce 550 191R-X550
ATV CF500AU-6B CForce 550 191R-C FOR CF500AU-6B
ATV CF500AU-6L CForce 550 191R-X550
ATV CF500AU-6L(CA) CForce 550HO 191R-X550(CA)
ATV CF500AU-7A CForce 520S 191R FOR CF500AU-7S&7L
ATV CF500AU-7C CForce 520L 191R FOR CF500AU-7S&7L
ATV CF500AU-7L CForce 520L 191R FOR CF500AU-7S&7L
ATV CF500AU-7LF CForce 520L 191R-E
ATV CF500AU-7S CForce 520S 191R FOR CF500AU-7S&7L
ATV CF500AU-7S(AU) CForce 500S 191R FOR CF500AU-7S&7L(CA)
ATV CF500AU-7S(CA) CForce 500S 191R FOR CF500AU-7S&7L(CA)
ATV CF500AU-7S(US) CForce 500S 191R FOR CF500AU-7S&7L(US)
ATV CF500AU-7SF CForce 500S/CForce 520S 191R-E
ATV CF500AU-8L COBALT MAX L7e CF500AU-8S/8L
ATV CF500AU-8S COBALT L7e CF500AU-8S/8L
ATV CF500AU-9S CForce 550 191R-E FOR CF500AU-9L/9S
ATV CF500AU-9L CForce 520L 191R-E FOR CF500AU-9L/9S
ATV CF500AZ-9S CForce 500/CForce 520 191R FOR CF500AU-9L/9S
SSV CF500US ZForce 500 Trail 191R-Z550
SSV CF500US(CA) ZForce 550 191R-Z550(CA)
SSV CF500US(US) ZForce 500 Trail 191R-Z550(US)
SSV CF500US-EX ZForce 550EX 191R-Z550
SSV CF500UTR ZForce 550EX 191R-Z550
SSV CF500UTR(T1a) ZForce 550EX 191R-Z550
SSV CF500UTR(T1a)(SS) ZForce 550EX 191R-Z550
SSV CF500UTR(T1b) ZForce 550EX 191R-Z550
SSV CF500UTR(T1b)(GD) ZForce 550EX 191R-Z550
UTV CF500UTR-2 UForce 550 191R-U550
UTV CF500UTR-2（GD） UForce 550 191R-U550
UTV CF500UU UForce 550 191R-U550
UTV CF500UU(CA) UForce 500 191R-U550(CA)
UTV CF500UU(US) UForce 550 191R-U550(US)

🏍️ 600/625cc Series (191S/196S Engine) - CForce 600/625, UForce, Z6, X6

ATV CF600ATR-2L CForce 625 Touring 191S
ATV CF600ATR-2L(T3b) CForce 625 Touring 191S
ATV CF600ATR-2LC CForce 625 Touring 191S-B
ATV CF600ATR-2S CForce 625 191R-X550
ATV CF600ATR-2S(T3b) CForce 625 191R-X550
ATV CF600ATR-2SC CForce 625 191S-B
ATV CF600ATR-L CForce 625 191S
ATV CF600ATR-L(T3a) CForce 600 191S
ATV CF600ATR-L(T3b) CForce 600 191S
ATV CF600AU-3L CForce 600 Touring/625 Touring 191S
ATV CF600AU-3L(CA) CForce 600 Touring 191S(CA)
ATV CF600AU-3L(US) CForce 600 Touring 191S(US)
ATV CF600AU-3LA CForce 600 Touring/625 Touring 191S-A
ATV CF600AU-3LF CForce 600 Touring/625 Touring 191S-A
ATV CF600AU-3S CForce 600/625 191S
ATV CF600AU-3SA CForce 600 191S(CA)
ATV CF600AU-3S(CA) CForce 600 191S(CA)
ATV CF600AU-3S(US) CForce 600 191S(US)
ATV CF600AU-3SF CForce 600 191S-A
ATV CF600AU-L CForce 600 191S
ATV CF600AU-L(EU168) CForce 600 191S
ATV CF600AU-L(INTERNATIONAL) CForce 600 191S
ATV CF600AU-L(US) CForce 600 191S(US)
ATV CF600AZ-3L(CA) CForce 600 191S
ATV CF600AZ-3L(US) CForce 600 191S
ATV CF600AZ-3LA(CA) CForce 600 191S
ATV CF600AZ-3LA(US) CForce 600 191S
ATV CF600AZ-3S(CA) CForce 600 191S
ATV CF600AZ-3S(US) CForce 600 191S
ATV CF600AZ-3SA(CA) CForce 600 191S
ATV CF600AZ-3SA(US) CForce 600 191S
UTV CF600UTR(T1b) UForce 600 191S-U6
UTV CF600UTR(T1b)(GD) UForce 600 191S-U6
UTV CF600UTR(T1b)(KSR) UForce 600 191S-U6
UTV CF600UTR(T1b)(SS) UForce 600 191S-U6
UTV CF600UU UForce 600 191S-U6
UTV CF600UU(AU) UForce 600 191S-U6
UTV CF600UU(ST) UForce 600 191S-U6
UTV CF600UU(US) UForce 600 191S-U6
UTV CF600UZ(CA) UForce 600 191S-U6
UTV CF600UZ(US) UForce 600 191S-U6

🏍️ 500cc X5 Series (CF188 Engine)

ATV CF500 X5 CF188
ATV CF500-2 X5 CF188
ATV CF500-2A X5 CF188
ATV CF500-5 X5 CF188
ATV CF500-5A X5 CF188
ATV CF500-5B X5 CF188-B
ATV CF500-5C X5 CF188-B
ATV CF500-A X5 CF188
ATV CF500-B X5 CF188
ATV CF500-C X5 CF188
ATV CF500-D X5 CF188
ATV CF500-E X5 CF188
UTV CF500-3 UForce 500 U5 CF188-A

🏍️ 600cc X6/U6/Z6 Series (196S Engine)

ATV CF600-B X6 196S-B(X6)
ATV CF600-C X6 196S-B(X6)
ATV CF625-2 X6 196S-B(X6)
ATV CF625-2A X6 196S-B(X6)
ATV CF625-B X6 196S-B(X6)
ATV CF625-C X6 196S-B(X6)
UTV CF600-5 UForce U6 196S-B(U6)
SSV CF600-3 Z6 196S-C
SSV CF600-6 Z6 196S-C
SSV CF625-3 Z6 196S-C
SSV CF625-6 Z6 196S-C

🏍️ 800cc Series (2V91W Engine) - CForce 800, ZForce, UForce

ATV CF800-2 X8 2V91W(X8)
ATV CF800ATR CForce 800 2V91W(X8)
ATV CF800ATR-2 CForce 800 2V91W FOR CF800ATR-2
ATV CF800AU-2B CForce 800 2V91W-S
SSV CF800 ZForce 800EX 2V91W(Z8)
SSV CF800(Z8) ZForce 800EX 2V91W(Z8)
SSV CF800(CA) ZForce 800EX 2V91W(Z8-US)
SSV CF800(US) ZForce 800EX 2V91W(Z8-US)
SSV CF800US-A ZForce 800 Trail 2V91W(Z8)
SSV CF800US-A(CA) ZForce 800 Trail 2V91W(Z8-US)
SSV CF800US-A(US) ZForce 800 Trail 2V91W(Z8-US)
SSV CF800UTR ZForce Z8-EX 2V91W FOR CF800UTR
SSV CF800SU-2 ZForce 800 Trail 2V91W-B
SSV CF800SZ-2 ZForce 800 Trail 2V91W(Z8)
UTV CF800-3 UForce 800 2V91W(U8)
UTV CF800-3(CA) UForce 800 2V91W(U8-CA)
UTV CF800-3(US) UForce 800 2V91W(U8-US)
UTV CF800UTR-2 UForce 800 2V91W FOR CF800UTR-2
UTV CF800UTR-2(GD) UForce 800 2V91W FOR CF800UTR-2
UTV CF800UTR-2(KSR) UForce 800 2V91W FOR CF800UTR-2
UTV CF800UTR-2(SS) UForce 800 2V91W FOR CF800UTR-2
UTV CF800UU-A UForce 800 2V91W(U8)
UTV CF800UU-A(AU) UForce 800 2V91W(U8)
UTV CF800UU-A(KSR) UForce 800 2V91W(U8)

🔧 Also fits the following other brands and models:

CFMoto V3
CFMoto V5
Jonway
NST
Roketa
Tank Touring 250
Honda Helix (CN250)
Hisun 500
Hisun 700cc
And many others

📌 Compatibility Note: This water pump seal set fits all CFMoto models listed above, covering displacements from 400cc to 800cc, including CForce, ZForce, UForce, IRON, COBALT, X5, X6, U6, Z6 series, and many others. Also fits various other brand models.

⚙️ Features

Complete Set: Includes both water seal and oil seal needed for water pump service - one purchase completes all seal replacements.
Quality Materials: Made from coolant-resistant, oil-resistant, and high-temperature resistant quality rubber materials for long service life.
Precise Dimensions: Manufactured to exact OEM specifications, ensuring perfect fit and reliable sealing.
Prevents Leaks: Effectively prevents coolant and oil leaks, protecting the engine from damage.
Wide Application: Fits multiple CFMoto models and various other brands.

✅ Importance of Water Pump Seal Replacement: Water pump seals are wear items that age and harden over time, leading to seal failure. Water seal failure allows coolant to leak into the bearing cavity, damaging the bearings. Oil seal failure causes oil leaks. Common symptoms include: coolant dripping from the pump weep hole, rapid coolant loss, milky oil (coolant mixing with oil), and water pump noise. Replace the seal set promptly when these symptoms appear.

⚠️ Installation Tips: Ensure the mounting bore is clean and free of burrs before installing the water seal. Use proper tools to press the seal in place, avoiding damage to the sealing lip. Pay attention to oil seal orientation - the sealing lip should face the oil side. Check water pump bearings for play or noise; replace the entire pump assembly if bearing issues are found.

🔧 Compatibility Notice

Please verify that this part fits your specific vehicle model and year. Many vehicles share similar names but use different components depending on year or market region.
We strongly recommend cross-checking with your vehicle's owner's manual or contacting us for confirmation before placing your order.
