Piston Assy

Brand: Mortch Motor
Product Code: MICF0180-0400B0

Product Viewed: 3

Availability: In Stock

Weight: 0.46kg

0 reviews / Write a review

US$15.00

Shipping To：

More Quotes

CFMoto Piston Assembly 88mm

For CFMoto 500cc CF188/CF188-A/CF188-B Engine

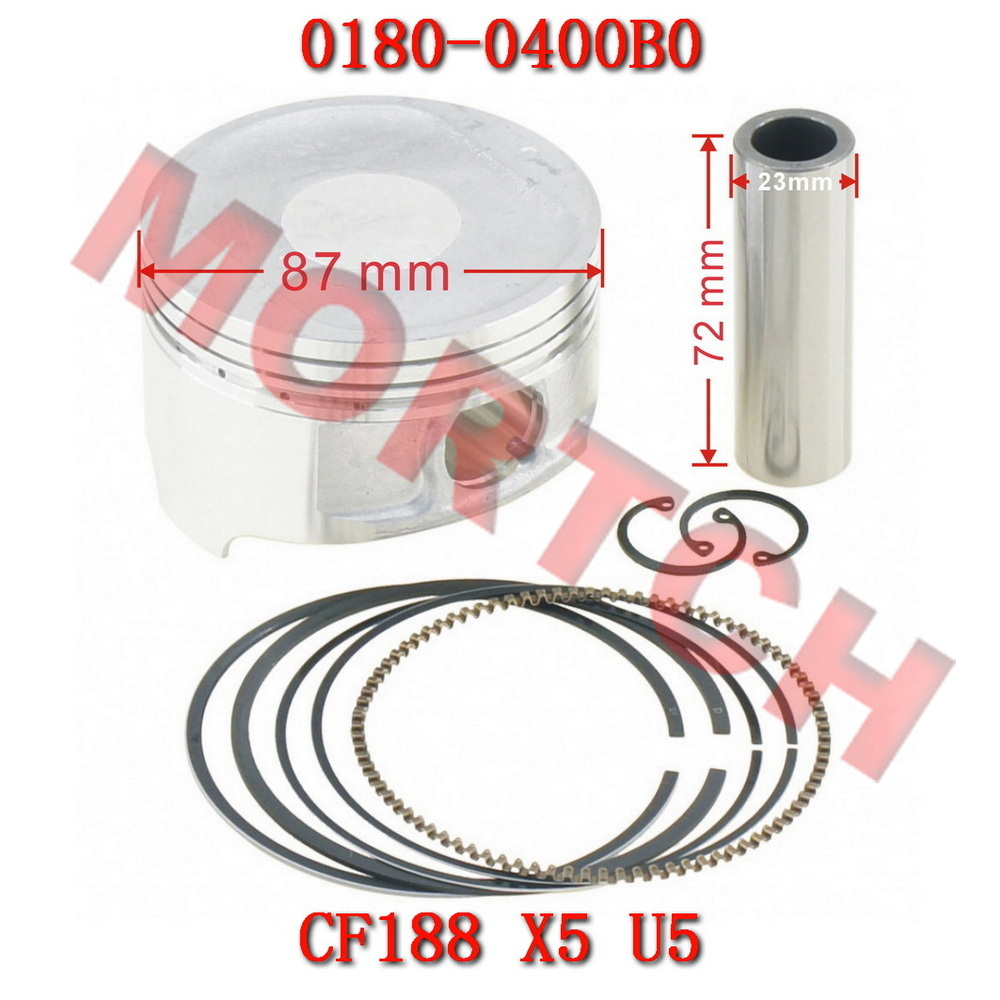

Diameter: 88mm | Height: 56.5mm
Piston Pin: 23 × 72mm

Fits CFMoto 500cc X5 Series ATV and UForce 500 U5

📋 Overview

This piston assembly is a genuine quality replacement part for CFMoto vehicles, including piston, piston rings, piston pin, and piston pin clips. Fits CFMoto 500cc X5 series ATV and UForce 500 U5 models equipped with CF188, CF188-A, and CF188-B engines.

⚠️ Installation Note: The mark on the piston must face the exhaust side.

📌 Important: The piston has a directional mark on the crown. Ensure this mark faces the exhaust side during installation, otherwise severe engine damage may occur.

✨ OEM Quality: All components are manufactured to CFMoto original specifications, ensuring perfect fit and reliable performance.

📐 Specifications

Piston Diameter 88mm

Piston Height 56.5mm

Piston Pin Size 23 × 72mm

📦 This Assembly Includes

CFMoto Part Numbers

CF188-040003 / 0180-040003-0050	Piston Pin Clips (2 pcs)
CF188-040002 / 0180-040002	Piston Pin
CF188-040004 / 0180-040004	Piston
CF188-0400A0 / 0180-0400A0	Piston Rings (1 set)

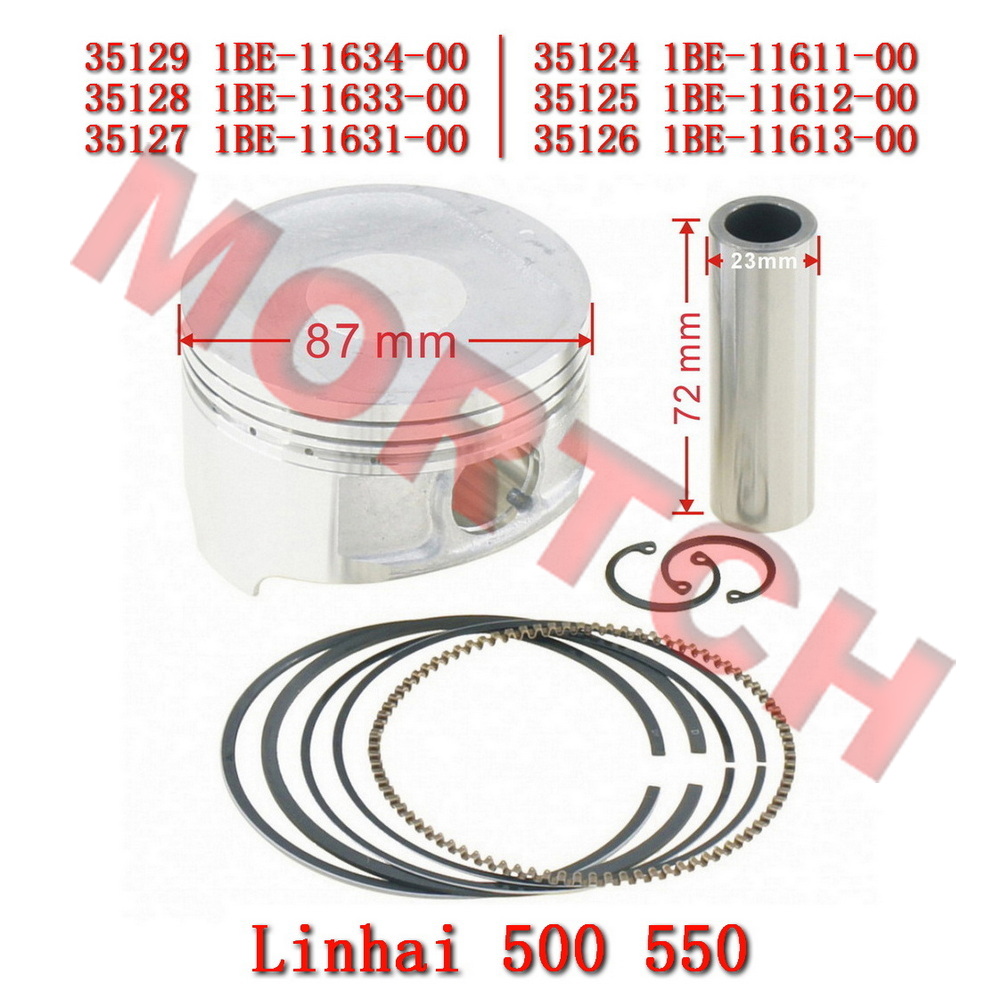

Linhai Part Numbers

35129 / 1BE-11634-00	Piston Pin Clips (2 pcs)
35128 / 1BE-11633-00	Piston Pin
35127 / 1BE-11631-00	Piston
35124 / 1BE-11611-00	Top Ring
35125 / 1BE-11612-00	2nd Ring
35126 / 1BE-11613-00	Oil Ring

📌 Component Note: This assembly includes a complete piston set for one cylinder. The CF188 engine is single cylinder, requiring one kit per engine.

🔧 Compatible Models

ATV CF500 X5 CF188
ATV CF500-2 X5 CF188
ATV CF500-2A X5 CF188
ATV CF500-5 X5 CF188
ATV CF500-5A X5 CF188
ATV CF500-5B X5 CF188-B
ATV CF500-5C X5 CF188-B
ATV CF500-A X5 CF188
ATV CF500-B X5 CF188
ATV CF500-C X5 CF188
ATV CF500-D X5 CF188
ATV CF500-E X5 CF188
UTV CF500-3 UForce 500 U5 CF188-A

📌 Compatibility Note: This piston assembly fits the CFMoto 500cc models listed above equipped with CF188, CF188-A, and CF188-B engines, with 88mm piston diameter.

⚙️ Features

Complete Assembly: Includes piston, rings, pin and clips - everything needed for piston replacement.
OEM Quality: All components manufactured to CFMoto original specifications, ensuring perfect fit.
Quality Aluminum Piston: High-strength aluminum alloy construction for lightweight, excellent heat dissipation, and strength.
Precision Rings: Ring set provides excellent sealing and oil control with reduced friction.
Installation Mark: Directional mark on piston crown ensures correct installation orientation.

✅ Importance of Piston Replacement: The piston is a core engine component subjected to high temperatures, pressure, and reciprocating motion. When ring wear, skirt wear, ring sticking, or piston crown damage occurs, piston assembly replacement is necessary. Worn pistons cause reduced compression, increased oil consumption, power loss, and hard starting. Timely replacement restores engine performance.

⚠️ Important Installation Note: The piston has a directional mark on the crown - ensure it faces the exhaust side. Pay attention to ring end gap positioning and ring orientation. Always use new piston pin and clips; never reuse old clips.
