Crankshaft

Brand: Mortch Motor
Product Code: MICF0180-041000

Product Viewed: 3

Availability: In Stock

Weight: 6.70kg

0 reviews / Write a review

US$96.67

Shipping To：

More Quotes

CFMoto Crankshaft Assembly

Replaces OEM 0180-041000 (Old # CF188-041000)

Overrunning Clutch side: 20mm / 18T

Clutch Carrier side: Thread 18mm / 25mm(24T) / 40mm(21T) / 89mm(43T)

Compatible with CFMoto 500cc models (X5, U5 series, CF188/CF188-A/CF188-B engines)

📋 Overview

This Crankshaft Assembly is a high-quality OEM replacement part for CFMoto, serving as the core component of the engine. It converts the reciprocating motion of the piston into rotational motion, delivering power output. It directly replaces OEM part numbers 0180-041000 (old number CF188-041000).

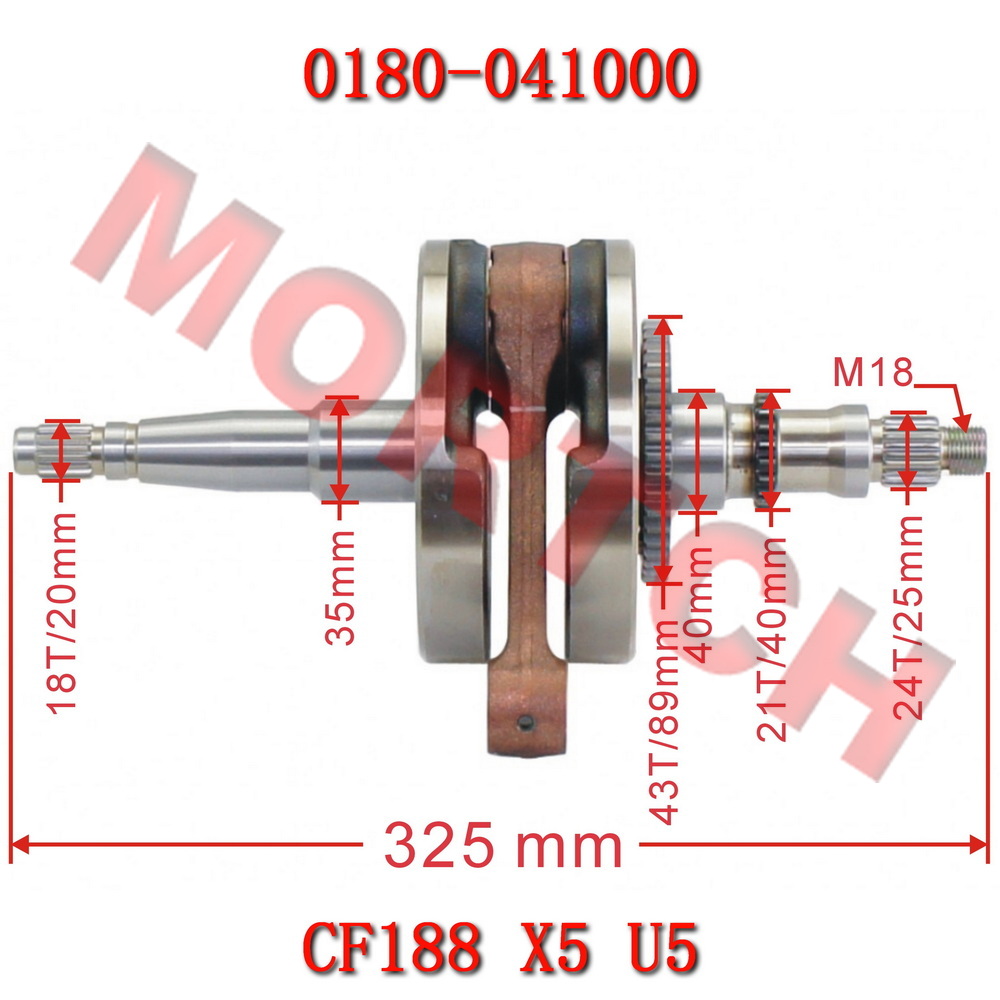

This crankshaft is suitable for CFMoto 500cc series ATV and UTV models equipped with CF188, CF188-A, and CF188-B engines. Crankshaft end specifications are as follows:

Overrunning Clutch side: Shaft Diameter 20mm / 18 Teeth

Clutch Carrier side:

Thread Specification: 18mm
Primary Gear: 25mm / 24 Teeth
Secondary Gear: 40mm / 21 Teeth
Tertiary Gear: 89mm / 43 Teeth

✨ OEM Quality: Forged from high-strength alloy steel, precision-machined, heat-treated, and dynamically balanced to ensure strength, wear resistance, and smooth operation. It is a core component for engine overhaul or replacement.

📐 Specifications

Current Part # 0180-041000

Old Part # CF188-041000

Overrunning Clutch Side 20mm / 18T

Clutch Carrier Thread 18mm

Clutch Carrier Gear 1 25mm / 24T

Clutch Carrier Gear 2 40mm / 21T

Clutch Carrier Gear 3 89mm / 43T

🔧 Detailed Vehicle Fitment List

🔩 CFMoto 500cc Series (X5 / U5)

ATV CF500 X5 CF188
ATV CF500-2 X5 CF188
ATV CF500-2A X5 CF188
ATV CF500-5 X5 CF188
ATV CF500-5A X5 CF188
ATV CF500-5B X5 CF188-B
ATV CF500-5C X5 CF188-B
ATV CF500-A X5 CF188
ATV CF500-B X5 CF188
ATV CF500-C X5 CF188
ATV CF500-D X5 CF188
ATV CF500-E X5 CF188
UTV CF500-3 UForce 500 U5 CF188-A

📌 Compatibility Note: This crankshaft assembly fits the CFMoto 500cc models listed above, equipped with CF188, CF188-A, and CF188-B engines. As the crankshaft is a critical engine component, there may be slight variations between engine batches. It is strongly recommended to verify your original crankshaft part number and end gear specifications to ensure a perfect match.

⚙️ Product Features

Direct OEM Replacement: Perfectly matches CFMoto OEM part numbers 0180-041000 / CF188-041000, ensuring precise fitment.
High-Strength Alloy Steel: Forged from high-quality alloy steel with exceptional fatigue strength and wear resistance to withstand combustion pressures.
Precision Machining: Main journals and crankpins are precision-ground for high surface finish and tight tolerances, ensuring proper bearing fitment.
Dynamic Balancing: The crankshaft assembly undergoes precise dynamic balancing to minimize vibration at high speeds, extending engine life.
Integrated Gears: Timing gears and balance shaft gears are integrated, ensuring accurate valve timing and balance shaft drive.

✅ Importance of Crankshaft Replacement: The crankshaft is one of the most critical and highly stressed components in an engine. After prolonged high-load operation, the crankshaft may develop wear on main or connecting rod journals, fatigue cracks, or bending. These issues lead to engine knocking, increased vibration, low oil pressure, and in severe cases, crankshaft failure resulting in complete engine destruction. During an engine overhaul, if the crankshaft is found to be out of specification or damaged, it must be replaced promptly to ensure engine performance and reliability.

⚠️ Verify Before Ordering: Please ensure your vehicle model and engine type are listed in the fitment guide, and verify the crankshaft end gear specifications match your original part. Crankshaft replacement is a major engine overhaul procedure requiring specialized knowledge and tools. Installation must be performed by an experienced professional technician strictly following the service manual, with simultaneous replacement of bearings, seals, and related components.
