Crankshaft Speed Sensor

Brand: Mortch Motor
Product Code: MICF0130-011300-0001

Product Viewed: 11

Availability: In Stock

Weight: 0.05kg

0 reviews / Write a review

US$14.50

Shipping To：

More Quotes

CFMoto Crankshaft Speed Sensor (Hall Effect)

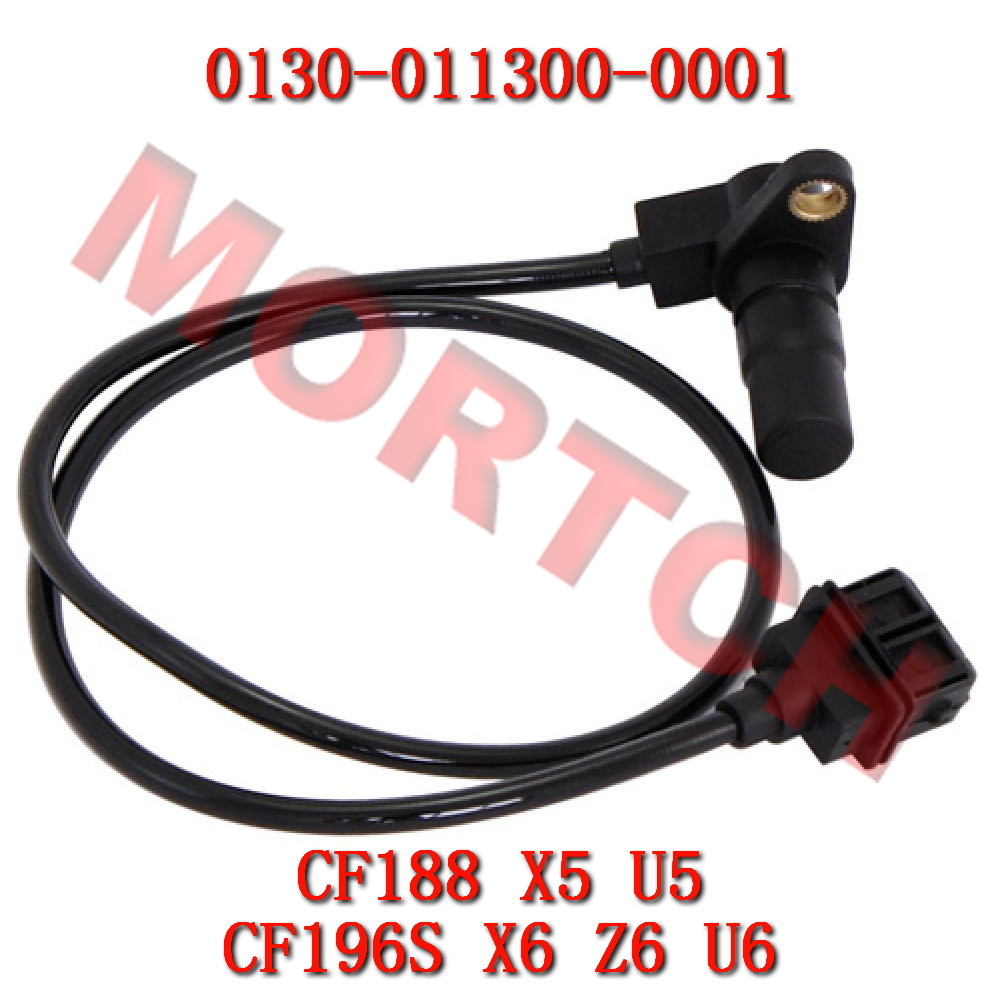

OEM Part Number 0130-011300-0001 (Old P/N: 172MM-B-011300)

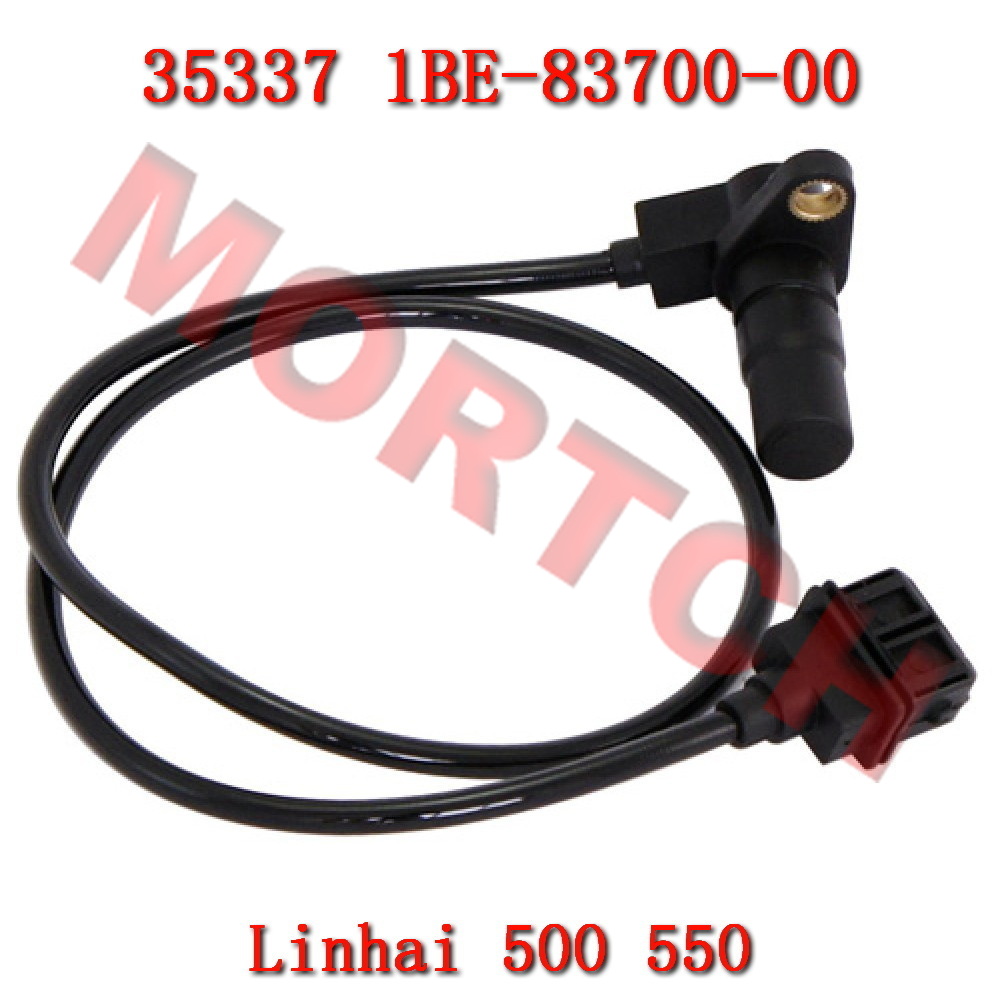

Compatible with Linhai P/N: 35337 / 1BE-83700-00

Detects engine output shaft speed, provides signal to ECU for speed determination, fits multiple CFMoto models.

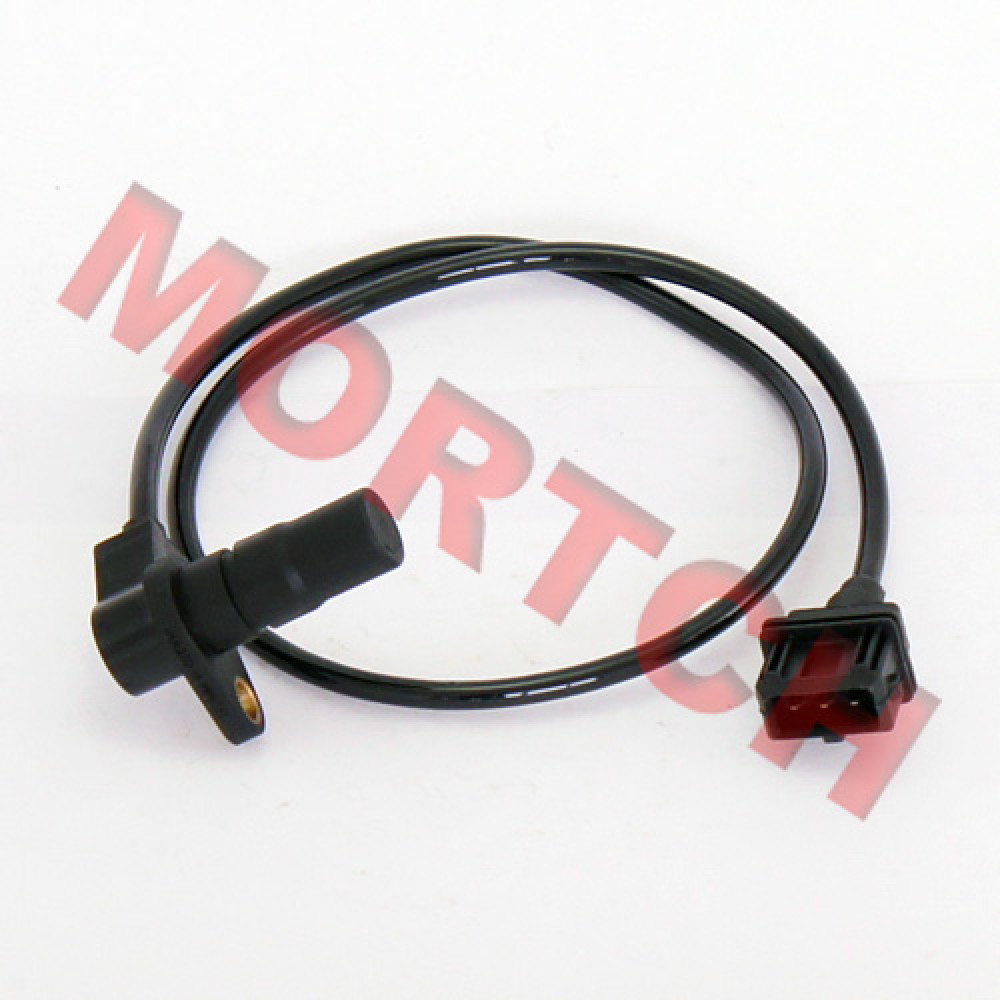

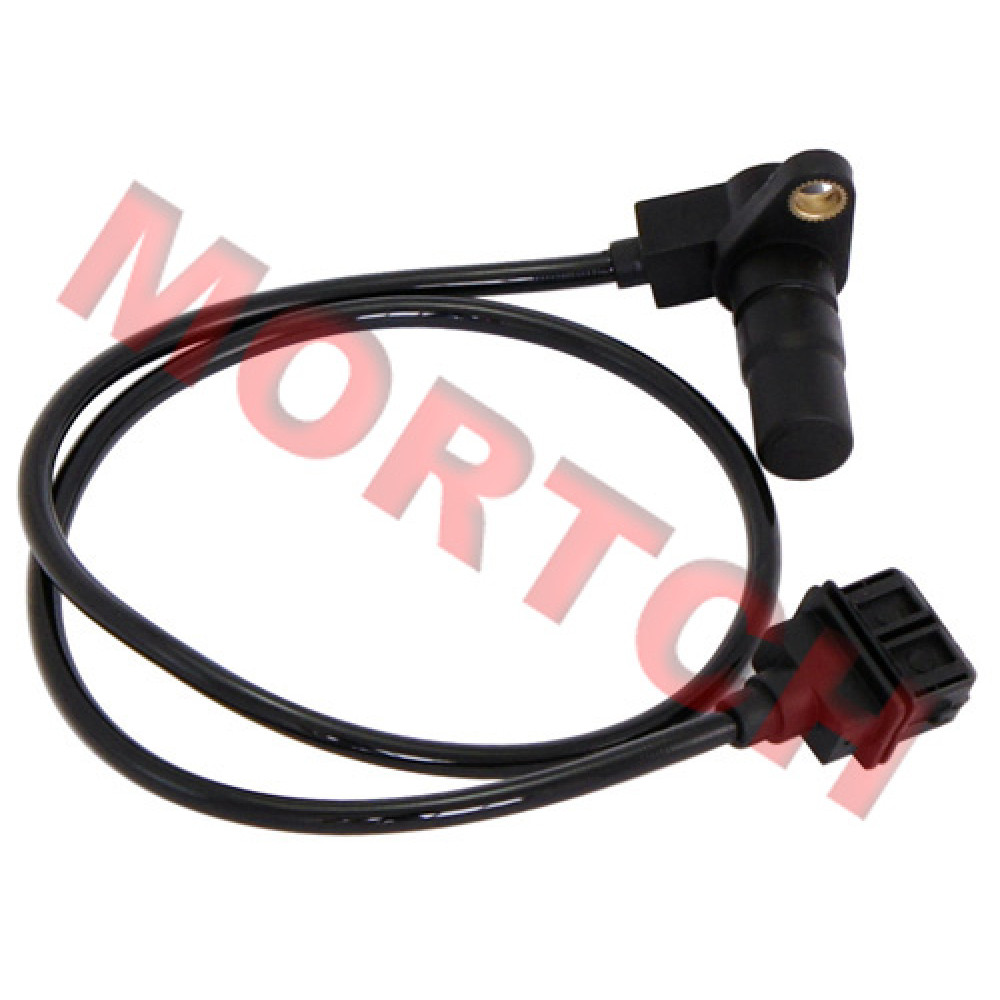

Product image for reference, actual product may vary.

📋 Overview & Working Principle

This crankshaft speed sensor is a high-quality OEM replacement for CFMoto, part number 0130-011300-0001 (old P/N 172MM-B-011300). It is also compatible with Linhai part numbers 35337 and 1BE-83700-00. This sensor is used to detect the rotating speed of the engine output shaft and sends the signal to the ECU (Engine Control Unit) to determine vehicle speed and engine RPM.

This sensor is a Hall effect sensor, which varies its output voltage in response to a magnetic field. As a trigger wheel (with teeth or magnets) mounted on a rotating component (like the crankshaft or output shaft) passes the sensor, it causes a change in the magnetic field, generating a pulse signal. The ECU calculates the rotational speed by counting the frequency of these pulses.

The speed signal is a critical reference for the engine management system to control fuel injection, ignition timing, and shift points.

✨ OEM Quality, Precise & Reliable: Manufactured with high-quality Hall effect elements and durable packaging materials, ensuring accurate sensing of magnetic field changes and stable signal output for proper engine management.

📐 Part Information

Part Numbers 0130-011300-0001 / 172MM-B-011300

Compatible P/N 35337 / 1BE-83700-00 (Linhai)

Sensor Type Hall Effect Sensor

Function Detects engine / output shaft speed

🔧 Applications (by engine family)

🏍️ CF188 (500cc) – X5, UForce 500

ATV CF500 X5 (CF188)
ATV CF500-2 X5 (CF188)
ATV CF500-2A X5 (CF188)
ATV CF500-5 X5 (CF188)
ATV CF500-5A X5 (CF188)
ATV CF500-5B X5 (CF188-B)
ATV CF500-5C X5 (CF188-B)
ATV CF500-A X5 (CF188)
ATV CF500-B X5 (CF188)
ATV CF500-C X5 (CF188)
ATV CF500-D X5 (CF188)
ATV CF500-E X5 (CF188)
UTV CF500-3 UForce 500 U5 (CF188-A)

🏍️ 196S (600/625cc) – X6, UForce U6, Z6

ATV CF600-B X6 (196S-B)
ATV CF600-C X6 (196S-B)
ATV CF625-2 X6 (196S-B)
ATV CF625-2A X6 (196S-B)
ATV CF625-B X6 (196S-B)
ATV CF625-C X6 (196S-B)
UTV CF600-5 UForce U6 (196S-B)
SSV CF600-3 Z6 (196S-C)
SSV CF600-6 Z6 (196S-C)
SSV CF625-3 Z6 (196S-C)
SSV CF625-6 Z6 (196S-C)

📌 Compatibility Note: This speed sensor fits the CFMoto models listed above, primarily those equipped with CF188 and 196S series engines. It is also compatible with the corresponding Linhai part numbers. Please verify your vehicle model, engine type, and the connector style of your original sensor before ordering.

⚙️ Product Features

Direct OEM Replacement: Perfectly matches CFMoto part numbers 0130-011300-0001 and 172MM-B-011300, ensuring correct fit and electrical specs.
Hall Effect Technology: Utilizes Hall effect principles, offering more precise and stable signals compared to variable reluctance sensors, especially at low speeds.
Oil & Heat Resistant: The sensor housing and wiring are made with oil and high-temperature resistant materials, suitable for harsh engine bay environments.
Precise Speed Monitoring: Provides accurate speed signals to the ECU, which is fundamental for precise fuel injection and ignition timing.
Diagnostic Reference: Sensor failure often results in a non-functional speedometer, hard starting, hesitation, or an illuminated check engine light.

✅ Typical Symptoms of a Failing Crankshaft Speed Sensor: Engine hard starting or no-start, hesitation or power interruption during driving, persistent check engine light, inoperative or erratic speedometer/tachometer, and increased fuel consumption. If you experience these issues, check the sensor's air gap, cleanliness, and signal output.

⚠️ Installation Tip: Ensure the sensor mounting hole is clean before installation. Pay attention to the air gap between the sensor tip and the trigger wheel (adjustment may be needed; consult your service manual). Tighten the mounting bolt to the specified torque. Ensure the connector is securely fastened and the wiring harness is routed away from hot or moving parts.
