Cylinder Assy

Brand: Mortch Motor
Product Code: MICF0180-6003

Product Viewed: 3

Availability: In Stock

Weight: 3.66kg

0 reviews / Write a review

US$74.16

Shipping To：

More Quotes

CFMoto Cylinder Assembly 493cm³

Replaces OEM 0180-023100 (Old # CF188-023100)

Bore: 87.5mm | Displacement: 500cc
Cylinder Skirt OD: 93.5mm | Mid Height: 100mm | Total Height: 139.5mm

Fits CFMoto 500cc X5 Series ATV and UForce 500 U5 (CF188/CF188-A/CF188-B Engine)

📋 Overview

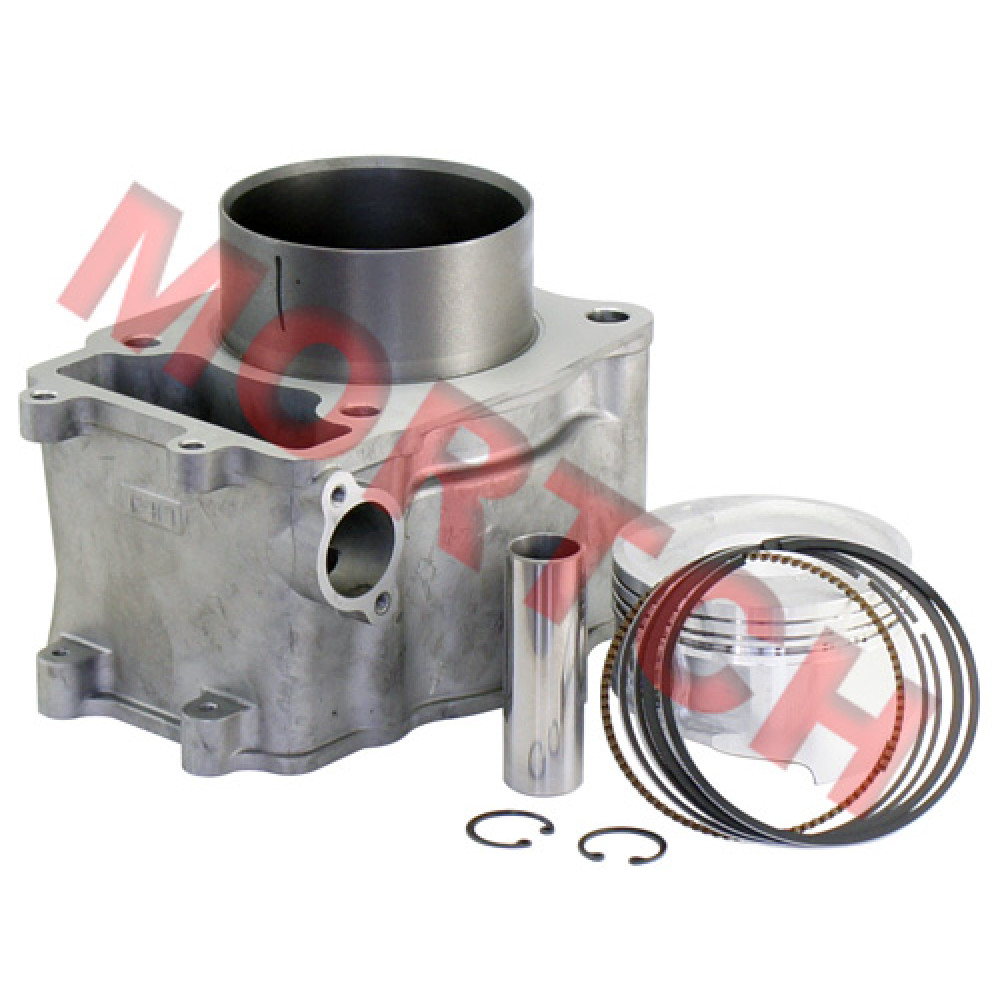

This cylinder assembly is a genuine quality replacement part for CFMoto vehicles, including cylinder body, piston, piston pin, piston rings, and piston pin clips. The cylinder is marked with 493cm³. Directly replaces OEM part number 0180-023100 (old part number CF188-023100), and is compatible with corresponding Linhai part numbers.

Fits CFMoto 500cc X5 series ATV and UForce 500 U5 models equipped with CF188, CF188-A, and CF188-B engines. This assembly provides a complete cylinder replacement solution for the engine.

✨ OEM Quality: All components are manufactured to CFMoto original specifications, ensuring perfect fit and reliable performance.

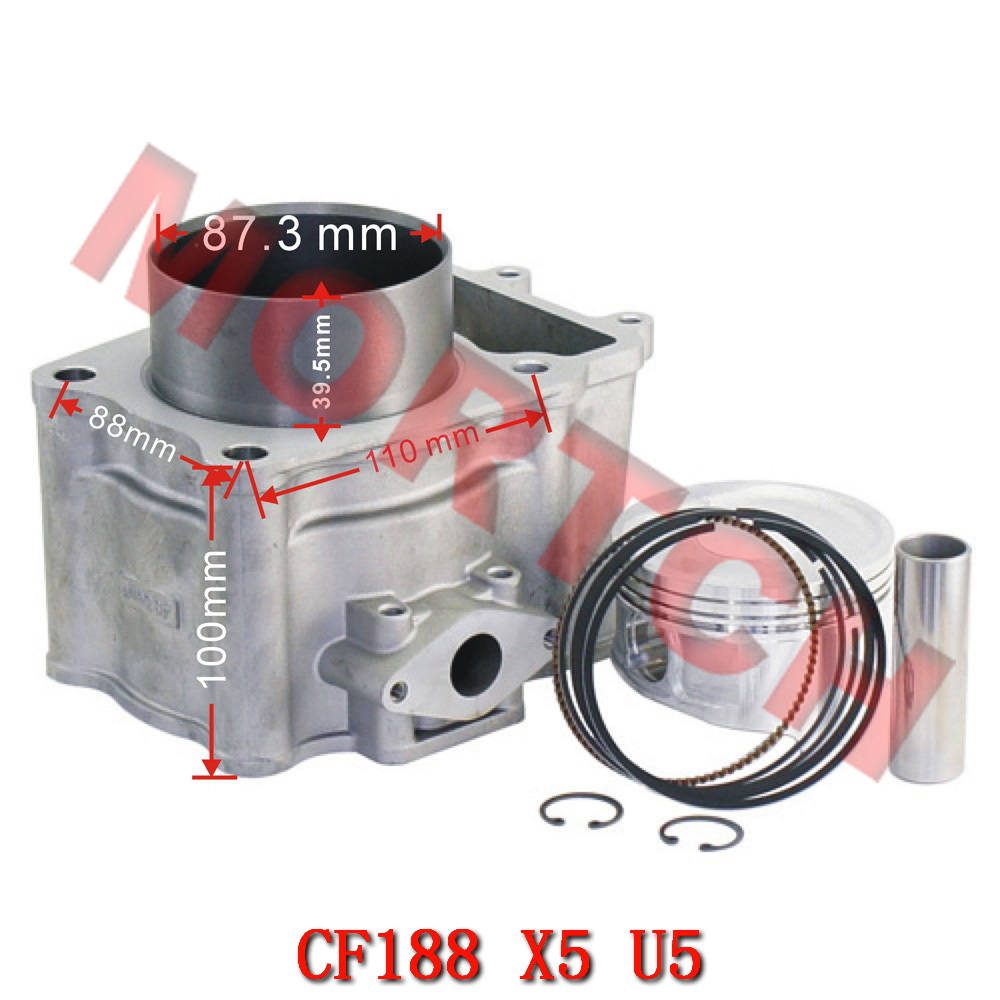

📐 Specifications

Bore Diameter 87.5mm

Displacement 500cc

Cylinder Marking 493cm³

Skirt Outer Diameter 93.5mm

Mid Height 100mm

Total Height 139.5mm

📦 This Assembly Includes

CFMoto Part Numbers

CF188-023100 / 0180-023100	Cylinder (marked 493cm³)
CF188-040003 / 0180-040003-0050	Piston Pin Clips (2 pcs)
CF188-040002 / 0180-040002	Piston Pin
CF188-040004 / 0180-040004	Piston
CF188-0400A0 / 0180-0400A0	Piston Rings (1 set)

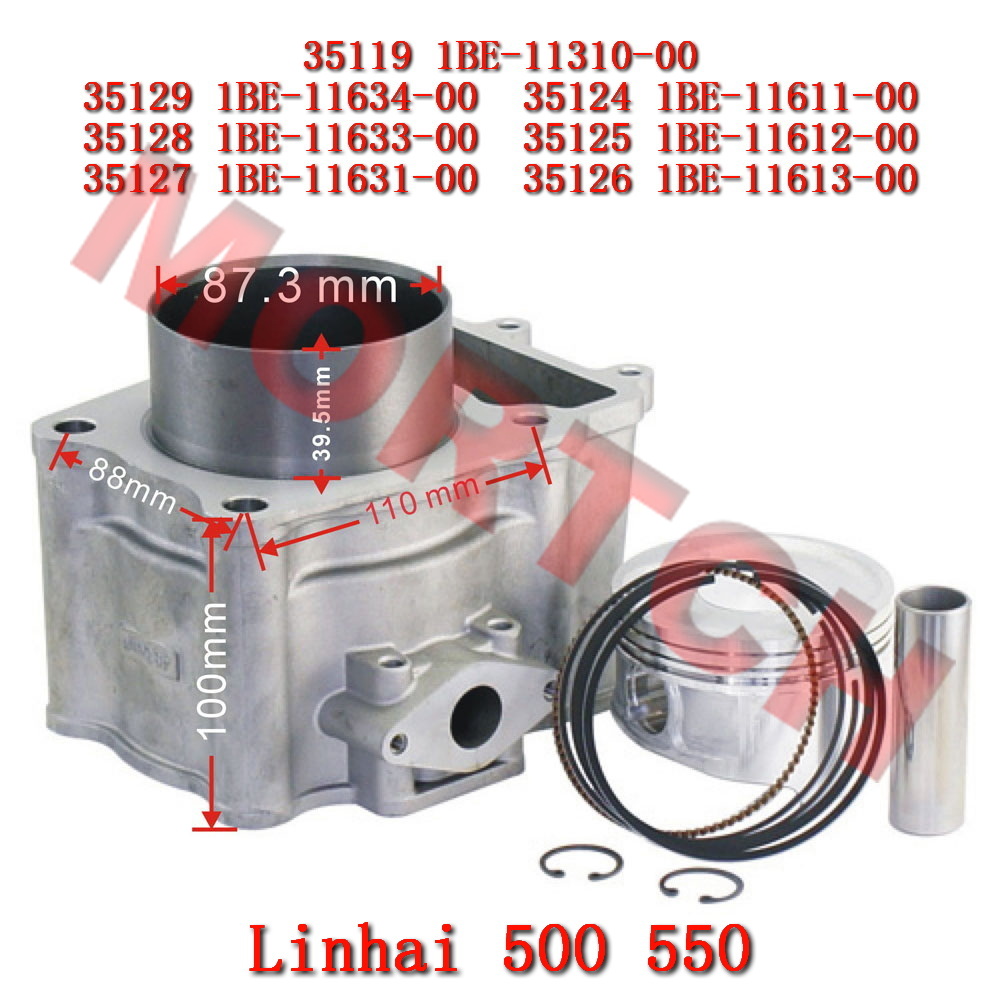

Linhai Part Numbers

35119 / 1BE-11310-00	Cylinder
35129 / 1BE-11634-00	Piston Pin Clips (2 pcs)
35128 / 1BE-11633-00	Piston Pin
35127 / 1BE-11631-00	Piston
35124 / 1BE-11611-00	Top Ring
35125 / 1BE-11612-00	2nd Ring
35126 / 1BE-11613-00	Oil Ring

📌 Component Note: This assembly includes cylinder body, piston, piston pin, piston rings, and piston pin clips - a complete cylinder assembly for single-cylinder engines.

🔧 Compatible Models

ATV CF500 X5 CF188
ATV CF500-2 X5 CF188
ATV CF500-2A X5 CF188
ATV CF500-5 X5 CF188
ATV CF500-5A X5 CF188
ATV CF500-5B X5 CF188-B
ATV CF500-5C X5 CF188-B
ATV CF500-A X5 CF188
ATV CF500-B X5 CF188
ATV CF500-C X5 CF188
ATV CF500-D X5 CF188
ATV CF500-E X5 CF188
UTV CF500-3 UForce 500 U5 CF188-A

📌 Compatibility Note: This cylinder assembly fits the CFMoto 500cc models listed above equipped with CF188, CF188-A, and CF188-B engines, with cylinder marked 493cm³.

⚙️ Features

Complete Assembly: Includes cylinder body and all piston components, providing a complete cylinder repair solution.
OEM Quality: All components manufactured to CFMoto original specifications, ensuring perfect fit.
Precision Machined: Cylinder bore precision honed for proper ring seating and oil control.
Quality Piston: Piston made from high-strength aluminum alloy, designed to OEM compression ratio specifications.
All-Inclusive: Includes piston rings, piston pin, and clips - no need for separate purchases.

✅ Essential for Engine Overhaul: The cylinder is a core engine component subjected to high temperature, pressure, and piston ring friction. When cylinder wear, scoring, piston ring sticking, or piston damage occurs, the cylinder assembly needs replacement. This assembly includes all necessary components to restore compression pressure and engine performance.

⚠️ Verify Before Ordering: Please confirm your model is in the compatibility list and verify cylinder dimensions. Use a new cylinder head gasket during installation and follow the torque specifications in the service manual.
