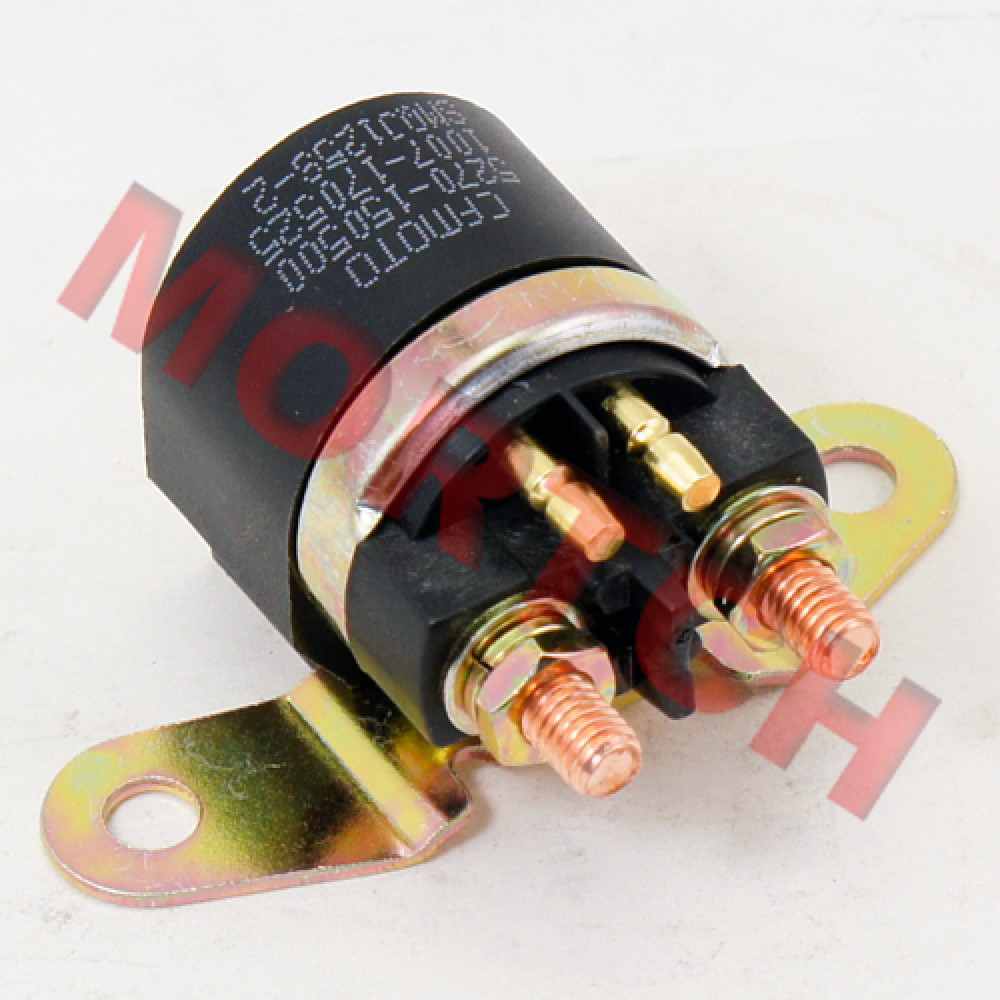

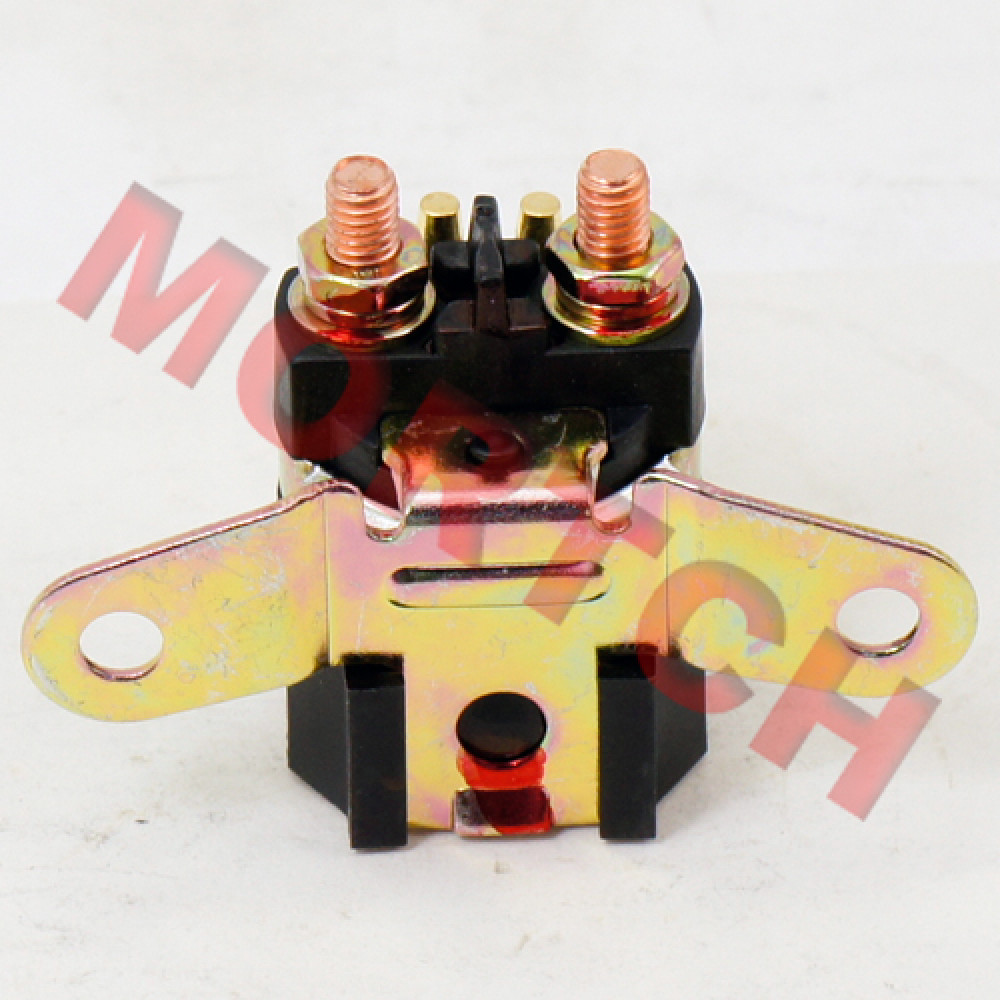

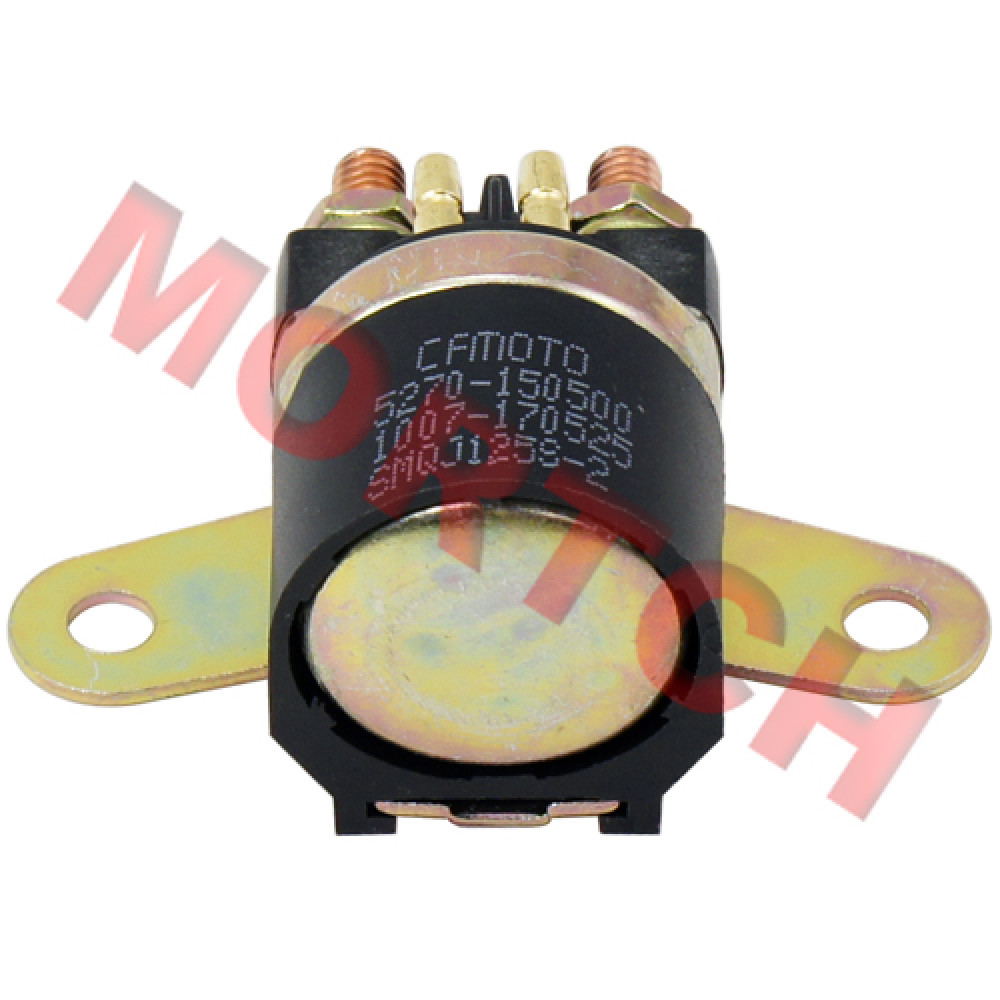

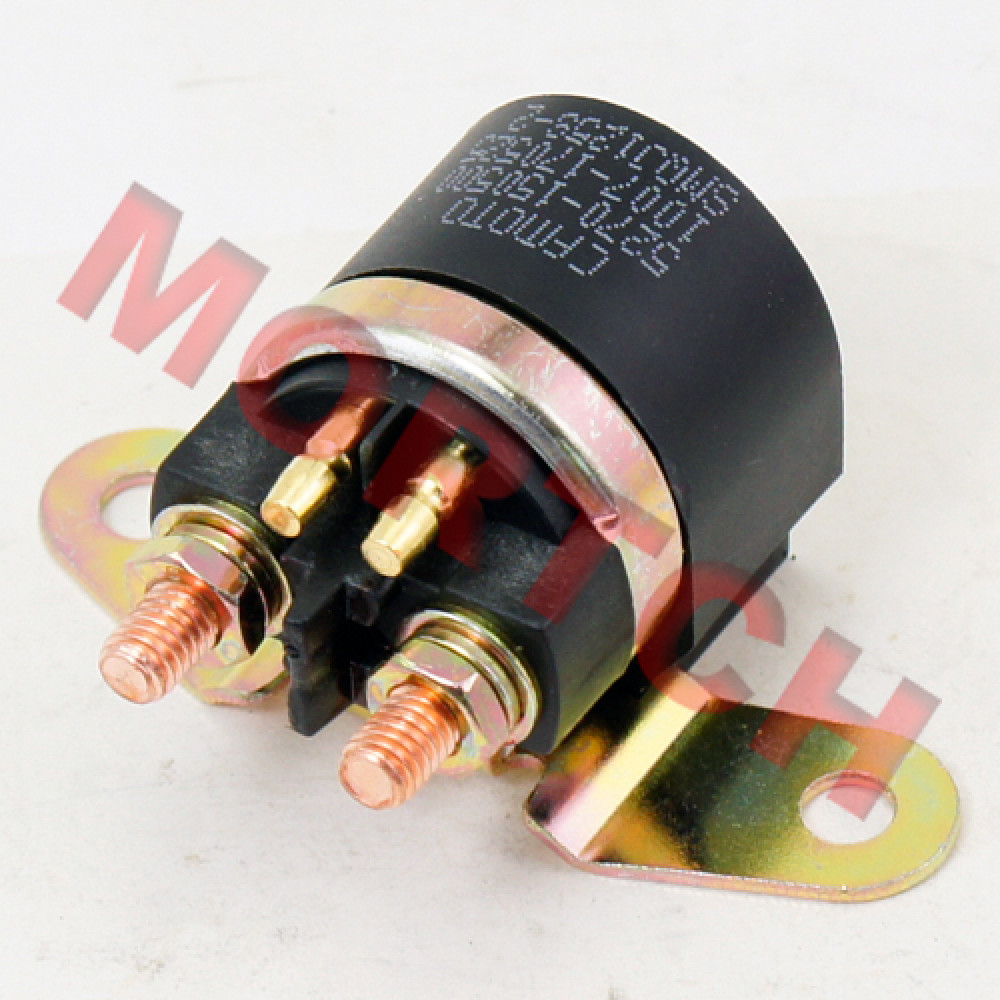

CFMoto Starter Relay

Part Number: 5270-150500

Old Part Number: 7020-150310

Product Type: Starter Relay | Solenoid Switch | Starting System Component

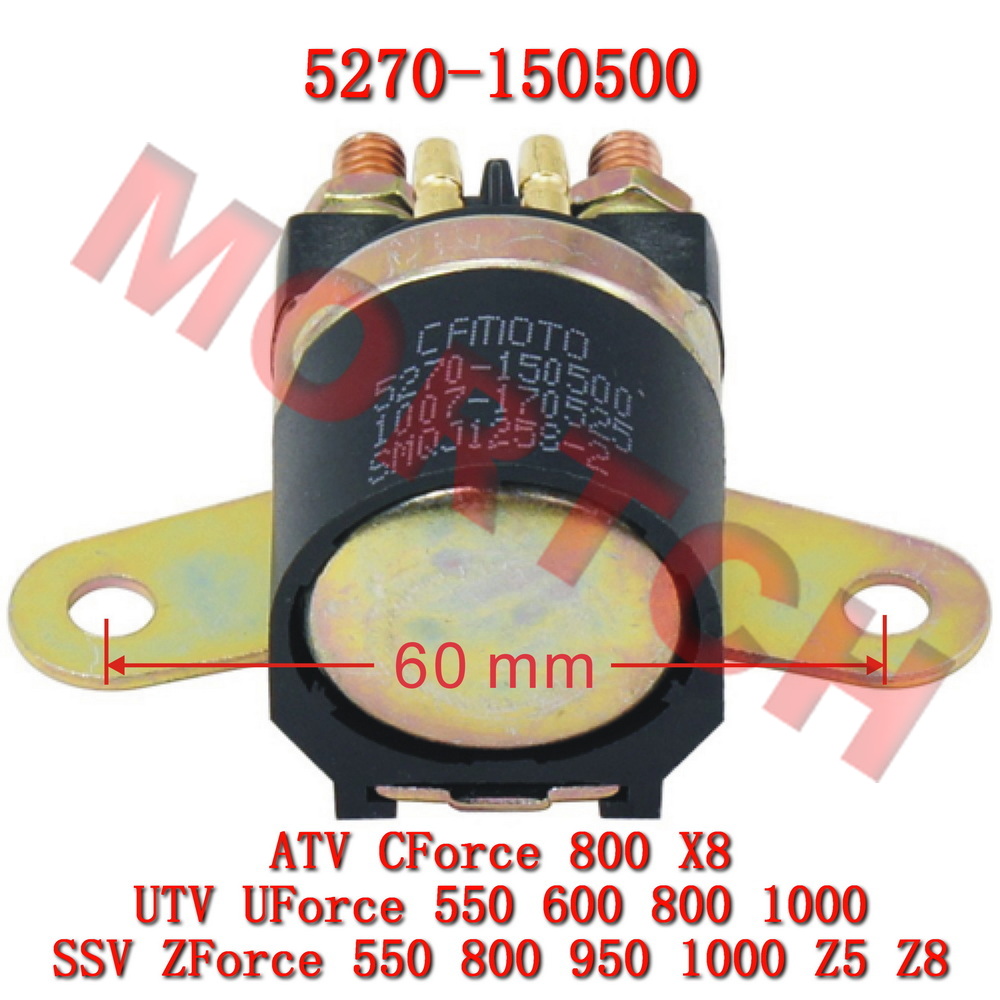

Hole Distance: 66.5mm / 53.5mm

Compatible with various CFMoto ATVs, UTVs, Motorcycles and Scooters, covering 125cc - 1000cc displacements

📋 Product Overview

This product is a genuine CFMoto starter relay, part number 5270-150500 (old part number 7020-150310). The starter relay is an important component of the starting system, installed between the battery and starter motor to control the high current to the starter motor. When the ignition switch is turned to the start position, the relay coil energizes, creating a magnetic field that closes the contacts, allowing high current from the battery to flow to the starter motor to crank the engine. This relay features compact size, high contact capacity, and excellent reliability.

Specifications:

Mounting Hole Distance: 66.5mm / 53.5mm
Coil Resistance: 3Ω～5Ω
Contact Capacity: Suitable for 12V starting systems

🔧 Genuine Quality Assurance: Manufactured strictly according to CFMoto original technical standards. The coil resistance, contact capacity, and mounting dimensions are identical to the OEM part, ensuring perfect match and reliable starting performance.

🔧 Starter Relay Testing Procedure

● Put DC 12V between positive and negative terminal. Use multimeter to check if there is continuity between 2 contacts.

● If multimeter clicks, there is continuity between contacts.

● If DC 12V is removed, no continuity remains between contacts.

● If both above 2 items are ok, it indicates the relay is good. Turn multimeter to DIODE mode.

⚠️ CAUTION: The voltage loaded between terminals cannot exceed 1 minutes, otherwise, starter relay may overheat or burn.

● Use multimeter to measure starter relay coil resistance, if the reading is out of specification, replace a new one.

● Turn multimeter to 1×10Ω range.

Starter Relay Coil Resistance: 3Ω～5Ω

📐 Specifications

Part Number: 5270-150500

Old Part Number: 7020-150310

Product Type: Starter Relay

Mounting Hole Distance: 66.5mm / 53.5mm

Coil Resistance: 3Ω～5Ω

Voltage: 12V DC

🔧 Complete Compatible Models List

🏍️ ATV Series

ATV CF800-2 X8
ATV CF800ATR CForce 800
ATV CF800ATR-2 CForce 800
ATV CF800AU-2B CForce 800

🏍️ Motorcycle Series

MOTORCYCLE CF125
MOTORCYCLE CF125-10(CN4)
MOTORCYCLE CF125-10(INTL)
MOTORCYCLE CF125-10F(EU5)
MOTORCYCLE CF125-10US
MOTORCYCLE CF125-2 ST Papio
MOTORCYCLE CF125-3 ST Papio
MOTORCYCLE CF125-3A ST Papio
MOTORCYCLE CF125-3A(CN4)
MOTORCYCLE CF125-3A(INTL)
MOTORCYCLE CF125-3US
MOTORCYCLE CF125-8(CN4)
MOTORCYCLE CF125-8(INTL)
MOTORCYCLE CF125-8F(EU5)
MOTORCYCLE CF125-8US

🛵 Scooter Series

SCOOTER CF125T-25
SCOOTER CF250T-8

🏎️ SSV Series (ZForce)

SSV CF1000SU-3 ZForce 950 TRAIL
SSV CF1000SU-3A ZForce 950 SPORT
SSV CF1000SU-D ZForce 950 H.O.EX/ZForce 1000 Sport R
SSV CF1000SU-D(AU) ZForce 950 H.O.EX/ZForce 1000 Sport R
SSV CF1000SU-D(RU) ZForce 950 H.O.EX/ZForce 1000 Sport R
SSV CF1000SU-D(ST) ZForce 950 H.O.EX/ZForce 1000 Sport R
SSV CF1000SU-E ZForce 950 H.0.SPORT
SSV CF1000SZ-3 ZForce 950 TRAIL
SSV CF1000SZ-3(CA) ZForce 950 TRAIL G2
SSV CF1000SZ-3(US) ZForce 950 TRAIL
SSV CF1000SZ-3A ZForce 950 SPORT
SSV CF1000SZ-3A(AU) ZForce 950 SPORT
SSV CF1000SZ-3A(CA) ZForce 950 Sport G2
SSV CF1000SZ-3A(ST) ZForce 950 SPORT
SSV CF1000SZ-3A(US) ZForce 950 SPORT
SSV CF1000SZ-D ZForce 950 HO EX
SSV CF1000SZ-D(CA) ZForce 1000
SSV CF1000SZ-D(US) ZForce 950 HO
SSV CF1000SZ-E ZForce 950 HO Sport
SSV CF1000SZ-E(CA) ZForce 1000
SSV CF1000SZ-E(US) ZForce 950 HO
SSV CF1000US ZForce 1000EX
SSV CF1000US(AU) ZForce 1000EX
SSV CF1000US(RU) ZForce 1000EX
SSV CF1000US-2 ZForce 1000
SSV CF1000US-2(CA) ZForce 1000
SSV CF1000US-2(US) ZForce 1000
SSV CF1000US-A ZForce 950 Sport/ZForce 1000 Sport
SSV CF1000US-A(CA) ZForce 950 Sport/ZForce 1000 Sport
SSV CF1000US-A(US) ZForce 950 Sport/ZForce 1000 Sport
SSV CF1000UTR-2 ZForce 1000
SSV CF1000UTR-2(GD) ZForce 1000
SSV CF1000UTR-6(T1b) ZForce 1000
SSV CF1000UTR-6(T1b)(GD) ZForce 1000
SSV CF1000UTR-6(T1b)(HLG) ZForce 1000
SSV CF1000UTR-6(T1b)(SS) ZForce 1000
SSV CF1000UTR-B ZForce 1000 Sport
SSV CF1000UTR-B(GD) ZForce 1000 Sport
SSV CF1000UTR-B(HLG) ZForce 1000 Sport
SSV CF1000UTR-B(SS) ZForce 1000 Sport
SSV CF1000UTR-C ZForce 1000 Sport
SSV CF1000UTR-C(GD) ZForce 1000 Sport
SSV CF1000UTR-C(HLG) ZForce 1000 Sport
SSV CF1000UTR-C(SS) ZForce 1000 Sport
SSV CF500US ZForce 500 Trail
SSV CF500US(CA) ZForce 500 Trail
SSV CF500US(US) ZForce 500 Trail
SSV CF500US-EX ZForce 550EX
SSV CF500UTR(T1a) ZForce 550EX
SSV CF500UTR(T1a)(SS) ZForce 550EX
SSV CF500UTR(T1b) ZForce 550EX
SSV CF500UTR(T1b)(GD) ZForce 550EX
SSV CF800 ZForce 800EX
SSV CF800(CA) ZForce 800EX
SSV CF800(US) ZForce 800EX
SSV CF800SU-2 ZForce 800 Trail
SSV CF800SZ-2 ZForce 800 Trail
SSV CF800SZ-2(AU) ZForce 800 Trail
SSV CF800SZ-2(CA) ZForce 800 Trail G2
SSV CF800SZ-2(ST) ZForce 800 Trail
SSV CF800SZ-2(US) ZForce 800 Trail
SSV CF800US-A ZForce 800 Trail
SSV CF800US-A(CA) ZForce 800 Trail
SSV CF800US-A(US) ZForce 800 Trail
SSV CF800UTR ZForce Z8-EX

🚜 UTV Series (UForce)

UTV CF1000UTR-3 UForce 1000
UTV CF1000UTR-3(GD) UForce 1000
UTV CF1000UTR-3(HLG) UForce 1000
UTV CF1000UTR-3(SS) UForce 1000
UTV CF1000UTR-5 UForce 1000 XL
UTV CF1000UTR-5(GD) UForce 1000 XL
UTV CF1000UTR-5(HLG) UForce 1000 XL
UTV CF1000UU UForce 1000
UTV CF1000UU(AU) UForce 1000 Hunter
UTV CF1000UU(CA) UForce 1000
UTV CF1000UU(RU) UForce 1000
UTV CF1000UU(ST) UForce 1000
UTV CF1000UU(US) UForce 1000
UTV CF1000UU-2 UForce 1000 XL
UTV CF1000UU-2(AU) UForce 1000 XL
UTV CF1000UU-2(ST) UForce 1000 XL
UTV CF1000UU-2(US) UForce 1000 XL
UTV CF1000UZ(CA) UForce 1000
UTV CF1000UZ(US) UForce 1000
UTV CF1000UZ-2(CA) UForce 1000 XL
UTV CF1000UZ-2(US) UForce 1000 XL
UTV CF500UTR-2 UForce 550
UTV CF500UTR-2(GD) UForce 550
UTV CF500UU UForce 550
UTV CF500UU(CA) UForce 500
UTV CF500UU(US) UForce 500
UTV CF600UTR(T1b) UForce 600
UTV CF600UTR(T1b)(GD) UForce 600
UTV CF600UTR(T1b)(HLG) UForce 600
UTV CF600UTR(T1b)(SS) UForce 600
UTV CF600UU UForce 600
UTV CF600UU(AU) UForce 600 Hunter
UTV CF600UU(ST) UForce 600
UTV CF600UU(US) UForce 600
UTV CF600UZ(CA) UForce 600
UTV CF600UZ(US) UForce 600
UTV CF800-3 UForce 800
UTV CF800-3(CA) UForce 800
UTV CF800-3(US) UForce 800
UTV CF800UTR-2 UForce 800
UTV CF800UTR-2(GD) UForce 800
UTV CF800UTR-2(HLG) UForce 800
UTV CF800UTR-2(SS) UForce 800
UTV CF800UU-A UForce 800
UTV CF800UU-A(AU) UForce 800
UTV CF800UU-A(HLG) UForce 800

👮 Police Motorcycles

POLICE MOTORCYCLE CF1000US-J ZForce 1000
POLICE MOTORCYCLE CF1000UU-2(Police) UForce 1000 XL
POLICE MOTORCYCLE CF800(Z8) ZForce 800EX

📌 Compatibility Note: This starter relay fits all CFMoto models listed above. Different suffixes indicate configuration or regional variations; this product remains compatible. Please verify based on your vehicle model. If your vehicle is not listed, please contact customer service for confirmation.

⚙️ Product Features

OEM Matching: Part number 5270-150500 corresponds exactly to the CFMoto official parts system, with old part number 7020-150310 for reference, ensuring direct replacement.
High Contact Capacity: Designed to handle the high current of the starter motor for reliable starting.
Standard Coil Resistance: 3Ω～5Ω coil resistance meets OEM specifications.
Dual Hole Spacing: Offers 66.5mm and 53.5mm mounting hole distances for compatibility with various models.
Sealed Design: Good sealing against dust and moisture for long-term reliable operation.

🔧 Important Installation Note: The starter relay is an important starting system component. Correct installation is critical. Professional installation by an experienced technician is recommended. Key considerations:

Disconnect the battery negative terminal before installation to prevent short circuits.
Clean the mounting area and ensure the relay is securely fastened.
Connect the terminals according to the original wiring diagram, ensuring correct connections.
Check that all connectors are securely fastened after installation.
Test the starting function after installation to ensure the starter motor operates properly.

⚠️ Ordering Information: This product is a starter relay, part number 5270-150500 (old part number 7020-150310), hole distance 66.5mm/53.5mm. Minor differences may exist between different years or batches. If your vehicle is not listed above, or if you have questions about compatibility, please contact customer service with your VIN or engine model for confirmation.

🔧 Compatibility Notice

Please verify that this part fits your specific vehicle model and year. Many vehicles share similar names but use different components depending on year or market region.
We strongly recommend cross-checking with your vehicle's owner's manual or contacting us for confirmation before placing your order.
