Piston Assy

Brand: Mortch Motor
Product Code: MICF0600-0400B0

Product Viewed: 3

Availability: In Stock

Weight: 0.53kg

0 reviews / Write a review

US$37.00 1 SOLD

Shipping To：

More Quotes

CFMoto Piston Assembly

Fits CFMoto 600cc/625cc Engines

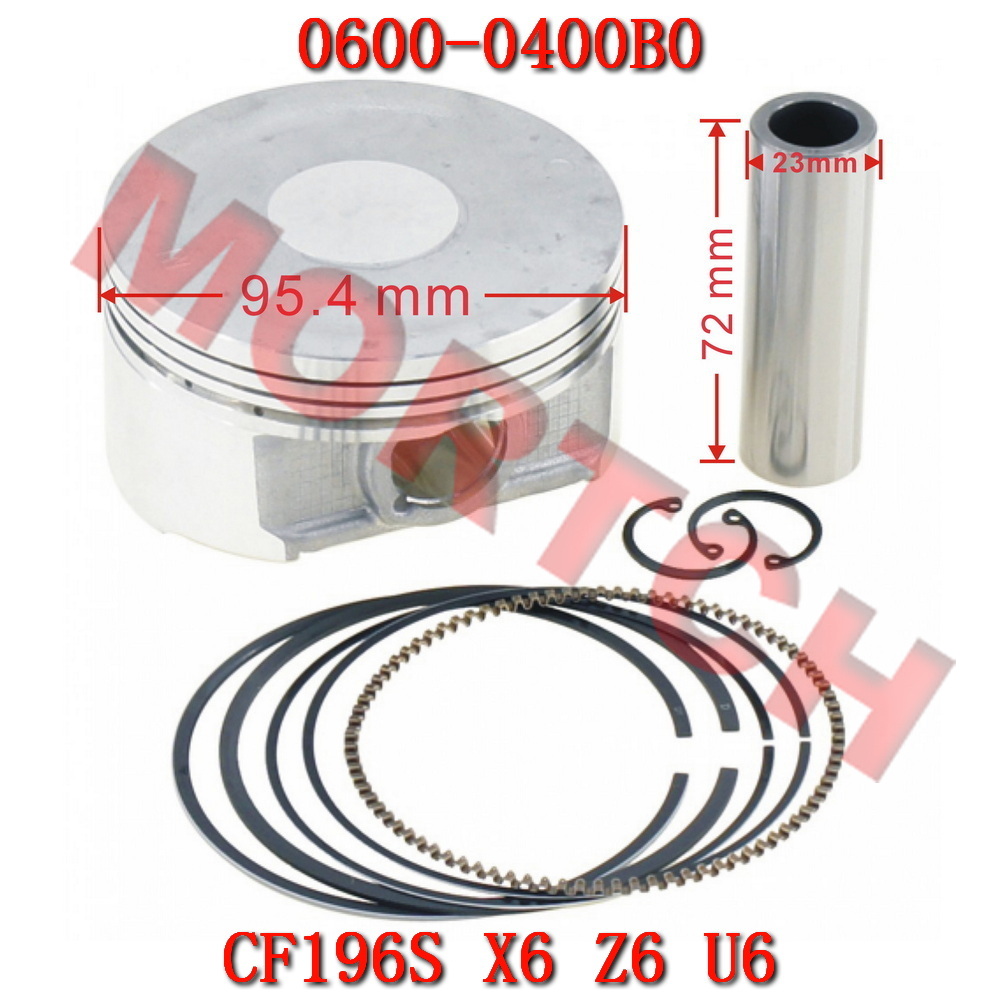

Diameter: 96mm | Height: 51.5mm | Piston Pin: 23×72mm

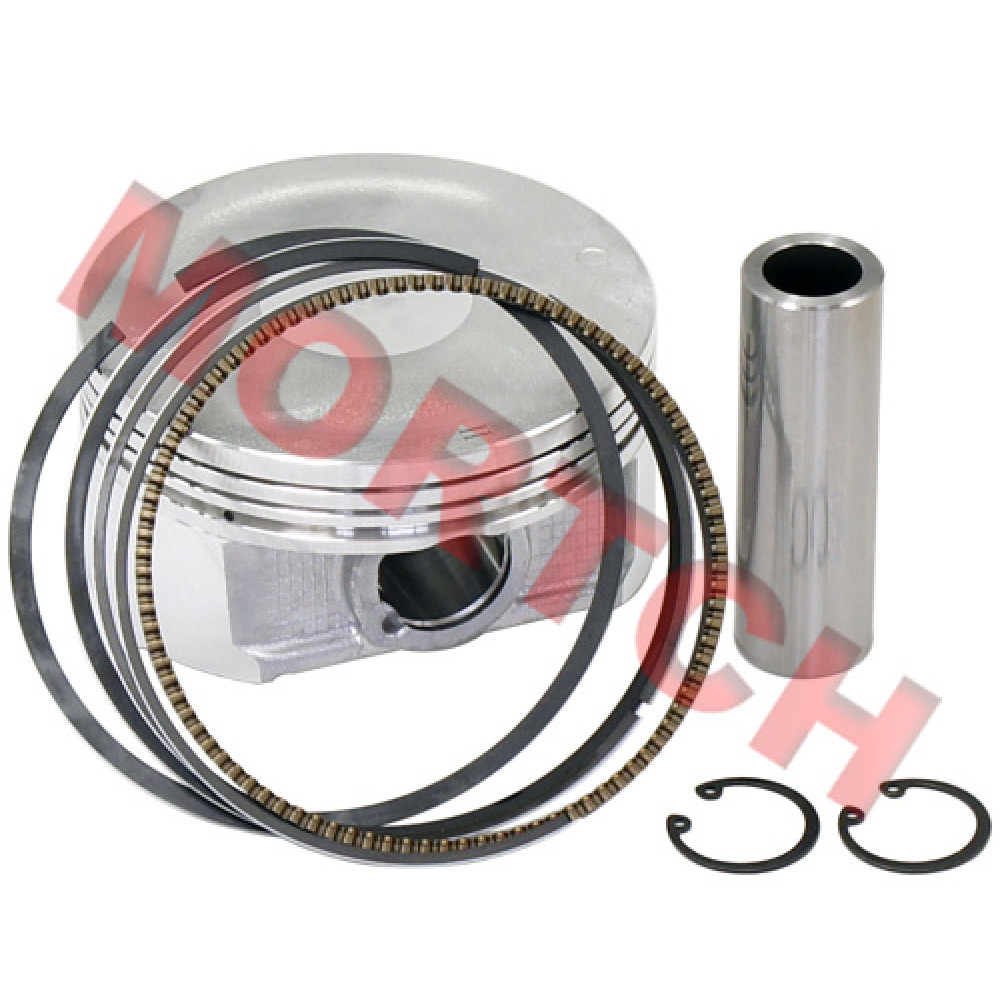

Includes piston, piston rings, piston pin, and circlips. Fits X6, UForce U6, Z6 models.

📋 Overview

This piston assembly is a high-quality OEM replacement for CFMoto, including the piston, piston rings, piston pin, and circlips. The piston is one of the core engine components, reciprocating within the cylinder, enduring tremendous pressure from combustion, and transferring power to the crankshaft via the connecting rod.

Pistons operate under high temperature, high pressure, and high speed conditions, making them prone to wear, carbon buildup, scoring, or even cracking. When the engine exhibits symptoms such as oil burning, power loss, or abnormal noise, the piston assembly typically needs inspection or replacement.

✨ OEM Quality: All components meet OEM specifications, manufactured from high-quality aluminum alloy and alloy steel, ensuring dimensional accuracy, strength, and service life.

🔧 Assembly Components

Old Part Number	New Part Number	Component
CF188-040003	0180-040003-0050	Piston Pin Clip
CF188-040002	0180-040002	Piston Pin
196S-040004	0600-040004	Piston
196S-0400A0	0600-0400A0	Piston Ring

📌 Component Note: The above table lists all components included in this assembly. This is a complete, ready-to-install assembly.

📐 Specifications

Piston Diameter 96 mm

Piston Height 51.5 mm

Piston Pin Size 23 × 72 mm

⚠️ Important Installation Note:

The mark on the piston must show to the exhaust side of the cylinder. Always verify the direction mark on the piston crown aligns with the exhaust side of the cylinder. Incorrect installation can cause severe engine damage.

🔧 Applicable Models

🏍️ 196S (600/625cc) – X6, UForce U6, Z6

ATV CF600-B X6
ATV CF600-C X6
ATV CF625-2 X6
ATV CF625-2A X6
ATV CF625-B X6
ATV CF625-C X6
UTV CF600-5 UForce U6
SSV CF600-3 Z6
SSV CF600-6 Z6
SSV CF625-3 Z6
SSV CF625-6 Z6

📌 Compatibility Note: This piston assembly fits the 196S series 600cc/625cc engines listed above, primarily used in X6, UForce U6, and Z6 models. Please verify your engine model before ordering.

⚙️ Product Features

Complete OEM Assembly: Includes piston, piston rings, piston pin, and circlips – all OEM specification components for a perfect match.
High-Quality Aluminum Piston: Made from high-strength aluminum alloy (forged or cast), offering light weight, high strength, and excellent thermal conductivity.
Precision Piston Rings: Rings are made from quality alloy cast iron with good elasticity and wear resistance, ensuring proper sealing and oil control.
High-Strength Piston Pin: The piston pin features a hardened surface for excellent wear resistance, capable of withstanding tremendous alternating loads.
Essential for Engine Overhauls: Replacing the piston assembly is a critical step in restoring engine performance during a major rebuild.

✅ Piston Replacement Tip: When replacing pistons, it is recommended to also replace the head gasket, piston rings, and connecting rod bearings. When installing piston rings, pay attention to the ring orientation and end gap positions. Ensure circlips are fully seated in their grooves. This work is recommended to be performed by a professional technician.

⚠️ Critical Installation Note: The mark on the piston must face the exhaust side of the cylinder! Always verify the direction before installation. Incorrect installation will cause severe engine damage.

🔧 Compatibility Notice

Please verify that this part fits your specific vehicle model and year. Many vehicles share similar names but use different components depending on year or market region.
We strongly recommend cross-checking with your vehicle's owner's manual or contacting us for confirmation before placing your order.

📄 Product Disclaimer

Product images, measurements, and descriptions are for reference only. Slight variations in color or appearance may occur due to manufacturing batches or photography lighting—functional specifications remain identical to the ordered part.
Professional installation is mandatory. Mortch Motor assumes no liability for damages, injuries, or losses resulting from improper installation, misuse, unauthorized modification, or abnormal operation.
