Oil Seal 34.5619/13

Brand: Mortch Motor
Product Code: MICF0180-331007

Product Viewed: 1

Availability: 144

Weight: 0.03kg

0 reviews / Write a review

US$2.93 4 SOLD

Shipping To：

More Quotes

Qty

Buy Now

Tell a Friend Ask a Question

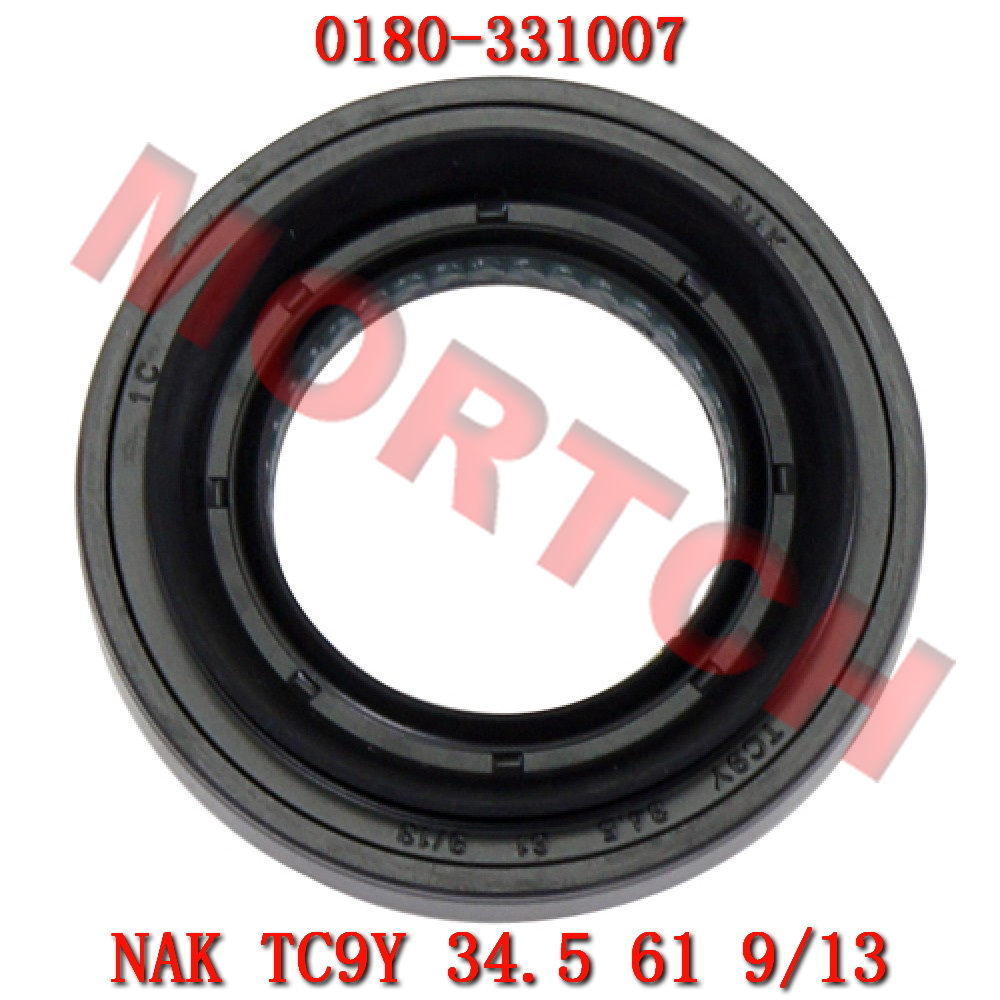

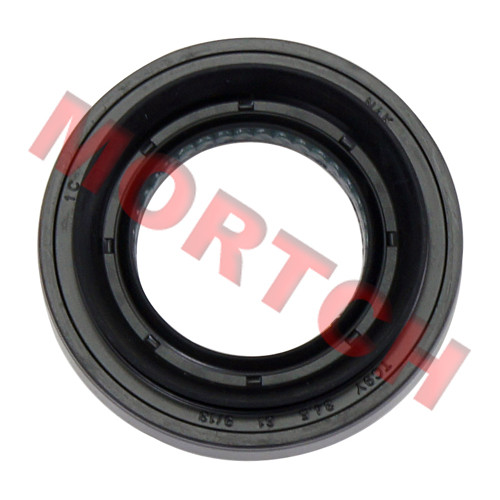

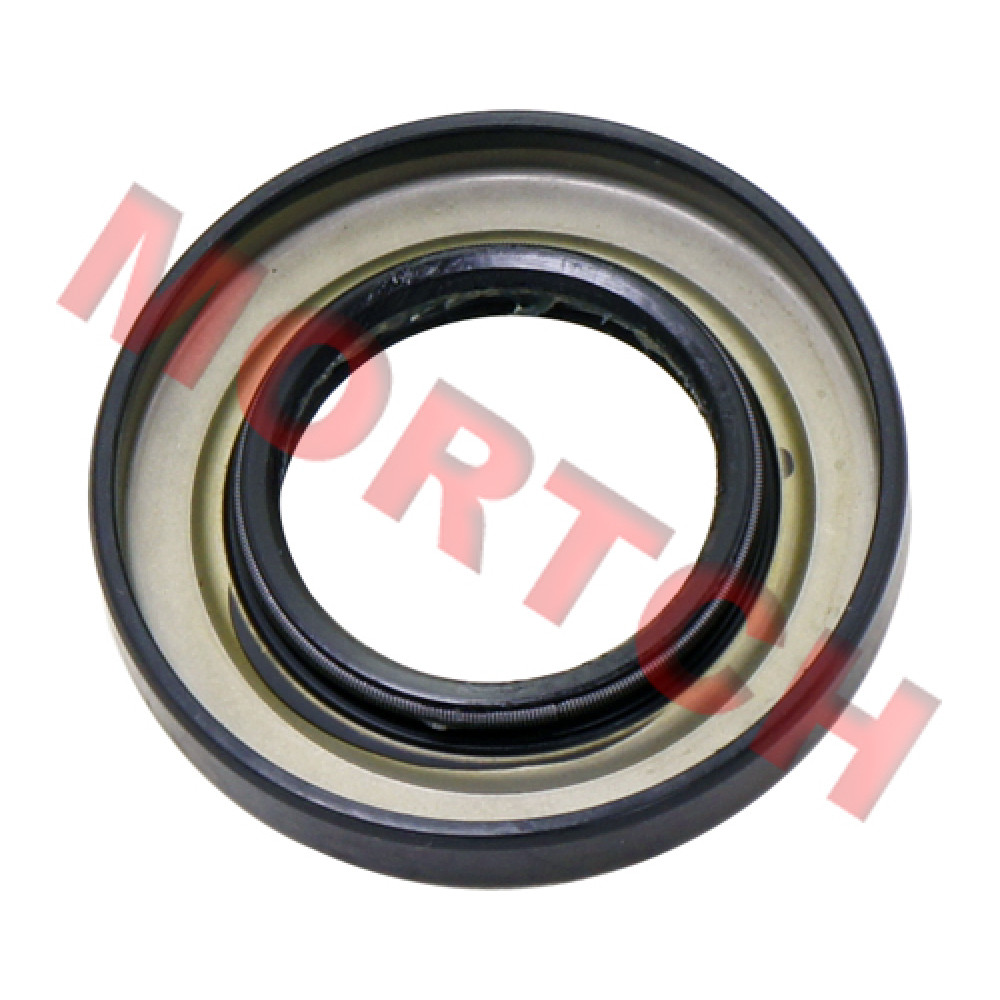

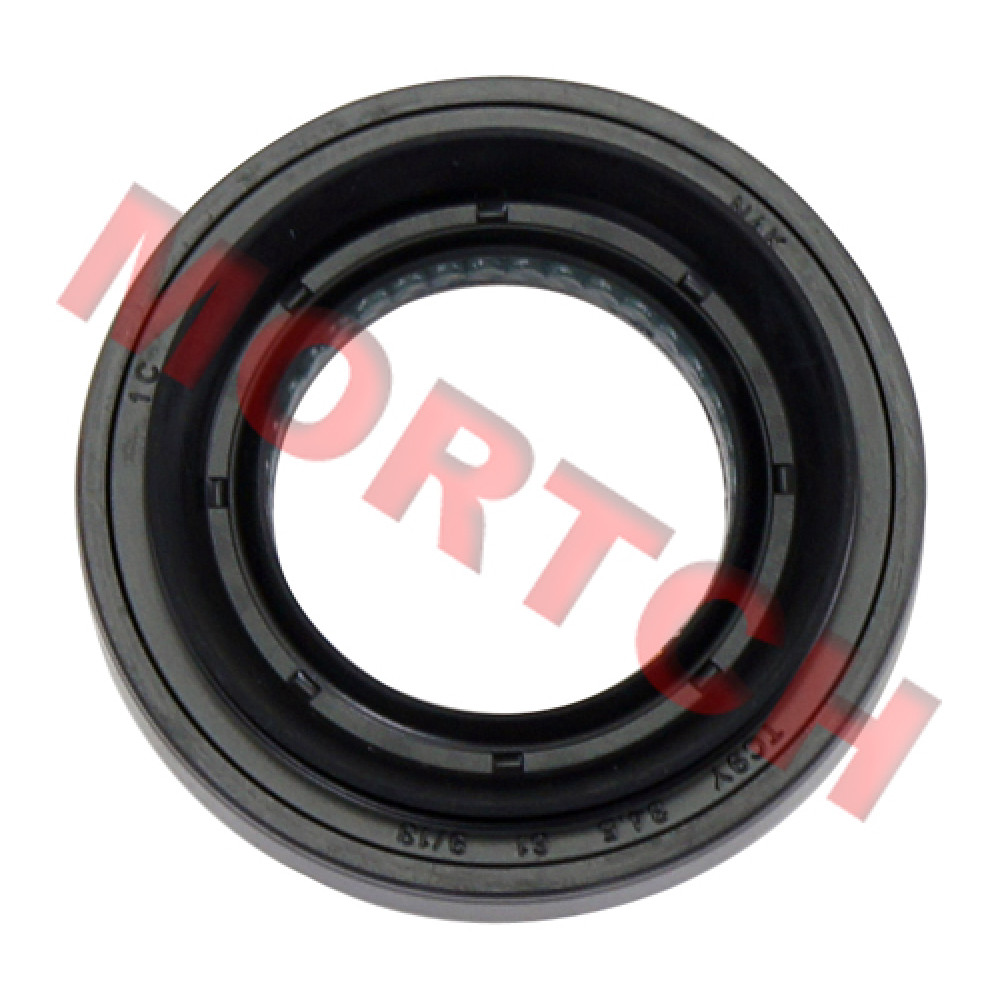

CF Moto Oil Seal 34.5x61x9/13

Part Number: 0JWA-062302 / 0180-331007

Product Type: Seal | Oil Seal

Specification: 34.5mm x 61mm x 9/13mm (ID x OD x Height/Lip Height)

OEM-spec oil seal for rotating shaft sealing in critical engine or drivetrain components, preventing oil leakage and ingress of contaminants. Dual-lip design provides more reliable sealing performance.

📋 Product Overview

This product is an OEM-quality CF Moto oil seal, corresponding to part numbers 0JWA-062302 and 0180-331007. Oil seals are critical sealing components in assemblies such as engines, transmissions, and axles, providing dynamic sealing for rotating shafts to prevent oil leakage and block contaminants like dust and mud.

The seal dimensions are 34.5mm (ID) x 61mm (OD) x 9/13mm (total height/lip height). It is manufactured from high-quality nitrile or fluorocarbon rubber, offering excellent oil resistance, wear resistance, and high/low temperature performance. The metal case provides sufficient support strength, and the garter spring ensures consistent lip contact pressure on the shaft for long-term reliable sealing. Produced strictly to CF Moto original technical standards, ensuring accurate fit and reliable performance.

🔧 OEM Quality Assurance: Manufactured strictly to CF Moto original technical standards. Consistent with genuine parts in material, dimensional accuracy, and mechanical properties, ensuring perfect fit and reliable sealing effect.

📐 Specifications

Part Number:

0JWA-062302

Primary Number

Part Number:

0180-331007

Alternate / Cross Reference

Specification:

34.5 x 61 x 9/13 mm

ID x OD x Height/Lip Height

Product Name: Rotary Shaft Lip Seal (Oil Seal)
Material: High-quality Rubber + Metal Case + Garter Spring
Type: Dual Lip with Dust Lip
Application: Engine / Transmission / Axle

🔧 Compatible Models / Components (Individual List)

This oil seal (0JWA-062302 / 0180-331007) fits the following CF Moto models and engine assemblies:

🏍️ ATV 400cc Series - CForce 400/450 / IRON / TERROX

ATV CF400ATR CForce 450
ATV CF400ATR-2L(T3a) CForce 450L
ATV CF400ATR-2L(T3b) CForce 450L
ATV CF400ATR-2S(T3a) CForce 450S
ATV CF400ATR-2S(T3b) CForce 450S
ATV CF400ATR-5L(T3b) IRON MAX T3
ATV CF400ATR-5S(T3b) IRON T3
ATV CF400ATR-L CForce 450L
ATV CF400AU CForce 400S/450S
ATV CF400AU-L CForce 400L/450L

🏍️ ATV 500cc Series - CForce 500/520/550 / X5 / COBALT / GOES

ATV CF500 X5
ATV CF500-2 X5
ATV CF500-2A X5
ATV CF500-5 X5
ATV CF500-5A X5
ATV CF500-5B X5
ATV CF500-5C X5
ATV CF500-A X5
ATV CF500ATR CForce 520
ATV CF500ATR-2L(T3a) CForce 520L
ATV CF500ATR-2L(T3b) CForce 520L
ATV CF500ATR-2S(T3a) CForce 520S
ATV CF500ATR-2S(T3b) CForce 520S
ATV CF500ATR-3 CForce 520
ATV CF500ATR-3(T3a) CForce 520
ATV CF500ATR-5L(T3b) COBALT MAX T3
ATV CF500ATR-5S(T3b) COBALT T3
ATV CF500ATR-A CForce 550
ATV CF500AU-6L CForce 550
ATV CF500AU-7L CForce 520L
ATV CF500AU-7S CForce 520S
ATV CF500-B X5
ATV CF500-C X5
ATV CF500-D X5
ATV CF500-E X5
ATV GOES500
ATV GOES500-A

🏍️ ATV 600/625cc Series - CForce 600/625 / X6

ATV CF600ATR-L(T3a) CForce 600
ATV CF600ATR-L(T3b) CForce 600
ATV CF600AU-L(INTERNATIONAL) CForce 600
ATV CF600AU-L CForce 600
ATV CF600-B X6
ATV CF600-C X6
ATV CF625-2 X6
ATV CF625-2A X6
ATV CF625-B X6
ATV CF625-C X6

🏍️ ATV 800cc Series - CForce 800 / X8

ATV CF800-2 X8
ATV CF800ATR CForce 800
ATV CF800ATR-2 CForce 800

⚙️ ENGINE Assemblies

ENGINE 191Q CForce 450
ENGINE 191R FOR CF500AU-7S&7L CForce 550
ENGINE 191R-U550 UForce 550
ENGINE 191R-X550 CForce 550
ENGINE 191R-Z550 ZForce 550
ENGINE 2V91W(U8) U8 800
ENGINE 2V91W(X8) X8 800
ENGINE 2V91W(Z8) Z8 800
ENGING(ONLY FOR ENGINE) 2V91W(X8) (Sales Special)
ENGING(ONLY FOR ENGINE) 2V91W (Aipusidun)

🚓 POLICE MOTORCYCLE

POLICE MOTORCYCLE CF800(Z8) ZForce 800EX

🏎️ SSV Models - ZForce / Z6

SSV CF500US ZForce 500 Trail
SSV CF500US-EX ZForce 550EX
SSV CF600-3 Z6
SSV CF600-6 Z6
SSV CF625-3 Z6
SSV CF625-6 Z6
SSV CF800 ZForce 800EX
SSV CF800US-A ZForce 800 Trail

🚙 UTV Models - UForce

UTV CF500-3 UForce 500 U5
UTV CF500UU UForce 550
UTV CF600-5 UForce U6
UTV CF800-3 UForce 800
UTV CF800UU-A UForce 800

📌 Fitment Note: This oil seal (0JWA-062302 / 0180-331007) fits the engine, transmission, or axle applications of the CF Moto models listed above. Due to the variety of models and model years, the specific installation location may vary. If your specific model or engine type is not listed, please contact our customer service with the VIN or engine number for verification.

⚙️ Product Features

OEM Match: Dimensions and specifications fully comply with CF Moto original requirements.
Dual Lip Design: Main lip with spring for reliable sealing, auxiliary lip for dust and contaminant exclusion.
Quality Material: Made of oil-resistant, high-temperature resistant, and aging-resistant premium rubber.
Precision Manufacturing: Smooth lip finish and precise dimensions ensure perfect fit on the rotating shaft.
Metal Case: Sturdy and durable, maintains shape stability during installation.
Critical Sealing Component: Prevents oil leakage, extends engine and drivetrain life.
Direct Installation: Remove old part and directly replace; quick and convenient.

✅ Installation Tip: Before installation, inspect the shaft surface for smoothness, free of burrs and rust. Apply a small amount of oil to the new seal lip. Use a suitable driver or socket to press the seal evenly into the housing bore, avoiding direct hammering which may cause deformation or damage. Ensure the seal is fully seated and not tilted. Pay attention to installation direction; the spring side should face the oil side.

⚠️ Important Notice: This product is the CF Moto oil seal, part numbers 0JWA-062302 / 0180-331007, specification 34.5x61x9/13mm. Fits the CF Moto ATV, SSV, UTV models and related engine assemblies listed above. Minor differences may exist between model years or production batches. If your specific model is not listed, please contact our customer service with the VIN to verify compatibility. Images are for reference only; actual product may vary slightly due to batch differences.

🔧 Compatibility Notice

Please verify that this part fits your specific vehicle model and year. Many vehicles share similar names but use different components depending on year or market region.
We strongly recommend cross-checking with your vehicle's owner's manual or contacting us for confirmation before placing your order.

📄 Product Disclaimer

Product images, measurements, and descriptions are for reference only. Slight variations in color or appearance may occur due to manufacturing batches or photography lighting—functional specifications remain identical to the ordered part.
Professional installation is mandatory. Mortch Motor assumes no liability for damages, injuries, or losses resulting from improper installation, misuse, unauthorized modification, or abnormal operation.

💰 Import Duties & Taxes

All listed prices EXCLUDE shipping costs, import duties, taxes, and customs clearance fees. These charges (if applicable) are determined and collected by your local customs authority and are solely the buyer's responsibility.
In case of return due to unpaid duties/taxes or refusal to clear customs, the buyer shall bear the original shipping cost, return shipping fees, and any associated administrative charges deducted from the refund.

📌 Order Confirmation: By completing your purchase, you acknowledge that you have read, understood, and agreed to all terms above. For any questions, please contact our support team prior to ordering.
