Drive Pinion Gear & Differential Gear

Brand: Mortch Motor
Product Code: MICF0180-310020-00001

Product Viewed: 3

Availability: 5

Weight: 1.55kg

Packing Size: 15.00 x 15.00 x 5.00cm

0 reviews / Write a review

US$48.11

Shipping To：

More Quotes

Qty

Buy Now

Tell a Friend Ask a Question

CFMoto Drive Pinion Gear & Differential Gear

OEM Part Number 0180-310020

Front Axle Bevel Gear Set · Includes Drive Pinion and Ring Gear

Fits IRON/COBALT/X-Series Models

📋 Overview

This is a genuine CFMoto front axle bevel gear set, part number 0180-310020. This set includes the drive pinion gear (part number 0181-312003) and the differential ring gear (part number 0181-313004), which are core components of the front axle transmission, responsible for transmitting power from the driveshaft to the front differential for torque multiplication and power steering. Directly replaces original worn or damaged bevel gear sets, restoring front axle drive performance. Fits various CFMoto ATV and UTV models, including IRON, COBALT, X-Series.

✨ OEM Quality: Precision machined from high-quality alloy steel with heat-treated tooth surfaces, high strength, good wear resistance, ensuring smooth and quiet operation.

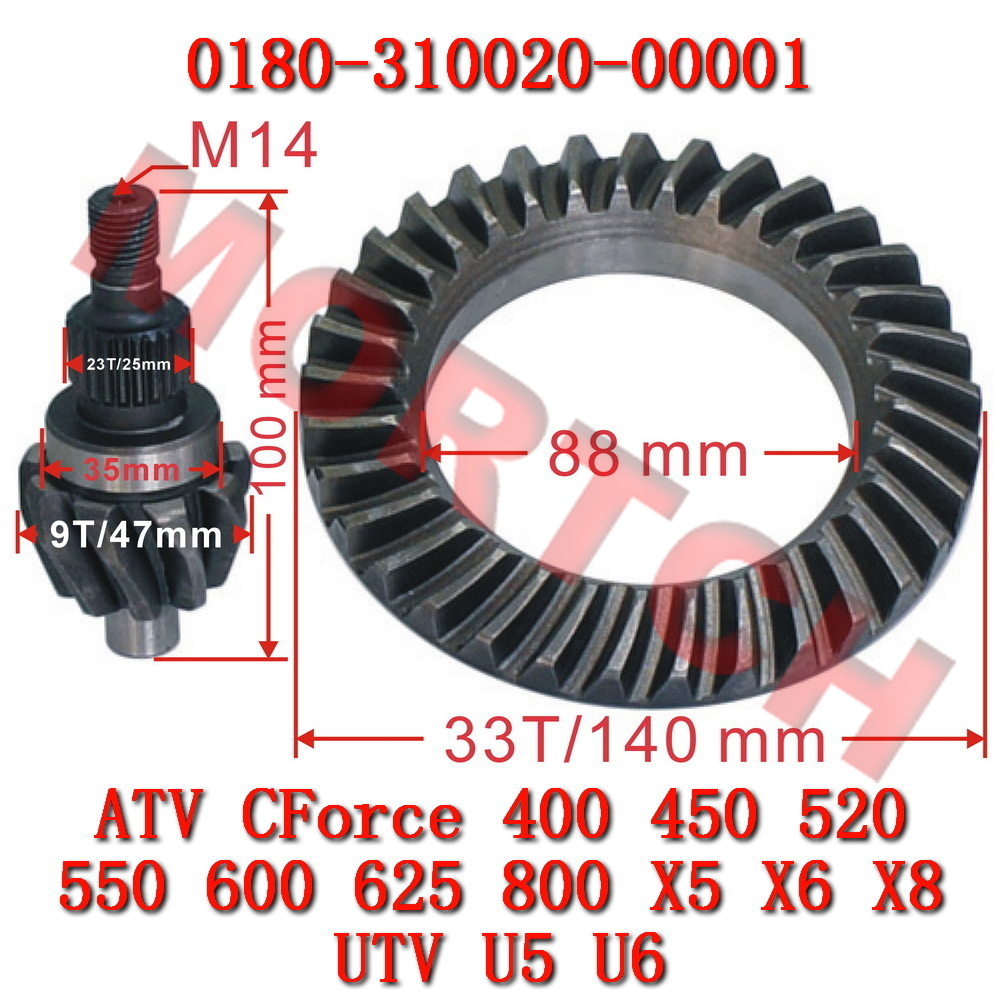

📐 Specifications

⚙️ Drive Pinion Gear — Part No. 0181-312003

Teeth 9T

Spline Spec 23T / 25mm

Thread M14

⚙️ Ring Gear — Part No. 0181-313004

Teeth/OD 33T / 140mm

Inner Diameter 88mm

Bolt Hole Spacing 52.5mm (center to center)

🔧 Compatible Models

This bevel gear set (0180-310020) fits the following CFMoto models:

🏍️ 800cc Series & X8

ATV CF800-2 X8
ATV CF800ATR CForce 800
ATV CF800ATR-2 CForce 800
ATV CF800AU-2B CForce 800

🏍️ 600/625cc Series & X6

ATV CF600AU-L(INTERNATIONAL) CForce 600
ATV CF600-B X6
ATV CF600-C X6
ATV CF625-2 X6
ATV CF625-2A X6
ATV CF625-B X6
ATV CF625-C X6

🏍️ 500/520/550cc Series & X5/COBALT/IRON

ATV CF400AU-2L IRON MAX L7e
ATV CF400AU-2S IRON L7e
ATV CF500 X5
ATV CF500-2 X5
ATV CF500-2A X5
ATV CF500-5 X5
ATV CF500-5A X5
ATV CF500-5B X5
ATV CF500-5C X5
ATV CF500-A X5
ATV CF500ATR CForce 520
ATV CF500ATR-3 CForce 520
ATV CF500ATR-3(T3a) CForce 520
ATV CF500ATR-A CForce 550
ATV CF500AU-6B CForce 550
ATV CF500AU-6L CForce 550
ATV CF500AU-6L(CA) CForce 550HO
ATV CF500AU-8L COBALT MAX L7e
ATV CF500AU-8S COBALT L7e
ATV CF500-B X5
ATV CF500-C X5
ATV CF500-D X5
ATV CF500-E X5

🏁 GOES Series

ATV GOES500
ATV GOES500-A

🚙 UTV Series

UTV CF500-3 UForce 500 U5
UTV CF600-5 UForce U6

📌 Important Note: This part is the front axle bevel gear set, including drive pinion (9T, 23T/25mm spline, M14 thread) and ring gear (33T/140mm OD, 88mm ID, 52.5mm bolt hole spacing). Compatibility list is based on OEM part number 0180-310020 data. If your model is not listed, please verify your original part number or contact support.

⚙️ Features

Front Axle Core Drive Component: Drive pinion and ring gear are the core of the front axle final drive, responsible for torque multiplication and power steering.
Direct OEM Replacement: Part number 0180-310020, perfect fit to original front axle mounting.
Precision Gear Matching: Gears are precision machined and heat-treated for smooth engagement and low noise.
High-Strength Material: Made from high-quality alloy steel, strong load capacity, good wear resistance.
Complete Specifications: Drive pinion 9T, 23T/25mm spline; ring gear 33T/140mm.
Restores Drive Performance: Replacing worn or damaged bevel gear set eliminates noise and restores front axle driving force.

⚠️ Compatibility Check: Please verify that your CFMoto model uses front axle bevel gear set part number 0180-310020 before ordering. This is a precision component requiring professional installation.
