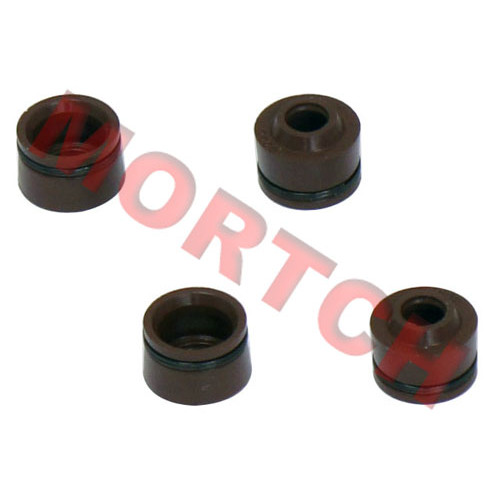

Valve Stem Seal Ring Set

Brand: Mortch Motor
Product Code: MICF0010-022500-10000

Product Viewed: 7

Availability: 168

Weight: 0.00kg

0 reviews / Write a review

US$0.90 1 SOLD

Shipping To：

More Quotes

Qty

Buy Now

Tell a Friend Ask a Question

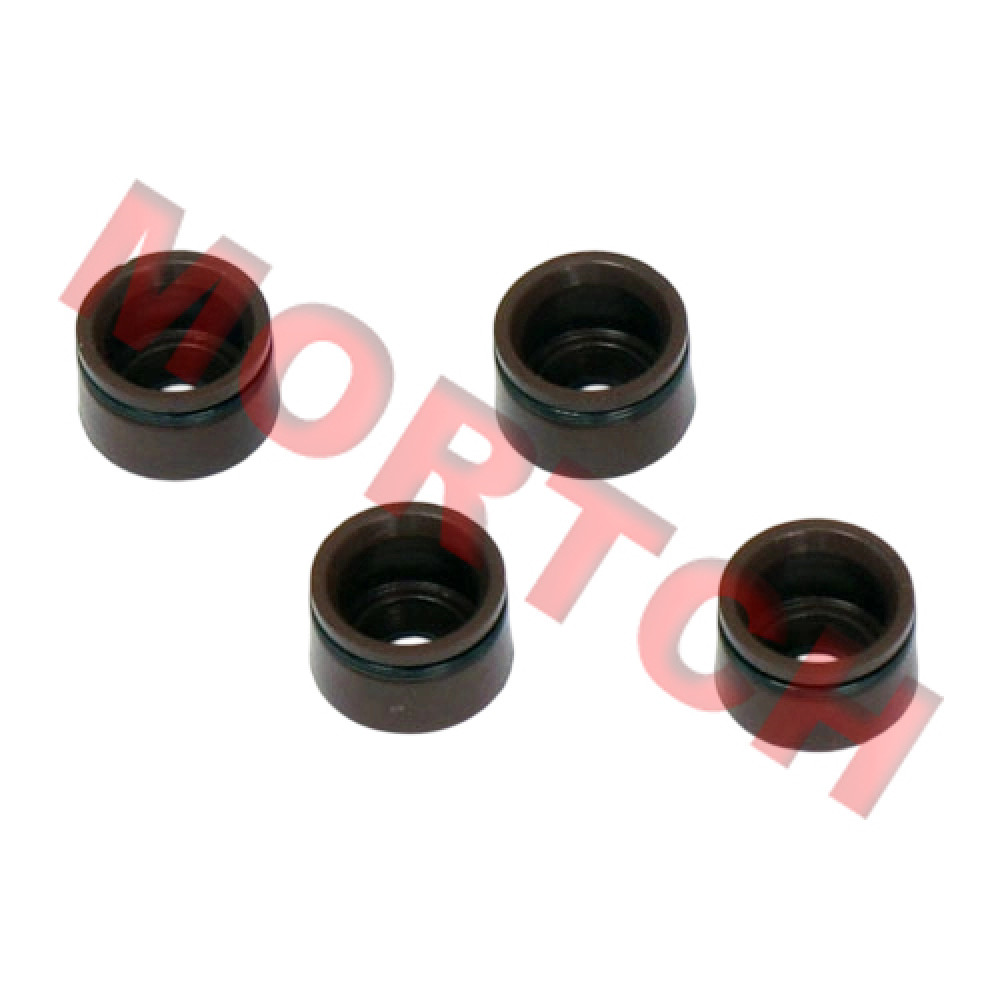

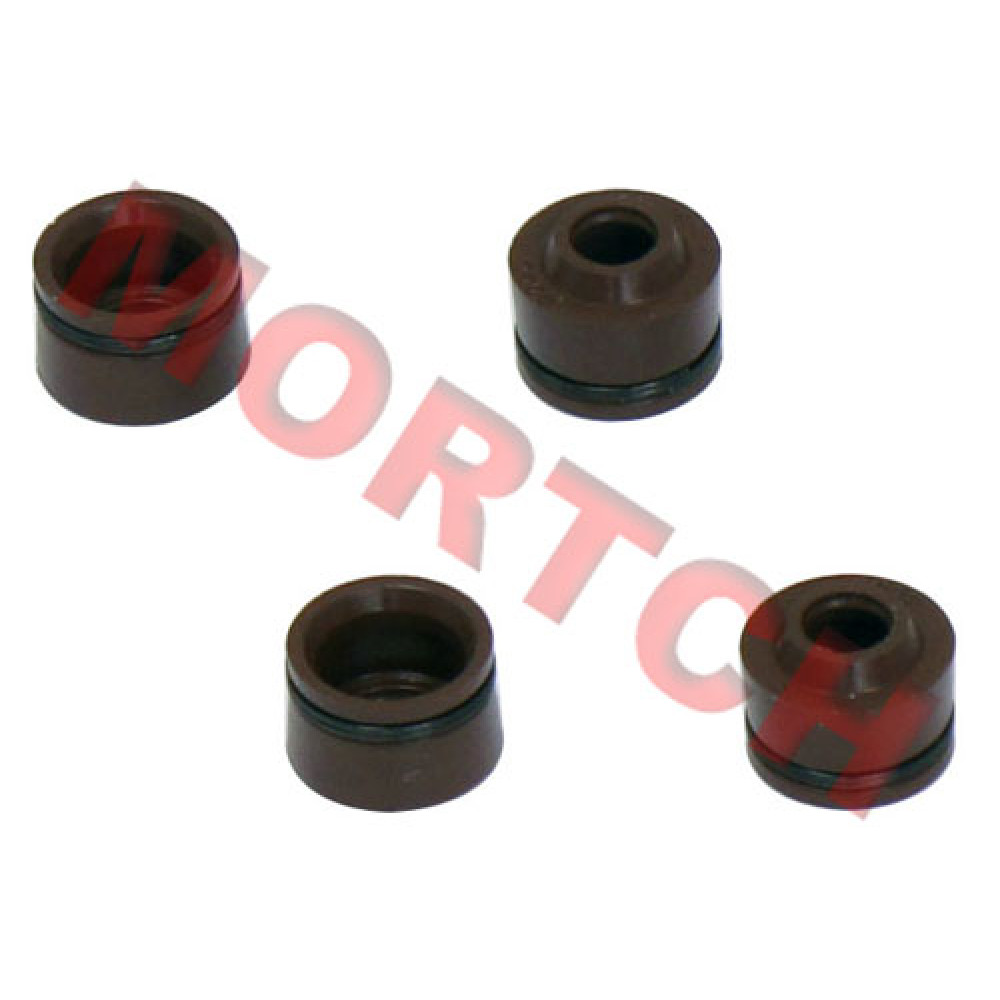

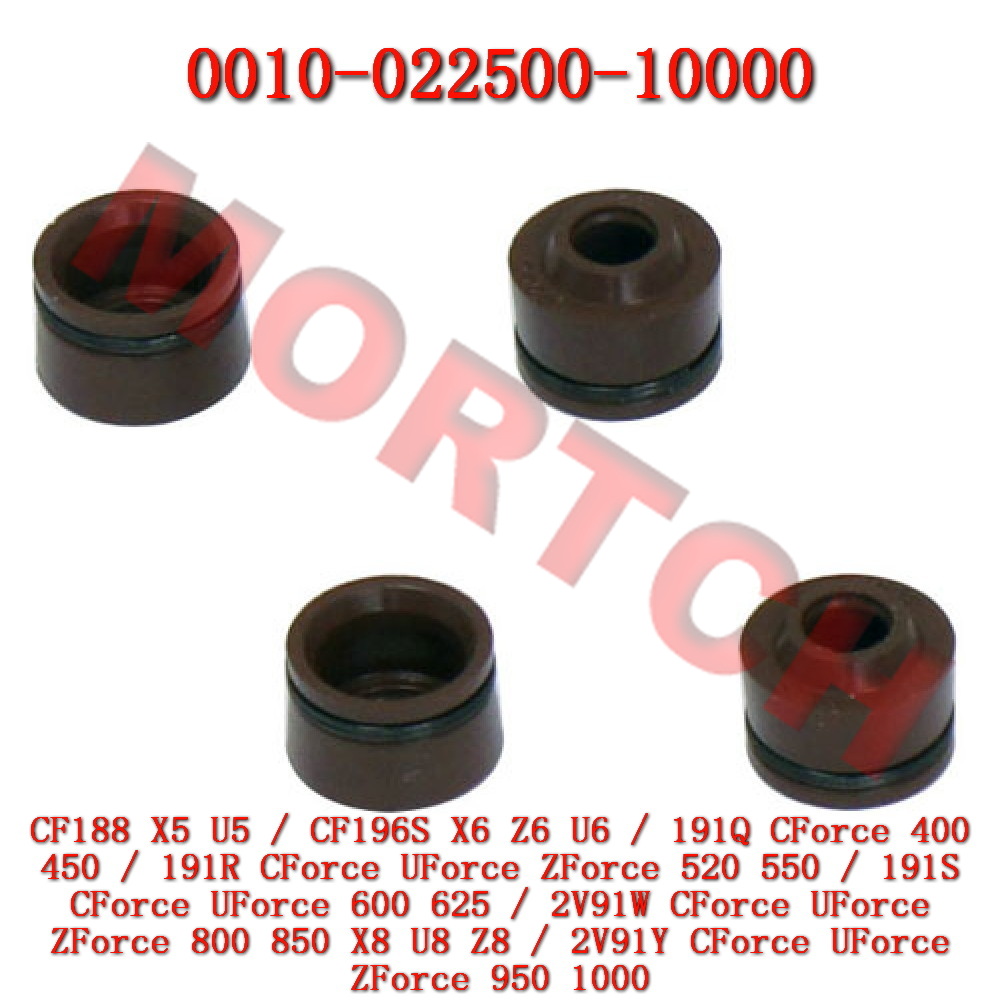

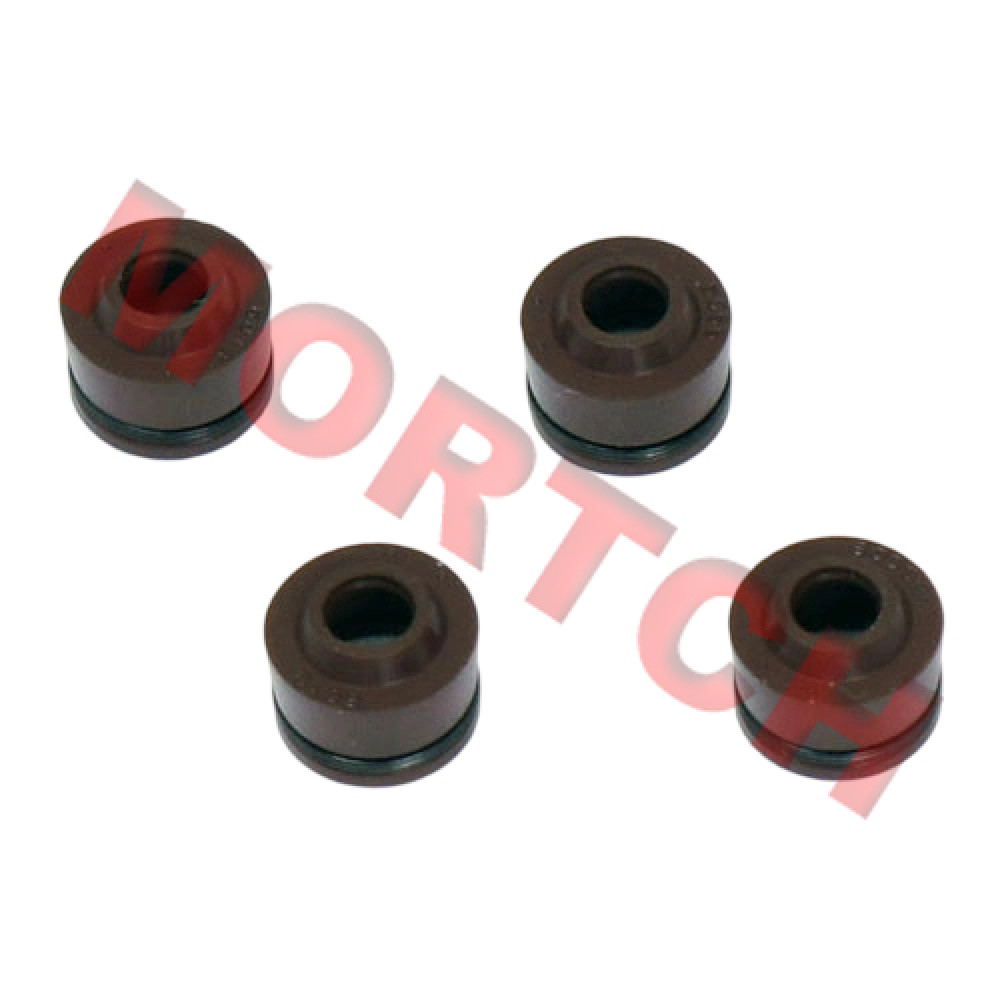

CFMoto Valve Stem Seal Ring Set

Replaces OEM 0010-022500 (Old # 152MI-022500)

Packaging: 4pcs/Pack

Fits CFMoto 125cc / 150cc / 250cc / 450cc / 500cc / 550cc / 600cc / 625cc / 800cc / 850cc / 1000cc Multiple Engines

📋 Overview

This valve stem seal ring set is a genuine quality replacement part for CFMoto vehicles. It installs on the valve guide to control oil entry into the combustion chamber and prevent oil leakage through the valve guide clearance. Directly replaces OEM part number 0010-022500 (old part number 152MI-022500). Fits various CFMoto engine displacements, covering multiple series from 125cc to 1000cc. Valve stem seals are critical sealing components in the engine valve train, with each cylinder requiring one intake and one exhaust seal.

✨ OEM Quality: Made from oil and heat resistant rubber with precision molded sealing lips, ensuring effective sealing and long service life.

📐 Part Number Cross Reference

Current Part Number 0010-022500

Old Part Number 152MI-022500

Component Valve Stem Seal Ring Set

Packaging 4pcs/Pack

🔧 Compatible Engines (By Displacement)

🔧 125cc Engine Series

ENGINE 157FMI-2A 125cc
ENGINE 157FMI-2B 125cc
ENGINE 157FMI-2C 125cc
ENGINE 157FMI-2F 125cc

🔧 150cc Engine Series

ENGINE 157MJ-3 150cc
ENGINE 157MJ-3B 150cc
ENGINE 157MJ-3C 150cc

🔧 250cc Engine Series

ENGINE 172MM-F 250cc

🔧 450cc Series (191Q Engine) - CForce 450

ENGINE 191Q CForce 450
ENGINE 191Q FOR CF400ATR-4L/4S CForce 450S/L
ENGINE 191Q FOR CF400AU-3L/3S CForce 450S/L
ENGINE 191Q-A CForce 450
ENGINE 191Q-A FOR CF400AU-3L/3S CForce 450S/L
ENGINE 191Q-H CForce 450

🔧 500/550cc Series (191R Engine) - CForce 500/520/550, ZForce, UForce

ENGINE 191R FOR CF500ATR-11L/11S GOES TERROX 500L
ENGINE 191R FOR CF500ATR-5L&5S COBALT T3
ENGINE 191R FOR CF500ATR-5L/5S COBALT MAX T3
ENGINE 191R FOR CF500AU-7S/7L CForce 520S/L
ENGINE 191R FOR CF500AU-7SA/7LA CForce 520S/L
ENGINE 191R FOR CF500AU-9L/9S CForce 520 S/L
ENGINE 191R-C FOR CF500AU-6B CForce 550
ENGINE 191R-C FOR CF500AU-8S/8L CForce 550
ENGINE 191R-E CForce 550
ENGINE 191R-E FOR CF500AU-9L/9S CForce 520 S/L
ENGINE 191R-H CForce 550
ENGINE 191R-U550 UForce 550
ENGINE 191R-X550 CForce 550
ENGINE 191R-Z550 ZForce 550

🔧 600/625cc Series (191S Engine) - CForce 600/625, UForce 600

ENGINE 191S CForce 625
ENGINE 191S-A CForce 600 Touring/625 Touring
ENGINE 191S-U6 UForce 600

🔧 800/850cc Series (2V91W Engine) - CForce 800/850, ZForce, UForce

ENGINE 2V91W FOR CF800ATR-2 CForce 800
ENGINE 2V91W FOR CF800UTR ZForce Z8-EX
ENGINE 2V91W FOR CF800UTR-2 UForce 800
ENGINE 2V91W(U8) U8 800
ENGINE 2V91W(U8-AU) U8 800
ENGINE 2V91W(U8-CA) U8 800
ENGINE 2V91W(U8-HLG) U8 800
ENGINE 2V91W(U8-US) U8 800
ENGINE 2V91W(X8) X8 800
ENGINE 2V91W(Z8) Z8 800
ENGINE 2V91W(Z8-CA) Z8 800
ENGINE 2V91W(Z8-US) Z8 800
ENGINE 2V91W-A CForce 800XC/CForce 850XC
ENGINE 2V91W-B ZForce 800 Trail
ENGINE 2V91W-D CForce 800XC/CForce 850XC
ENGINE 2V91W-G ZForce 800 SPROT
ENGINE 2V91W-S CForce 800
ENGINE 2V91W-Z(U8) U8 800
ENGINE 2V91W-Z(Z8) Z8 800

🔧 1000cc Series (2V91Y Engine) - CForce 1000, ZForce 1000, UForce 1000

ENGINE 2V91Y-C CForce 1000
ENGINE 2V91Y-U10 UForce 1000
ENGINE 2V91Y-X10 CForce 1000
ENGINE 2V91Y-Z10 ZForce 1000EX
ENGINE 2V91Y-Z1000 ZForce 1000

🔧 500cc CF188 Engine

ENGINE CF188 500cc

📌 Compatibility Note: This valve stem seal set fits the CFMoto 125cc-1000cc engines listed above, covering 157FMI, 157MJ, 172MM, 191Q, 191R, 191S, 2V91W, 2V91Y, CF188 series and more. Due to the large number of applications, it is recommended to verify your engine model before purchasing.

⚙️ Features

Direct OEM Replacement: Perfectly matches CFMoto OEM part numbers 0010-022500 / 152MI-022500.
Quality Material: Made from oil and heat resistant Viton or nitrile rubber, suitable for high-temperature engine environments.
Precision Molded: Precision molded sealing lips provide tight fit with valve stem, effectively controlling oil consumption.
Internal Spring: Some versions include an internal garter spring to maintain constant lip pressure on the valve stem.
Wide Application: Fits various CFMoto engine displacements from 125cc to 1000cc.

✅ Importance of Valve Stem Seal Replacement: Valve stem seals are critical components that prevent oil from entering the combustion chamber. Over time, rubber hardens and sealing lips wear, allowing oil to seep through the valve guide clearance into the combustion chamber, causing increased oil consumption, spark plug fouling, and blue smoke from exhaust. When replacing valves or performing engine overhaul, it is recommended to replace valve stem seals simultaneously to ensure proper engine operation.

📖 Installation Guide (Valve Stem Seals)

Follow these steps to replace the valve stem seals and ensure proper sealing and engine operation. This procedure requires specialized tools and is recommended to be performed by a professional technician.

🔧 Pre-Installation Preparation

Confirm the new valve stem seals are 0010-022500, 4pcs/Pack.
Prepare a valve stem seal installation tool, torque wrench, clean rags, and lubricant (engine oil).
Ensure the engine is cooled and remove the cylinder head and other necessary components to access the valve train.

🔄 Step 1: Remove the Old Valve Stem Seals

Using a specialized valve stem seal removal tool, carefully remove the old seals.
Take care not to scratch the valve guide inner wall.
Clean the valve guide mounting area, removing old seal residue and oil.
Inspect the valve stem and valve guide for wear — repair or replace if necessary.

🧽 Step 2: Install the New Valve Stem Seals

Remove the new seals (4 pieces) from their packaging and check for any damage or deformation.
Apply a small amount of clean engine oil to the valve stem for lubrication.
Slide the new seal onto the valve stem and use a specialized installation tool to press it onto the valve guide.
Ensure the seal is fully seated with the sealing lip facing the correct direction (typically toward the combustion chamber).
⚠️ Critical Step: Ensure the seal lip is not damaged by burrs or sharp edges on the valve stem during installation.

✅ Step 3: Post-Installation Check

Check that all seals are properly seated with no tilting or deformation.
Reinstall the cylinder head and other components according to factory specifications.
Start the engine and check for any unusual noises or smoke.
Take a test ride to confirm normal oil consumption.
Record the replacement mileage and date for future maintenance reference.

💡 Installation Key Points

Apply oil to the valve stem before installation to lubricate the seal and prevent dry-running damage to the lip.
Use a specialized installation tool — avoid pushing by hand to prevent seal deformation.
Pay attention to seal orientation — the sealing lip should face toward the combustion chamber.
It is recommended to inspect valve stem clearance and valve guide wear when replacing seals.
If you are not experienced with engine assembly, we strongly recommend professional installation.

⚠️ Verify Before Ordering: Please confirm your engine model is in the compatibility list. This is a valve stem seal set (4pcs/Pack). Each cylinder requires one intake and one exhaust seal. Apply a small amount of oil to the valve stem during installation and use a proper installation tool to avoid damaging the seal lip.

🔧 Compatibility Notice

Please verify that this part fits your specific vehicle model and year. Many vehicles share similar names but use different components depending on year or market region.
We strongly recommend cross-checking with your vehicle's owner's manual or contacting us for confirmation before placing your order.
