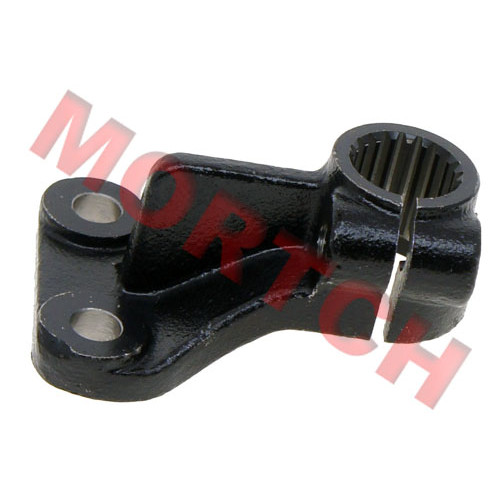

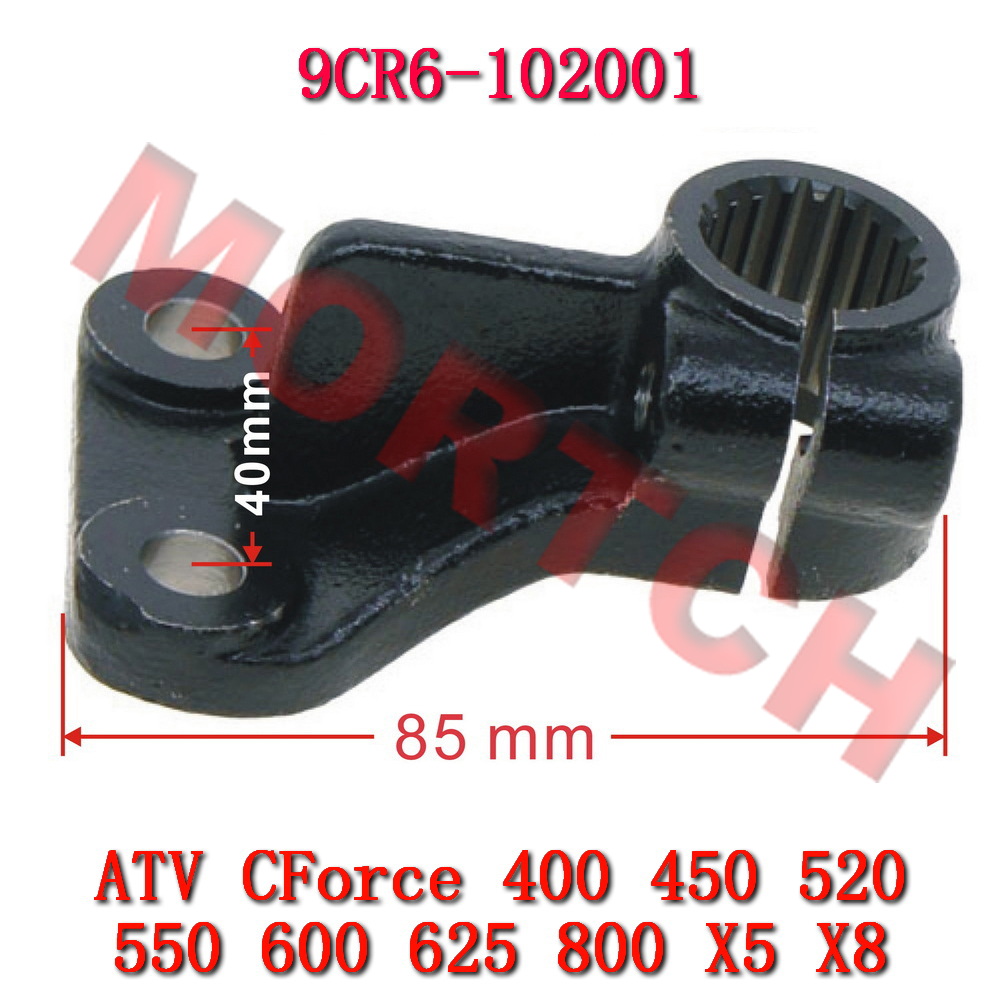

CF Moto Steering Arm

Part Number: 9CR6-102001

Specification: 16T (16 Teeth)

Product Type: Steering System Component

Original specification steering arm, a critical component in the vehicle's steering system. It connects the steering gear (or power steering unit) to the steering linkage, transmitting steering torque to the wheels to achieve vehicle direction control. This steering arm features a 16-tooth (16T) specification, ensuring precise engagement with the mating steering gear spline. Manufactured strictly according to CF Moto original technical standards, guaranteeing strength, precision, and durability.

📋 Product Overview

This product is an original quality CF Moto steering arm, part number 9CR6-102001. As a vital part of the vehicle's steering linkage, the steering arm is responsible for accurately transmitting the driver's input from the steering gear to the wheels, directly impacting handling stability and driving safety.

This steering arm is a 16-tooth (16T) specification. It is manufactured from high-quality metal through precision forging or machining, offering exceptional strength and fatigue resistance. The surface typically undergoes anti-corrosion treatment to withstand various operating environments. Produced strictly according to CF Moto original technical standards, it ensures consistency with the original part in dimensions, tooth profile, mounting points, and mechanical properties, guaranteeing accurate steering response and reliable connection.

🔧 Original Quality Assurance: Manufactured strictly according to CF Moto original technical standards. Consistent with the original part in material, tooth count (16T), geometry, and strength, ensuring perfect fit and reliable steering performance.

📐 Specifications

Part Number:

9CR6-102001

Product Name:

Steering Arm

Specification (Teeth):

16T (16 Teeth)

System:

Steering System

🔧 Application List

This Steering Arm (9CR6-102001) fits the following CF Moto models:

🏍️ IRON / COBALT Series (400/500cc)

ATV CF400ATR-5L(T3b) IRON MAX T3
ATV CF400ATR-5S(T3b) IRON T3
ATV CF400AU-2L IRON MAX L7e
ATV CF400AU-2S IRON L7e
ATV CF500ATR-5L(T3b) COBALT MAX T3
ATV CF500ATR-5S(T3b) COBALT T3
ATV CF500AU-8L COBALT MAX L7e
ATV CF500AU-8S COBALT L7e

🏍️ ATV 500cc Series

ATV CF500ATR CForce 520
ATV CF500ATR-3 CForce 520
ATV CF500ATR-3(T3a) CForce 520
ATV CF500ATR-A CForce 550
ATV CF500AU-6B CForce 550
ATV CF500AU-6L CForce 550
ATV CF500AU-6L(CA) CForce 550HO
ATV CF500-D X5
ATV CF500-E X5

🏍️ ATV 600/625cc Series

ATV CF600ATR-2L(T3b) CForce 625 Touring
ATV CF600ATR-2L(T3b)(GD) CForce 625 Touring
ATV CF600ATR-2L(T3b)(HLG) CForce 625 Touring
ATV CF600ATR-2L(T3b)(SS) CForce 625 Touring
ATV CF600ATR-2LC CForce 625 Touring
ATV CF600ATR-2LC(GD) CForce 625 Touring
ATV CF600ATR-2LC(HLG) CForce 625 Touring
ATV CF600ATR-2LC(SS) CForce 625 Touring
ATV CF600ATR-2S(T3b) CForce 625
ATV CF600ATR-2S(T3b)(GD) CForce 625
ATV CF600ATR-2S(T3b)(HLG) CForce 625
ATV CF600ATR-2S(T3b)(SS) CForce 625
ATV CF600ATR-2SC CForce 625
ATV CF600ATR-2SC(GD) CForce 625
ATV CF600ATR-2SC(SS) CForce 625
ATV CF600ATR-L(T3a) CForce 600
ATV CF600ATR-L(T3b) CForce 600
ATV CF600ATR-L(T3b)(GD) CForce 600
ATV CF600AU-3L CForce 600 Touring/625 Touring
ATV CF600AU-3L(AU) CForce 600 Touring/625 Touring
ATV CF600AU-3L(CA) CForce 600 Touring
ATV CF600AU-3L(HLG) CForce 600 Touring
ATV CF600AU-3L(RU) CForce 600 Touring
ATV CF600AU-3L(US) CForce 600 Touring
ATV CF600AU-3LA CForce 600 Touring/625 Touring
ATV CF600AU-3LA(AU) CForce 600 Touring/625 Touring
ATV CF600AU-3LA(RU) CForce 600 Touring/625 Touring
ATV CF600AU-3LA(ST) CForce 600 Touring/625 Touring
ATV CF600AU-3LA(US) CForce 600 Touring/625 Touring
ATV CF600AU-3LF CForce 600 Touring/625 Touring
ATV CF600AU-3LF(GD) CForce 600 Touring/625 Touring
ATV CF600AU-3LF(HLG) CForce 600 Touring/625 Touring
ATV CF600AU-3LH CForce 600 Touring/625 Touring
ATV CF600AU-3S CForce 600/625
ATV CF600AU-3S(AU) CForce 600/625
ATV CF600AU-3S(CA) CForce 600/625
ATV CF600AU-3S(HLG) CForce 600/625
ATV CF600AU-3S(RU) CForce 600/625
ATV CF600AU-3S(US) CForce 600/625
ATV CF600AU-3SA CForce 625 EPS
ATV CF600AU-3SA(AU) CForce 625 EPS
ATV CF600AU-3SA(RU) CForce 625 EPS
ATV CF600AU-3SA(ST) CForce 625 EPS
ATV CF600AU-3SA(US) CForce 625 EPS
ATV CF600AU-3SF CForce 600
ATV CF600AU-3SF(HLG) CForce 600
ATV CF600AU-3SH CForce 600
ATV CF600AU-L(EU168) CForce 600
ATV CF600AU-L(INTERNATIONAL) CForce 600
ATV CF600AU-L(US) CForce 600
ATV CF600AZ-3L(CA) CForce 600
ATV CF600AZ-3L(US) CForce 600
ATV CF600AZ-3LA(CA) CForce 600 Touring
ATV CF600AZ-3LA(US) CForce 600 Touring
ATV CF600AZ-3S(CA) CForce 600
ATV CF600AZ-3S(US) CForce 600
ATV CF600AZ-3SA(CA) CForce 600
ATV CF600AZ-3SA(US) CForce 600

🏍️ ATV 800cc Series

ATV CF800-2 X8
ATV CF800ATR CForce 800
ATV CF800ATR-2 CForce 800
ATV CF800AU-2B CForce 800

👮 Police Models

POLICE MOTORCYCLE CF600AU-L (X6 Police) CForce 600

📌 Application Note: This Steering Arm (9CR6-102001) is suitable for the CF Moto ATV and Police models listed above. As steering system configurations may relate to specific model variants and model years, if your specific model is not listed, please contact our customer service with the Vehicle Identification Number (VIN) for confirmation.

⚙️ Product Features

Precision Manufacturing: Produced using precision forging or machining processes, ensuring dimensional accuracy and correct tooth profile.
High-Strength Material: Made from high-quality metal, offering excellent strength and fatigue resistance.
16-Tooth Specification: Precise 16-tooth design ensures tight engagement with the mating steering gear for accurate steering.
Surface Treatment: Finished with anti-corrosion coating to enhance durability and longevity.
Original Standard: Performance and quality fully comply with CF Moto original specifications, ensuring driving safety.

✅ Inspection Tip: Common conditions for steering arms:
• Worn or damaged teeth, causing excessive steering play or imprecise control.
• Deformed steering arm, affecting front end alignment.
• Worn or loose ball joint (if integrated).
• Significant surface corrosion.
If any of these occur, please inspect and replace the steering arm promptly to ensure driving safety.

✅ Installation Tip: Installation of the steering arm involves the steering system and driving safety. It is strongly recommended that this be performed by qualified personnel with appropriate knowledge and tools. Ensure the steering arm splines are fully aligned with the steering gear and tighten the fastening nut to the specified torque. After installation, check front end alignment and perform a road test to verify proper steering function.

⚠️ Important Notice: This product is a CF Moto Steering Arm, part number 9CR6-102001, specification 16T (16 Teeth). It is suitable for the CF Moto ATV and Police models listed above. Minor differences may exist between different model years or production batches. If your specific model is not listed, please contact our customer service with the Vehicle Identification Number (VIN) to verify compatibility. Images are for reference only; the actual product may vary slightly due to different batches.
