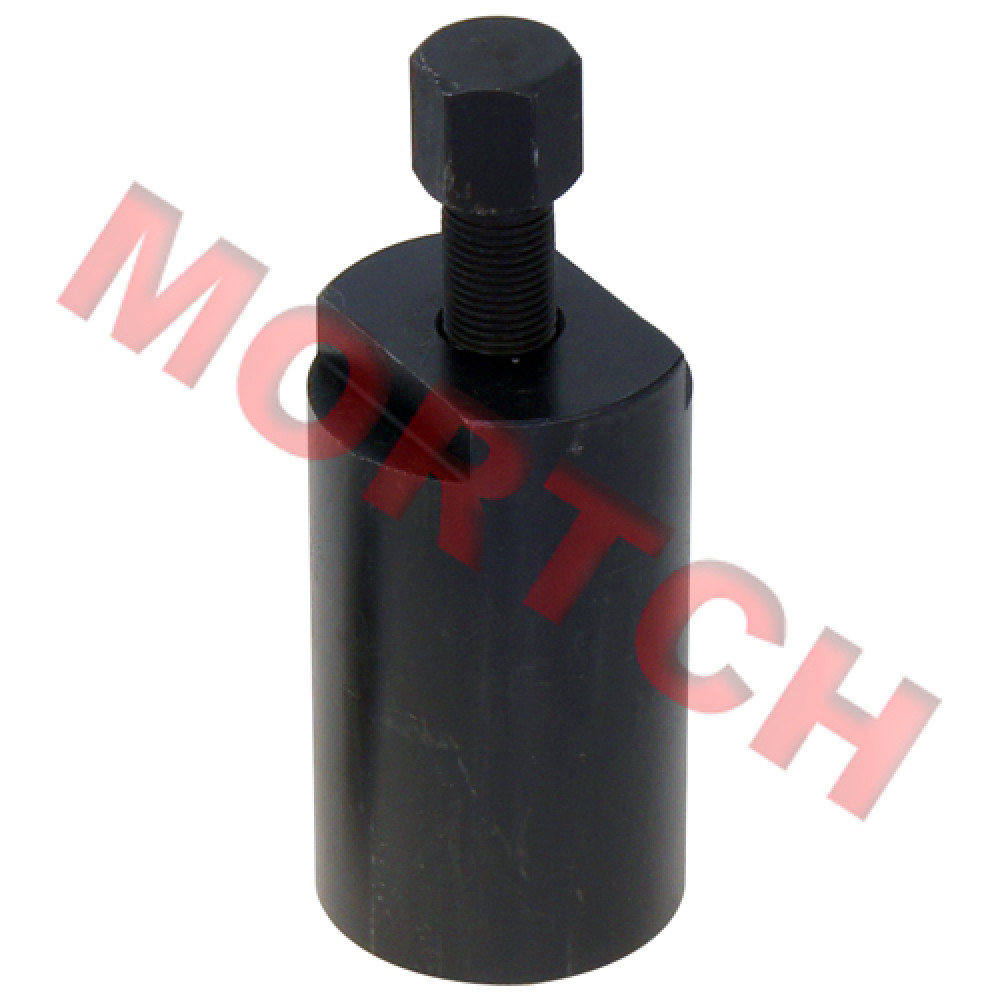

Flywheel Remover M40 x P1.5 Right Thread

Brand: Mortch Motor
Product Code: MICF0180-031000-922-001

Product Viewed: 6

Availability: In Stock

Weight: 0.83kg

0 reviews / Write a review

US$18.33

Shipping To：

More Quotes

CFMoto Flywheel Remover M40 x 1.5 Right Thread

Fits multiple CFMoto models · Inner diameter approx. 38.4mm · Also fits Suzuki GSX1000R and others

Important: Right-hand thread tool · Use hammer striking method for removal

📐 Specifications

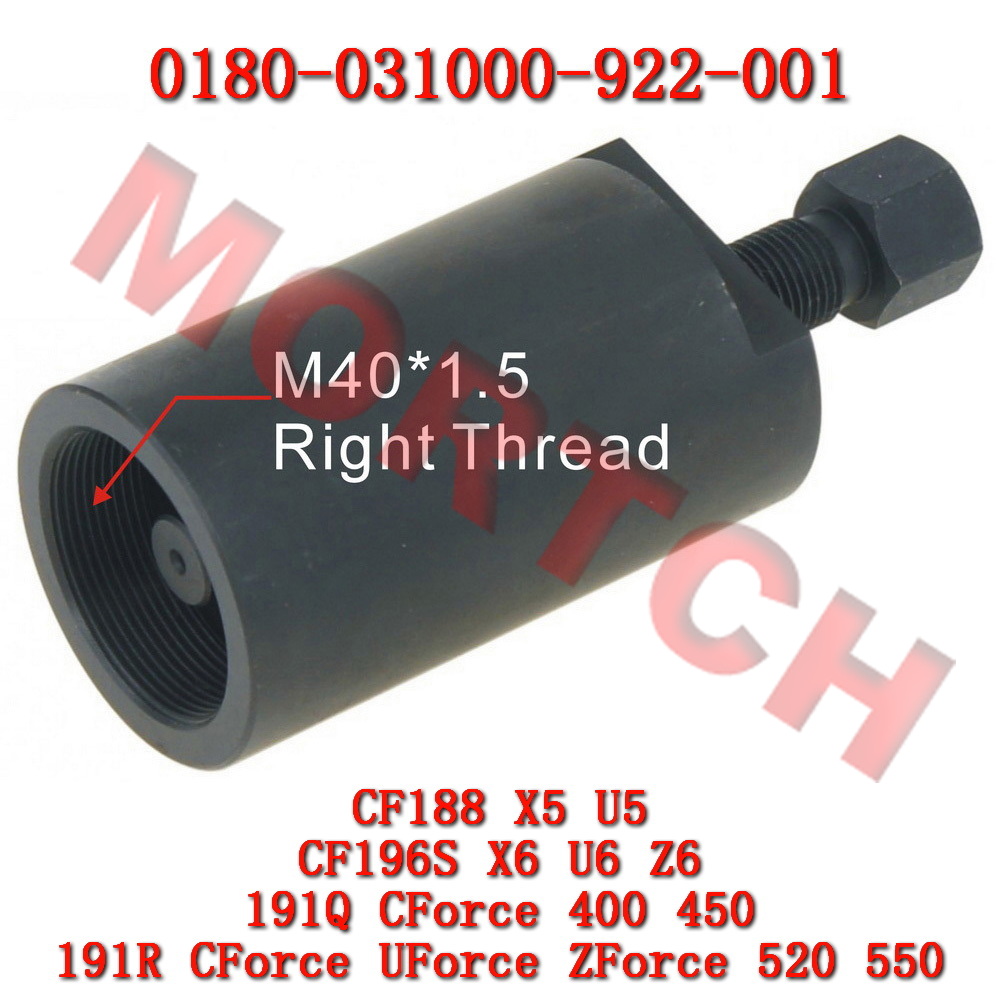

Thread Size M40 × 1.5 Right Thread (Clockwise)

Rotor Size M40 × 1.5 Right Thread

Inner Diameter Approx. 38.4mm

⚠️ Important Note: This tool is for rotors with M40 x 1.5 right thread. Please measure your flywheel thread size and confirm it is 40mm right thread before purchasing. This tool also fits Suzuki GSX1000R and other engines with M40 x 1.5 thread.

🔧 Important Usage Instructions

Remember: A flywheel is not intended to just "fall off" easily. If nothing happens after tightening the tool, do not keep turning.

Continuing to turn risks bending the bolt or stripping threads. The correct procedure is:

Tighten the tool
Use a heavy hammer to strike the head of the center bolt
Tighten again
Repeat this procedure until the flywheel is safely removed

Impact driver should only be used as a last resort!

💡 Professional Tip: Once the tool is tight, use a 3lb sledge hammer and firmly strike the head of the center bolt. This should make removal easier.

🏍️ Compatible CFMoto Models

ATV CF400ATR CForce 450 191Q
ATV CF400ATR-2L CForce 450L 191Q
ATV CF400ATR-2L(T3a)(SS) CForce 450L 191Q
ATV CF400ATR-2L(T3b)(KSR) CForce 450L 191Q
ATV CF400ATR-2L(T3b)(SS) CForce 450L 191Q
ATV CF400ATR-2L(T3a) CForce 450L 191Q
ATV CF400ATR-2L(T3b) CForce 450L 191Q
ATV CF400ATR-2S CForce 450S 191Q
ATV CF400ATR-2S(T3a) CForce 450S 191Q
ATV CF400ATR-2S(T3b) CForce 450S 191Q
ATV CF400ATR-3L CForce 450L 191Q FOR CF400AU-3L/3S
ATV CF400ATR-3L(T3b) CForce 450L 191Q FOR CF400AU-3L/3S
ATV CF400ATR-3S CForce 450S 191Q FOR CF400AU-3L/3S
ATV CF400ATR-3S(T3b) CForce 450S 191Q FOR CF400AU-3L/3S
ATV CF400ATR-5L(T3b) IRON MAX T3 191Q
ATV CF400ATR-5S(T3b) IRON T3 191Q
ATV CF400ATR-L CForce 450L 191Q
ATV CF400AU CForce 400S/450S 191Q
ATV CF400AU(CA) CForce 400S 191Q(US)
ATV CF400AU(US) CForce 400S 191Q(US)
ATV CF400AU-2L IRON MAX L7e 191Q
ATV CF400AU-2S IRON L7e 191Q
ATV CF400AU-3L CForce 450L 191Q-A FOR CF400AU-3L/3S
ATV CF400AU-3S CForce 450S 191Q-A FOR CF400AU-3L/3S
ATV CF400AU-A CForce 450S 191Q
ATV CF400AU-B CForce 450L 191Q
ATV CF400AU-L CForce 400L/450L 191Q
ATV CF400AU-L(CA) CForce 400L 191Q(US)
ATV CF400AU-LF CForce 450L 191-A (KSR)
ATV CF400AU-SF CForce 450S 191Q-A
ATV CF400AZ-3L CForce 450L 191Q
ATV CF500ATR CForce 520 191R-X550
ATV CF500ATR-2L CForce 520L 191R-X550
ATV CF500ATR-2L(T3a) CForce 520L 191R-X550
ATV CF500ATR-2L(T3b) CForce 520L 191R-X550
ATV CF500ATR-2LC CForce 520L 191R-X550
ATV CF500ATR-2S CForce 520S 191R-X550
ATV CF500ATR-2S(T3a) CForce 520S 191R-X550
ATV CF500ATR-2S(T3b) CForce 520S 191R-X550
ATV CF500ATR-2SC CForce 520S 191R-X550
ATV CF500ATR-3 CForce 520 191R-X550
ATV CF500ATR-3(T3a) CForce 520 191R-X550
ATV CF500ATR-5L(T3b) COBALT MAX T3 191R FOR CF500ATR-5L&5S
ATV CF500ATR-5S(T3b) COBALT T3 191R FOR CF500ATR-5L&5S
ATV CF500ATR-9L CForce 550 191R-E FOR CF500AU-9L/9S
ATV CF500ATR-9L(T3b) CForce 550 191R-E FOR CF500AU-9L/9S
ATV CF500ATR-9S(T3b) CForce 550 191R-E FOR CF500AU-9L/9S
ATV CF500ATR-A CForce 550 191R-X550
ATV CF500AU-6B CForce 550 191R-C FOR CF500AU-6B
ATV CF500AU-6L CForce 550 191R-X550
ATV CF500AU-6L(CA) CForce 550HO 191R-X550(CA)
ATV CF500AU-7A CForce 520S 191R FOR CF500AU-7S&7L
ATV CF500AU-7C CForce 520L 191R FOR CF500AU-7S&7L
ATV CF500AU-7L CForce 520L 191R FOR CF500AU-7S&7L
ATV CF500AU-7LF CForce 520L 191R-E
ATV CF500AU-7S CForce 520S 191R FOR CF500AU-7S&7L
ATV CF500AU-7S(CA) CForce 500S 191R FOR CF500AU-7S&7L(CA)
ATV CF500AU-7S(US) CForce 500S 191R FOR CF500AU-7S&7L(US)
ATV CF500AU-7SF CForce 500S/CForce 520S 191R-E
ATV CF500AU-8L COBALT MAX L7e CF500AU-8S/8L
ATV CF500AU-8S COBALT L7e CF500AU-8S/8L
ATV CF500AU-9S CForce 550 191R-E FOR CF500AU-9L/9S
ATV CF500AU-9L CForce 520L 191R-E FOR CF500AU-9L/9S
ATV CF500AZ-9S CForce 500/CForce 520 191R-E FOR CF500AU-9L/9S
SSV CF500US ZForce 500 Trail 191R-Z550
SSV CF500US(CA) ZForce 550 191R-Z550(CA)
SSV CF500US(US) ZForce 500 Trail 191R-Z550(US)
SSV CF500US-EX ZForce 550EX 191R-Z550
SSV CF500UTR ZForce 550EX 191R-Z550
SSV CF500UTR(T1a) ZForce 550EX 191R-Z550
SSV CF500UTR(T1a)(SS) ZForce 550EX 191R-Z550
SSV CF500UTR(T1b) ZForce 550EX 191R-Z550
SSV CF500UTR(T1b)(GD) ZForce 550EX 191R-Z550
UTV CF500UTR-2 UForce 550 191R-U550
UTV CF500UTR-2（GD） UForce 550 191R-U550
UTV CF500UU UForce 550 191R-U550
UTV CF500UU(CA) UForce 500 191R-U550
UTV CF500UU(US) UForce 550 191R-U550(US)
ATV CF500 X5 CF188
ATV CF500-2 X5 CF188
ATV CF500-2A X5 CF188
ATV CF500-5 X5 CF188
ATV CF500-5A X5 CF188
ATV CF500-5B X5 CF188-B
ATV CF500-5C X5 CF188-B
ATV CF500-A X5 CF188
ATV CF500-B X5 CF188
ATV CF500-C X5 CF188
ATV CF500-D X5 CF188
ATV CF500-E X5 CF188
UTV CF500-3 UForce 500 U5 CF188-A
ATV CF600-B X6 196S-B(X6)
ATV CF600-C X6 196S-B(X6)
ATV CF625-2 X6 196S-B(X6)
ATV CF625-2A X6 196S-B(X6)
ATV CF625-B X6 196S-B(X6)
ATV CF625-C X6 196S-B(X6)
UTV CF600-5 UForce U6 196S-B(U6)
SSV CF600-3 Z6 196S-C
SSV CF600-6 Z6 196S-C
SSV CF625-3 Z6 196S-C
SSV CF625-6 Z6 196S-C

📌 Note: This tool is specifically designed for CFMoto models with M40 x 1.5 right thread flywheels as listed above. It also fits Suzuki GSX1000R and other engines with the same thread specification. For other models, please verify thread specifications before purchasing.

✅ Professional Flywheel Removal Tool: Using the correct thread specification (M40 x 1.5 right thread) is essential for safe flywheel removal. This tool is specifically designed for various CFMoto ATV/SSV/UTV models. When combined with the proper "strike-tighten" technique, it allows for safe and efficient flywheel removal.

⚠️ Important: Please measure your flywheel thread size before purchasing to confirm it is M40 × 1.5 right thread. This tool is NOT suitable for left-hand threads or other thread sizes.
