Engine Drive Sleeve

Brand: Mortch Motor
Product Code: MICF9CR6-300201-10000

Product Viewed: 3

Availability: 49

Weight: 0.28kg

0 reviews / Write a review

US$10.00 3 SOLD

Shipping To：

More Quotes

Qty

Buy Now

Tell a Friend Ask a Question

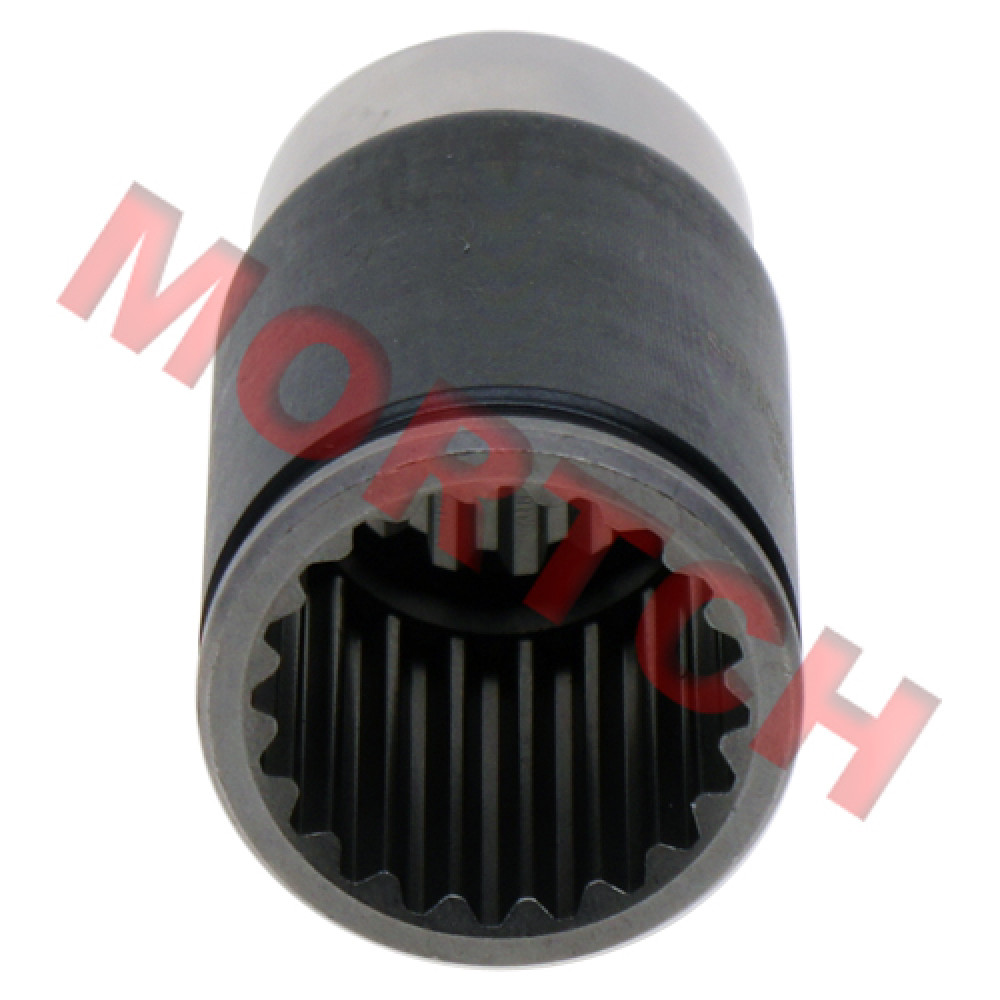

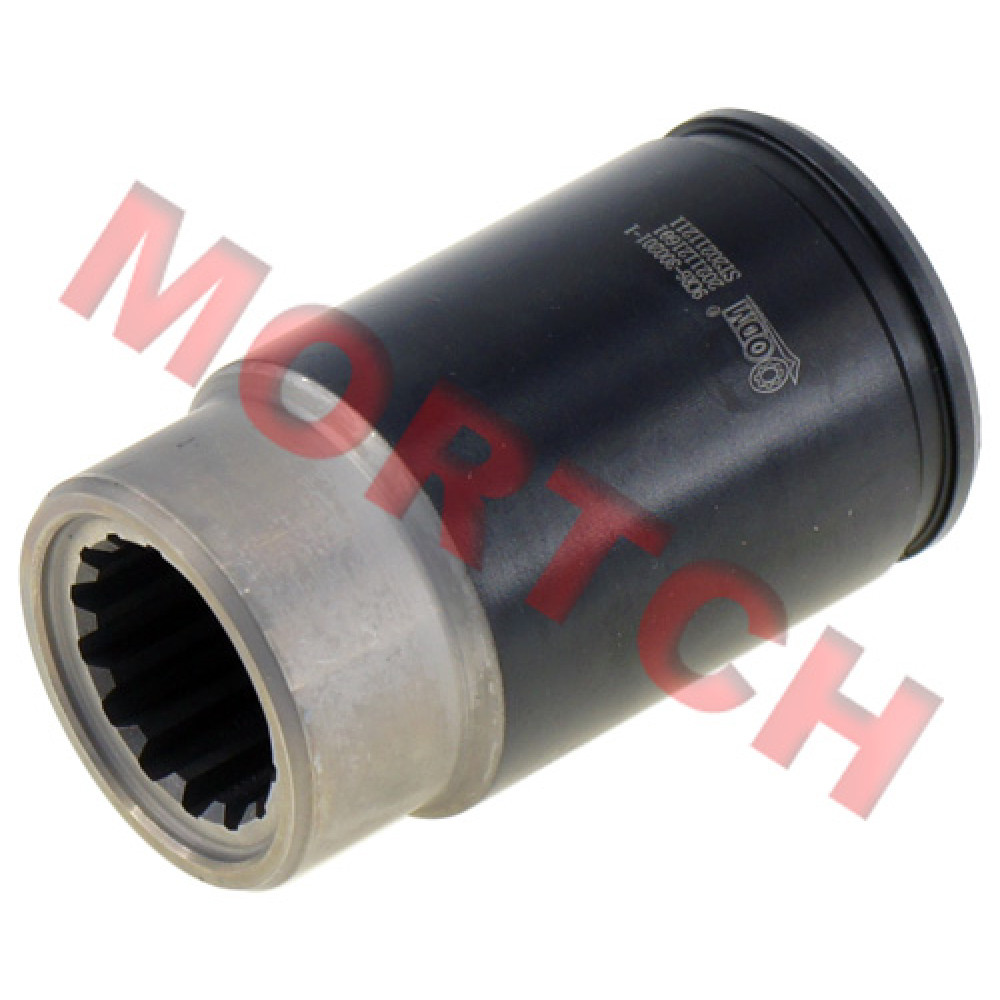

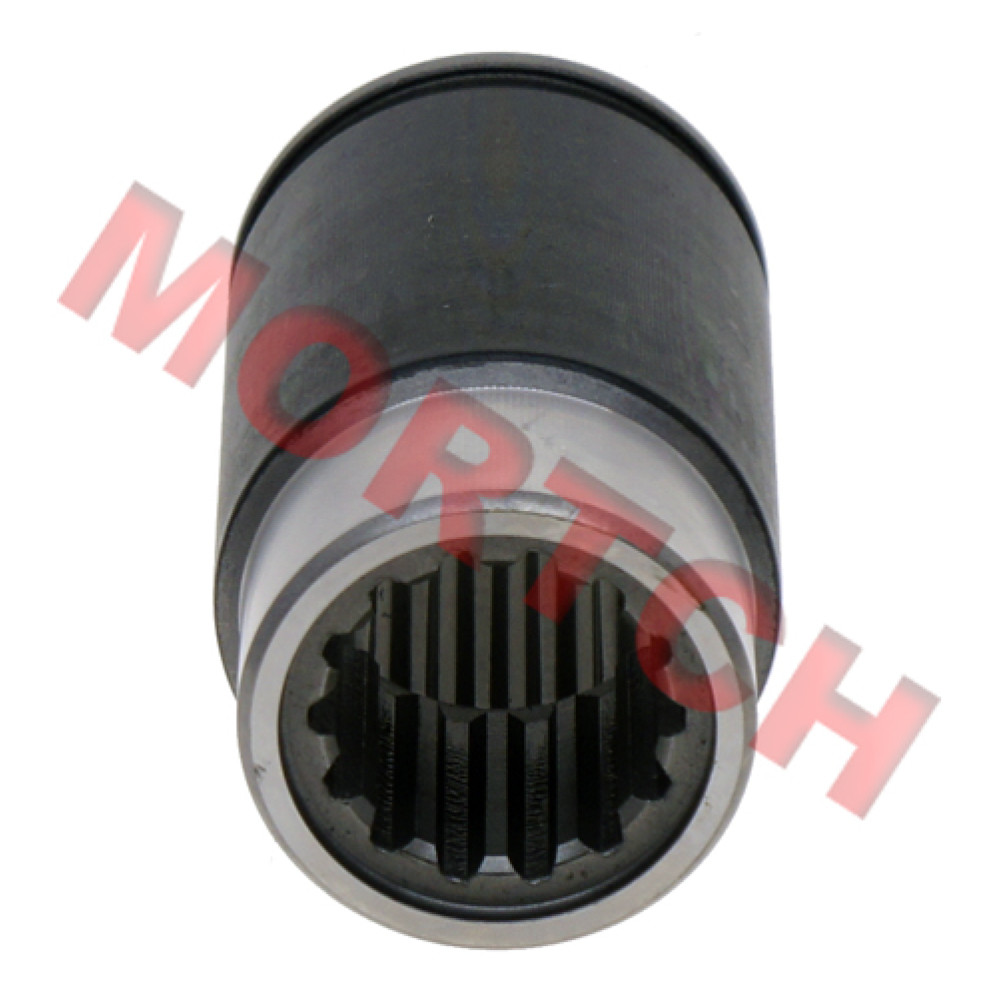

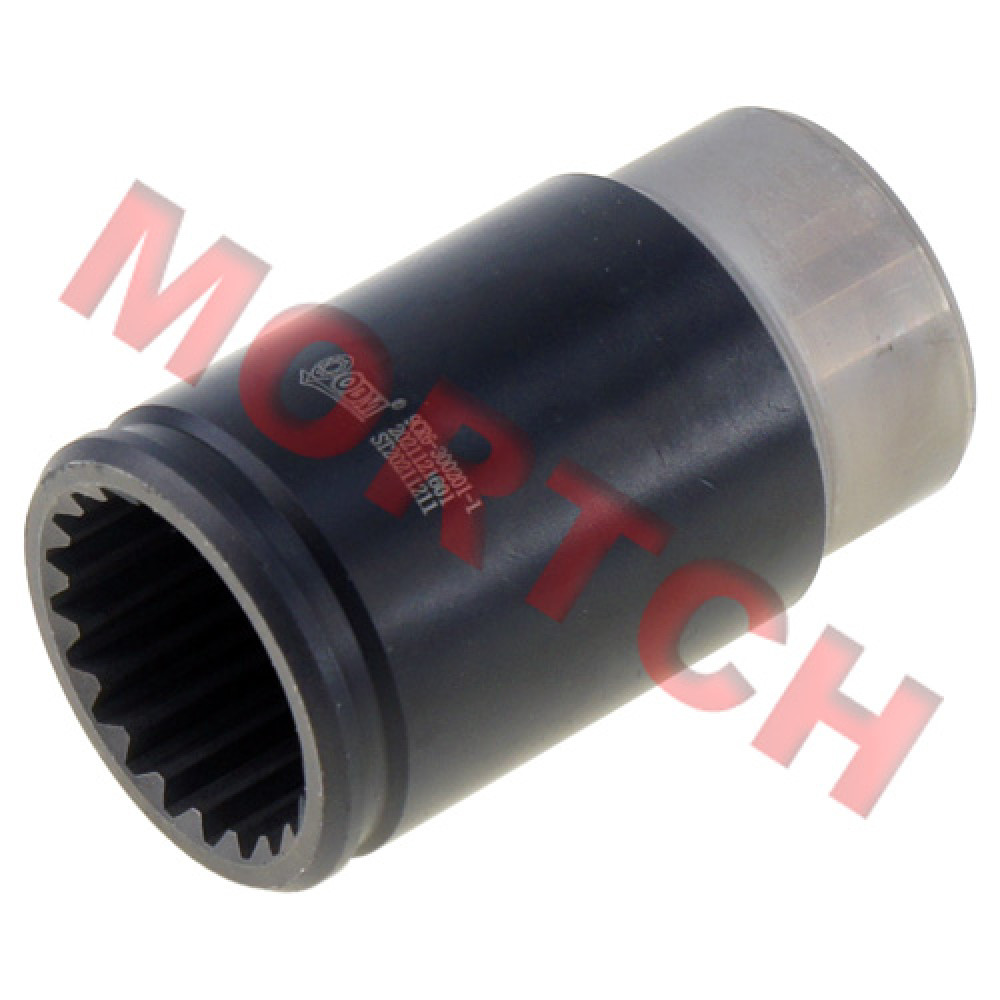

CFMoto Engine Drive Sleeve

OEM Part Number 9CR6-300201-10000

Fits CFMoto 400cc, 450cc, 500cc, 520cc, 550cc, 600cc, 625cc, 800cc, 850cc, 1000cc engine output systems

📋 Product Overview

This is a genuine quality CFMoto engine drive sleeve, directly replacing OEM part number 9CR6-300201-10000. This drive sleeve is installed on the engine output shaft to transmit engine power to the drive system. Manufactured from high-quality alloy steel with precision machining and heat treatment, it offers excellent strength, wear resistance, and torsional resistance, ensuring efficient, smooth, and reliable power transmission.

✨ Genuine Quality: Produced to CFMoto original specifications, ensuring precise spline profile, dimensions, and strength to meet engine output system requirements.

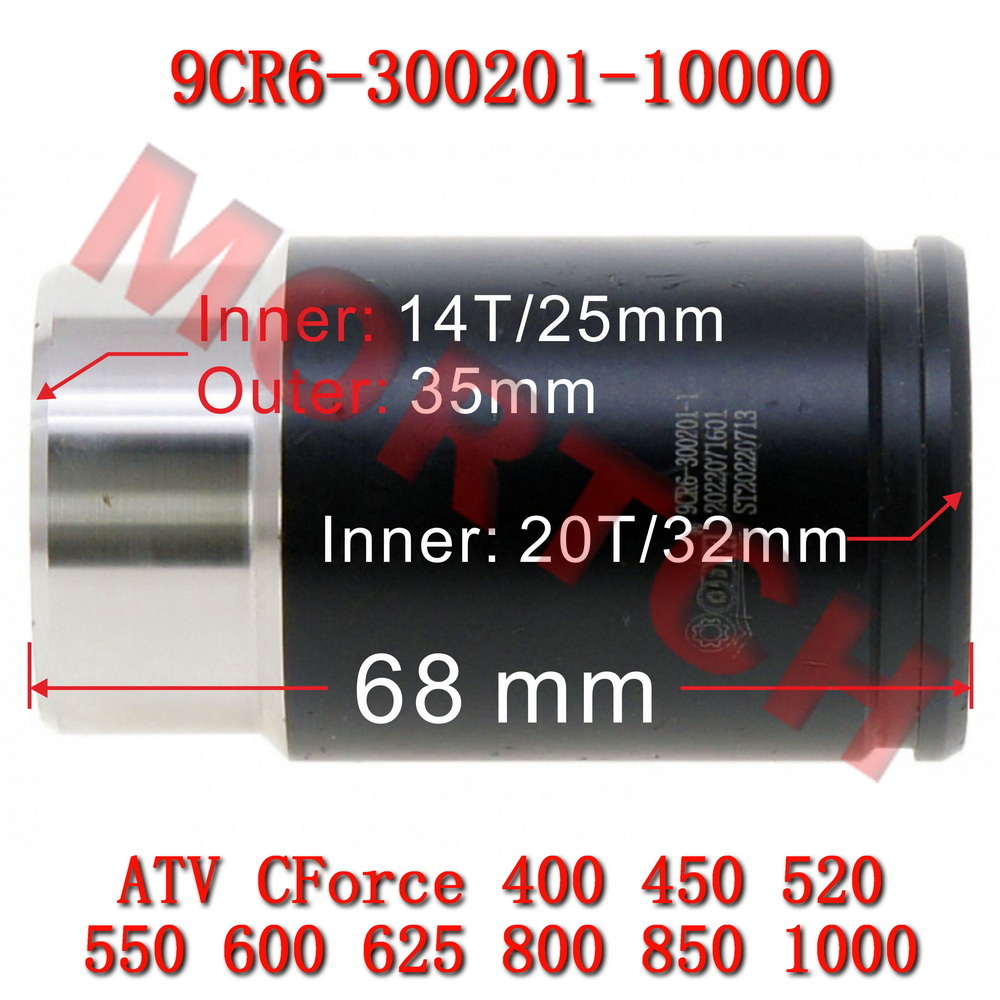

📐 Specifications

Part Number: 9CR6-300201-10000

Inner Spline: 14 Teeth / 25mm

Outer Spline: 20 Teeth / 32mm

Material: High-strength alloy steel

🔧 Compatible Models/Engines (Full List)

🏍️ 400cc Series — 191Q Engine

ATV CF400ATR CForce 450 191Q
ATV CF400ATR-L CForce 450L 191Q
ATV CF400AU CForce 400S/450S 191Q
ATV CF400AU-L CForce 400L/450L 191Q
ENGINE 191Q CForce 450
ENGINE 191Q FOR CF400ATR-4L/4S CForce 450S/L
ENGINE 191Q FOR CF400AU-3L/3S CForce 450S/L
ENGINE 191Q-A CForce 450
ENGINE 191Q-A FOR CF400AU-3L/3S CForce 450S/L
ENGINE 191Q-H CForce 450

🏍️ 500/550cc Series — 191R Engine

ATV CF500AU-7L CForce 520L 191R FOR CF500AU-7S&7L
ATV CF500AU-7S CForce 520 S 191R FOR CF500AU-7S&7L
ENGINE 191R FOR CF500ATR-11L/11S GOES TERROX 500L
ENGINE 191R FOR CF500ATR-5L&5S COBALT T3
ENGINE 191R FOR CF500ATR-5L/5S COBALT MAX T3
ENGINE 191R FOR CF500AU-7S/7L CForce 520S/L
ENGINE 191R FOR CF500AU-7SA/7LA CForce 520S/L
ENGINE 191R FOR CF500AU-9L/9S CForce 520 S/L
ENGINE 191R-C FOR CF500AU-6B CForce 550
ENGINE 191R-C FOR CF500AU-8S/8L CForce 550
ENGINE 191R-E CForce 550
ENGINE 191R-E FOR CF500AU-9L/9S CForce 520 S/L
ENGINE 191R-H CForce 550
ENGINE 191R-X550 CForce 550

🏍️ 600/625cc Series — 191S Engine

ENGINE 191S CForce 625
ENGINE 191S-A CForce 600 Touring/625 Touring
ENGINE 191S-B CForce 625 EPS
ENGINE 191S-U6 UForce 600

🏍️ 800/850cc Series — 2V91W Engine

ATV CF800ATR-3 CForce 850XC 2V91W-A
ATV CF800ATR-5 CForce 850 TOURING 2V91W-F
ATV CF800AU-2A CForce 850XC 2V91W-A
ATV CF800AU-2AF CForce 800XC/CForce 850XC 2V91W-D
ATV CF800AU-3 CForce 850 TOURING 2V91W-F
ATV CF800AZ-2A CForce 800XC 2V91W-A
ATV CF800AZ-3 CForce 800 TOURING/CForce 850 TOURING 2V91W-F
POLICE MOTORCYCLE CF800AU-2A(公务车) CForce 850XC 2V91W-A

🏍️ 1000cc Series — 2V91Y Engine

ATV CF1000ATR CForce 1000 2V91Y-X10
ATV CF1000ATR-2 CForce 1000 TOURING 2V91Y-F
ATV CF1000ATR-2A CForce 1000 OVERLAND 2V91Y-F
ATV CF1000ATR-3 CForce 1000 MV 2V91Y-F
ATV CF1000ATR-3L CForce 1000 2V91Y-F
ATV CF1000AU CForce 1000 EPS Overland 2V91Y-X10
ATV CF1000AU-2 CForce 1000 TOURING 2V91Y-F
ATV CF1000AU-F CForce 1000 2V91Y-C
ATV CF1000AZ CForce 1000 Overland 2V91Y-C
ATV CF1000AZ-2 CForce 1000 TOURING 2V91Y-F
ATV CF1000AZ-2A CForce 1000 OVERLAND 2V91Y-F
ATV CF1000AZ-3 CForce 1000 MV 2V91Y-F
POLICE MOTORCYCLE CF1000AU公务车 CForce 1000 EPS Overland 2V91Y-X10

🏍️ Other Models

ATV CF650AZ-S

📌 Compatibility Note: This engine drive sleeve fits the CFMoto 400cc (191Q), 500/550cc (191R), 600/625cc (191S), 800/850cc (2V91W) and 1000cc (2V91Y) engine models listed above. Please verify compatibility by checking your original part number 9CR6-300201-10000.

⚙️ Product Features

Direct OEM Replacement: Precisely matches CFMoto part number 9CR6-300201-10000.
Dual Spline Design: Inner spline 14T/25mm, outer spline 20T/32mm, connecting engine output shaft and drive system respectively.
High-Strength Alloy Steel: Made of high-quality alloy steel with heat treatment, providing excellent strength and torsional resistance.
Precision Machined: Accurate spline profile ensures perfect meshing with mating components for lossless power transmission.
Surface Treatment: Rust-resistant finish for corrosion protection and extended service life.

✅ Maintenance Tip: Worn drive sleeve can cause unstable power transmission, noise, and vibration. If you experience abnormal noise or uneven power delivery from the drive system, inspect the drive sleeve splines for wear. When replacing, it is recommended to inspect the mating engine output shaft and driveshaft splines.

⚠️ Installation Hint: Clean the inner and outer splines of the drive sleeve before installation, ensuring they are free of burrs and debris. Align the splines carefully during installation, ensuring the sleeve is fully seated. Check that the fit between the sleeve and shafts is tight with no axial play after installation.
