O-Ring 151x3

Brand: Mortch Motor
Product Code: MICF0180-334002

Product Viewed: 2

Availability: 33

Weight: 0.01kg

0 reviews / Write a review

US$0.86

Shipping To：

More Quotes

Qty

Buy Now

Tell a Friend Ask a Question

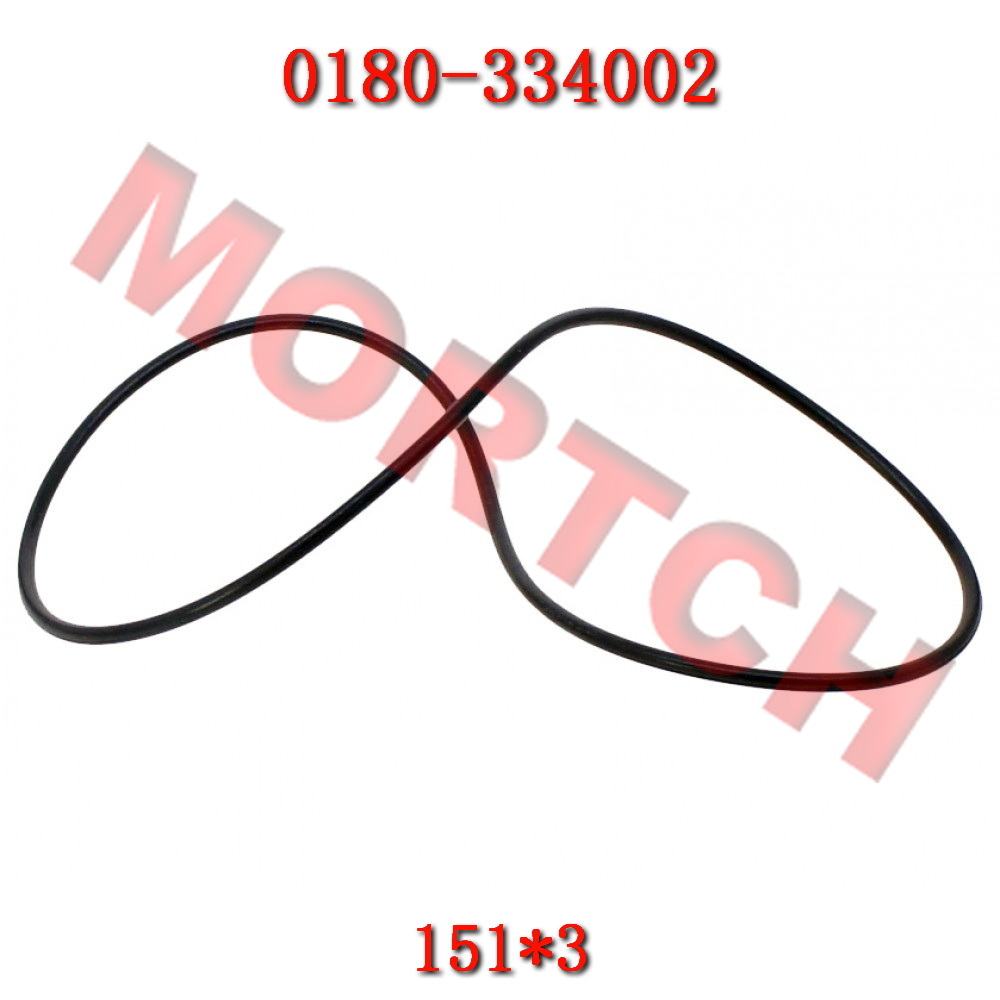

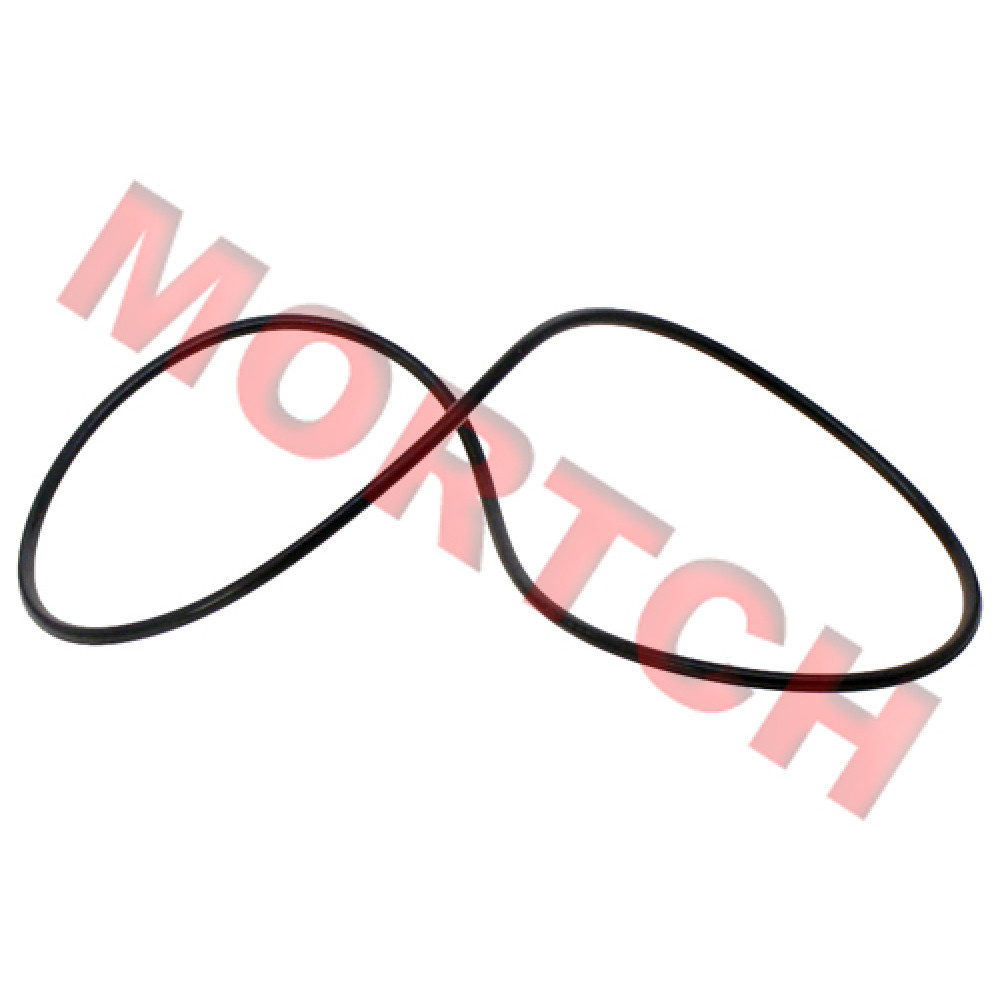

CF Moto O-Ring 151x3

Part Number: 0180-334002

Specification: 151mm x 3mm (ID x Cross-section)

Application: RH Cover, Rear Gear Case / Rear Axle Case

Product Type: Seal | O-Ring

OEM specification O-ring, size 151x3mm, used for sealing the right-hand cover of the rear axle or rear gear case. This product is compatible with various CF Moto ATV, SSV, and UTV models, covering 400cc to 1000cc displacements, including CForce, X5, X6, X8, ZForce, UForce series (2010-2021 model years). Manufactured strictly according to CF Moto original technical standards, ensuring a precise fit and reliable sealing performance.

📋 Product Overview

This product is an OEM-quality CF Moto O-ring, part number 0180-334002, specification 151mm x 3mm (inner diameter 151mm, cross-section 3mm). This O-ring is used for sealing the right-hand cover of the rear axle or rear gear case, preventing gear oil leakage and ensuring proper transmission system operation.

Manufactured strictly according to CF Moto original technical standards, ensuring a precise fit and reliable performance. The O-ring is made of high-quality oil-resistant rubber material with excellent elasticity and aging resistance, maintaining superior sealing effect even under high temperature and pressure conditions. This product can directly replace aged or damaged original seals.

🔧 OEM Quality Assurance: Manufactured to strict CF Moto original technical standards. Consistent with genuine parts in material, dimensional accuracy, and sealing performance, ensuring a perfect fit and reliable sealing effect.

📐 Specifications

Part Number:

0180-334002

Product Name:

O-Ring 151x3

Specification:

151mm x 3mm (ID x Cross-section)

Application:

RH Cover, Rear Gear Case / Rear Axle Case

Material:

Oil-resistant Rubber

Quantity:

1 Piece

🔧 Compatible Models

This O-ring (0180-334002) fits the following CF Moto models (2010-2021):

🏍️ ATV 1000cc Series - CForce 1000 (2018-2020)

ATV 2018 CF1000ATR CForce 1000
ATV 2019 CF1000ATR CForce 1000
ATV 2020 CF1000ATR CForce 1000
ATV 2018 CF1000AU CForce 1000
ATV 2019 CF1000AU CForce 1000
ATV 2020 CF1000AU CForce 1000
ATV 2020 CF1000AU(CA) CForce 1000

🏍️ ATV 800cc Series - CForce 800/850 / X8 (2011-2021)

ATV 2011 CF800-2 X8
ATV 2012 CF800-2 X8
ATV 2013 CF800-2 X8
ATV 2014 CF800-2 X8
ATV 2015 CF800-2 X8
ATV 2016 CF800-2 X8
ATV 2017 CF800-2 X8
ATV 2018 CF800-2 X8
ATV 2019 CF800-2 X8
ATV 2016 CF800ATR CForce 800
ATV 2016 CF800ATR-2 CForce 800
ATV 2017 CF800ATR-2 CForce 800
ATV 2018 CF800ATR-2 CForce 800
ATV 2019 CF800ATR-2 CForce 800
ATV 2020 CF800ATR-2 CForce 800
ATV 2017 CF800ATR-3 CForce 850XC
ATV 2018 CF800ATR-3 CForce 850XC
ATV 2019 CF800ATR-3 CForce 850XC
ATV 2020 CF800ATR-3 CForce 850XC
ATV 2017 CF800AU-2A CForce 800XC/CForce 850XC
ATV 2018 CF800AU-2A CForce 800XC/CForce 850XC
ATV 2019 CF800AU-2A CForce 800XC/CForce 850XC
ATV 2020 CF800AU-2A CForce 800XC/CForce 850XC
ATV 2020 CF800AU-2A(CA) CForce 800XC
ATV 2019 CF800AU-2A(US) CForce 800XC
ATV 2020 CF800AU-2A(US) CForce 800XC
ATV 2021 CF800AU-2A(US) CForce 800XC
ATV 2016 CF800AU-2B CForce 800
ATV 2017 CF800AU-2B CForce 800
ATV 2018 CF800AU-2B CForce 800
ATV 2019 CF800AU-2B CForce 800

🏍️ ATV 600/625cc Series - CForce 600/625 / X6 (2010-2020)

ATV 2019 CF600ATR-L(T3a) CForce 625
ATV 2020 CF600ATR-L(T3a) CForce 625
ATV 2018 CF600ATR-L(T3b) CForce 625 Touring
ATV 2019 CF600ATR-L(T3b) CForce 625 Touring
ATV 2020 CF600ATR-L(T3b) CForce 625 Touring
ATV 2019 CF600AU-L(INTERNATIONAL) CForce 600
ATV 2019 CF600AU-L(US) CForce 600
ATV 2012 CF600-B X6
ATV 2012 CF600-C X6
ATV 2013 CF600-C X6
ATV 2014 CF600-C X6
ATV 2015 CF600-C X6
ATV 2010 CF625-2 X6
ATV 2011 CF625-2 X6
ATV 2012 CF625-2 X6
ATV 2013 CF625-2 X6
ATV 2014 CF625-2 X6
ATV 2015 CF625-2 X6
ATV 2016 CF625-2 X6
ATV 2010 CF625-2A X6
ATV 2011 CF625-2A X6
ATV 2012 CF625-2A X6
ATV 2013 CF625-2A X6
ATV 2014 CF625-2A X6
ATV 2015 CF625-2A X6
ATV 2016 CF625-2A X6
ATV 2010 CF625-B X6
ATV 2011 CF625-B X6
ATV 2012 CF625-B X6
ATV 2013 CF625-B X6
ATV 2014 CF625-B X6
ATV 2015 CF625-B X6
ATV 2016 CF625-B X6
ATV 2010 CF625-C X6
ATV 2011 CF625-C X6
ATV 2012 CF625-C X6
ATV 2013 CF625-C X6
ATV 2014 CF625-C X6
ATV 2015 CF625-C X6
ATV 2016 CF625-C X6

🏍️ ATV 500cc Series - CForce 500/520/550 / X5 / COBALT / GOES (2010-2021)

ATV 2010 CF500 X5
ATV 2015 CF500ATR CForce 520
ATV 2017 CF500ATR-2L(T3a) CForce 520L
ATV 2016 CF500ATR-2L(T3b) CForce 520L
ATV 2017 CF500ATR-2S(T3a) CForce 520S
ATV 2016 CF500ATR-2S(T3b) CForce 520S
ATV 2016 CF500ATR-3 CForce 520
ATV 2018 CF500ATR-5L(T3b) COBALT MAX T3
ATV 2015 CF500ATR-A CForce 550
ATV 2014 CF500AU-6L CForce 550
ATV 2016 CF500AU-7L CForce 520L
ATV 2016 CF500AU-7S CForce 500S/CForce 520S
ATV 2012 CF500-B X5
ATV 2012 CF500-C X5
ATV 2010 CF500-D X5
ATV 2010 CF500-E X5
ATV 2012 GOES500

🏍️ ATV 400cc Series - CForce 400/450 / IRON (2014-2021)

ATV 2016 CF400ATR CForce 450
ATV 2017 CF400ATR-2L(T3a) CForce 450L
ATV 2016 CF400ATR-2L(T3b) CForce 450L
ATV 2017 CF400ATR-2S(T3a) CForce 450S
ATV 2016 CF400ATR-2S(T3b) CForce 450S
ATV 2018 CF400ATR-5L(T3b) IRON MAX T3
ATV 2016 CF400ATR-L CForce 450L
ATV 2014 CF400AU CForce 400S/450S
ATV 2014 CF400AU-L CForce 400L/450L
ATV 2019 CF400AU(US) CForce 400S
ATV 2020 CF400AU-L(CA) CForce 400L

🏎️ SSV Series - ZForce / Z6 (2010-2021)

SSV 2020 CF1000US ZForce 1000EX
SSV 2016 CF1000US-2 ZForce 1000
SSV 2020 CF1000US-A ZForce 950 Sport
SSV 2017 CF1000UTR-2 ZForce 1000
SSV 2014 CF500US ZForce 550
SSV 2015 CF500US-EX ZForce 550EX
SSV 2017 CF500UTR ZForce 550EX
SSV 2012 CF600-3 Z6
SSV 2010 CF625-3 Z6
SSV 2012 CF800 ZForce 800EX
SSV 2013 CF800US-A ZForce 800 Trail
SSV 2017 CF800UTR ZForce Z8-EX

🚙 UTV Series - UForce (2010-2021)

UTV 2018 CF1000UTR-3 UForce 1000
UTV 2018 CF1000UU UForce 1000
UTV 2010 CF500-3 UForce 500 U5
UTV 2017 CF500UTR-2 UForce 550
UTV 2013 CF500UU UForce 550
UTV 2011 CF600-5 UForce U6
UTV 2012 CF800-3 UForce 800
UTV 2017 CF800UTR-2 UForce 800
UTV 2014 CF800UU-A UForce 800

📌 Fitment Note: This O-ring (0180-334002, size 151x3mm) is compatible with the CF Moto ATV, SSV, and UTV models listed above for sealing the RH cover of the rear axle or rear gear case, covering model years 2010-2021. Due to the extensive list, only representative models are shown. If your specific model is not listed, please contact our customer service with the Vehicle Identification Number (VIN) for confirmation.

⚙️ Product Features

OEM Match: Dimensions and specifications fully comply with CF Moto original requirements.
Precision Manufacturing: Accurate 151x3mm size ensures perfect sealing.
Quality Material: Made of high-quality oil-resistant rubber with excellent elasticity and aging resistance.
High Temperature & Pressure Resistance: Maintains superior sealing effect even under high temperature and pressure conditions.
Leak Prevention: Effectively prevents gear oil leakage, protecting the transmission system.
Direct Fit: Remove the old part and directly replace it for a quick and easy installation.

✅ Signs of Failure: O-ring aging or damage may manifest as:
• Oil leakage from rear axle or gear case area.
• Rapid gear oil level drop.
• Oil stains around the cover.
• Hardened, cracked, or deformed O-ring.
If you experience any of these, inspect and replace the O-ring promptly.

✅ Installation Tips: Clean the installation groove thoroughly, ensuring it is free of oil and debris. Apply a small amount of lubricating oil to the new O-ring for easier installation and improved sealing. Tighten the cover bolts to the OEM specified torque.

⚠️ Important Notice: This product is a CF Moto O-ring, part number 0180-334002, size 151x3mm, used for sealing the RH cover of the rear axle or rear gear case. It is suitable for the CF Moto ATV, SSV, and UTV models listed above (2010-2021 model years). Variations may exist between different model years or production batches. If your specific model is not listed, please contact our customer service with the Vehicle Identification Number (VIN) to verify compatibility. Images are for reference only; the actual product may vary slightly due to batch differences.

🔧 Compatibility Notice

Please verify that this part fits your specific vehicle model and year. Many vehicles share similar names but use different components depending on year or market region.
We strongly recommend cross-checking with your vehicle's owner's manual or contacting us for confirmation before placing your order.
