Front Brake Sintered Pad

Brand: Mortch Motor
Product Code: MICF7020-0810B0

Product Viewed: 2

Availability: Pre-Order🔔

Weight: 0.28kg

0 reviews / Write a review

US$20.79 2 SOLD

Shipping To：

More Quotes

Qty

Pre-Order

Tell a Friend Ask a Question

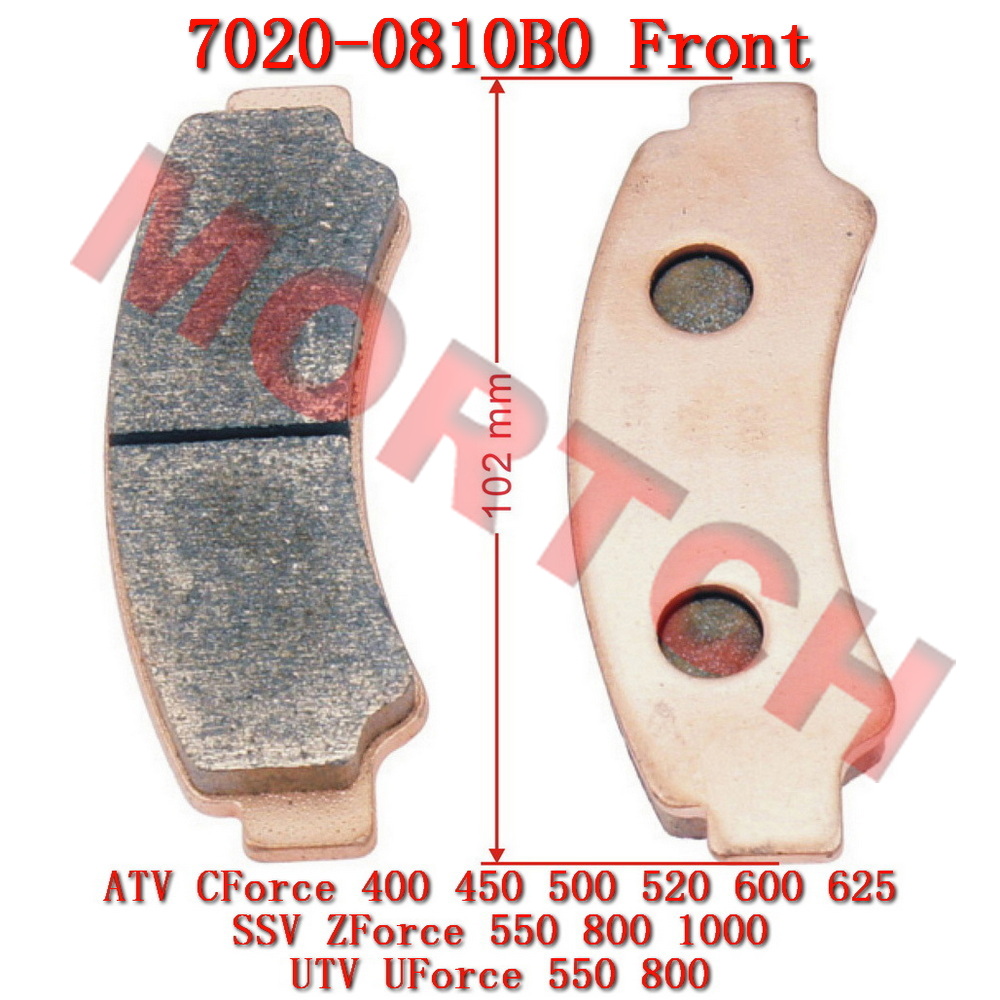

CF Moto Front Brake Sintered Pad

Part Number: 7020-0810B0

New Part Number: 5HYV-0811A0

Specification: 102 × 32 mm

Product Type: Brake System | Sintered Brake Pad

Position: Front Wheel

Product Description: OEM specification sintered front brake pad, dimensions 102×32mm. Sintered material provides superior wear resistance and high-temperature braking performance. Original part number 7020-0810B0 has been updated to new part number 5HYV-0811A0. Suitable for multiple CF Moto ATV, SSV, and UTV models.

📋 Product Overview

This product is an OEM specification sintered front brake pad for CF Moto vehicles, original part number 7020-0810B0, now updated to new part number 5HYV-0811A0. This brake pad measures 102 × 32 mm and is manufactured from sintered metal material. Compared to standard organic brake pads, sintered pads offer several advantages: higher wear resistance for extended service life; excellent high-temperature stability, maintaining consistent braking performance under frequent or heavy braking; better resistance to brake fade, ensuring braking safety under extreme conditions. Suitable for multiple CF Moto ATV, SSV, and UTV models, including CForce, IRON, COBALT, GOES TERROX, ZForce, UForce series, it is an ideal choice for users seeking enhanced braking performance.

Key Information:

Original Part Number: 7020-0810B0
New Part Number: 5HYV-0811A0
Product Name: Front Brake Sintered Pad
Dimensions: 102 × 32 mm
Material Type: Sintered Metal
Position: Front Wheel

🔄 Replacement Note: Part number 7020-0810B0 has been updated to 5HYV-0811A0. They are fully compatible, and you can confidently use the new part number. Please refer to the new part number when ordering.

📐 Specifications

Original Part Number:

7020-0810B0

New Part Number:

5HYV-0811A0

Dimensions:

102 × 32 mm

Material Type:

Sintered Metal

🔧 Complete Fitment List

🏍️ ATV Models

800cc Series

ATV CF800ATR-2 CForce 800
ATV CF800AU-2B CForce 800

600cc/625cc Series

ATV CF600ATR-2L(T3b) CForce 625 Touring
ATV CF600ATR-2LC CForce 625 Touring
ATV CF600ATR-2S(T3b) CForce 625
ATV CF600ATR-2SC CForce 625
ATV CF600ATR-L(T3a) CForce 600
ATV CF600ATR-L(T3b) CForce 600
ATV CF600AU-3L CForce 600 Touring/625 Touring
ATV CF600AU-3LA CForce 600 Touring/625 Touring
ATV CF600AU-3LF CForce 600 Touring/625 Touring
ATV CF600AU-3S CForce 600/625
ATV CF600AU-3SA CForce 625 EPS
ATV CF600AU-3SF CForce 600
ATV CF600AU-3SH CForce 600
ATV CF600AU-L(EU168) CForce 600
ATV CF600AZ-3L CForce 600
ATV CF600AZ-3LA CForce 600 Touring
ATV CF600AZ-3S CForce 600
ATV CF600AZ-3SA CForce 600

500cc/520cc/550cc Series

ATV CF500ATR-3 CForce 520
ATV CF500ATR-5L(T3b) COBALT MAX T3
ATV CF500ATR-5S(T3b) COBALT T3
ATV CF500AU-6B CForce 550
ATV CF500AU-7A CForce 520S
ATV CF500AU-7C CForce 520L
ATV CF500AU-7L CForce 520L
ATV CF500AU-7LA GOES TERROX 500L
ATV CF500AU-7LF CForce 520L
ATV CF500AU-7S CForce 520 S
ATV CF500AU-7SA GOES TERROX 500S
ATV CF500AU-7SF CForce 500S/CForce 520S
ATV CF500AU-8L COBALT MAX L7e
ATV CF500AU-8S COBALT L7e

400cc/450cc Series

ATV CF400ATR-5L(T3b) IRON MAX T3
ATV CF400ATR-5S(T3b) IRON T3
ATV CF400AU CForce 400S/450S
ATV CF400AU-2L IRON MAX L7e
ATV CF400AU-2S IRON L7e
ATV CF400AU-A CForce 450S
ATV CF400AU-B CForce 450L
ATV CF400AU-G GOES TERROX 400S
ATV CF400AU-L CForce 400L/450L
ATV CF400AU-LA GOES TERROX 400L
ATV CF400AU-LF CForce 450L
ATV CF400AU-SF CForce 450S

🚙 SSV Models (ZForce Series)

SSV CF1000US-2 ZForce 1000
SSV CF1000UTR-2 ZForce 1000
SSV CF500US ZForce 500 Trail
SSV CF500US-EX ZForce 550EX
SSV CF500UTR(T1a) ZForce 550EX
SSV CF500UTR(T1b) ZForce 550EX
SSV CF800 ZForce 800EX
SSV CF800US-A ZForce 800 Trail
SSV CF800UTR ZForce Z8-EX

🚜 UTV Models (UForce Series)

UTV CF500UTR-2 UForce 550
UTV CF500UU UForce 550
UTV CF800-3 UForce 800
UTV CF800UTR-2 UForce 800
UTV CF800UU-A UForce 800

👮 Police Models

POLICE MOTORCYCLE CF600AU-L（X6 Police） CForce 600
POLICE MOTORCYCLE CF800(Z8) ZForce 800EX

📌 Fitment Note: This front brake sintered pad (original part number 7020-0810B0, now updated to 5HYV-0811A0, dimensions 102×32mm) fits all CF Moto models listed above, including ATV, SSV, UTV and police versions. Please verify your specific model is included in the list before purchasing. If you have any questions, please contact our customer service with your Vehicle Identification Number (VIN) for compatibility confirmation.

⚙️ Sintered Brake Pad Advantages

Longer Life: Sintered metal material is more wear-resistant than organic materials, providing extended service life
High-Temperature Stability: Maintains consistent friction coefficient under high-temperature conditions
Fade Resistance: Less performance degradation during frequent braking
Heavy-Duty Suitable: Ideal for heavy ATVs and frequent high-intensity braking scenarios
Wet Performance: More stable braking performance in wet conditions

⚠️ When to Replace Brake Pads?

Sharp metal grinding noise when braking (wear indicator contact)
Increased braking distance, reduced braking power
Pedal/lever pulsation or vibration when braking
Visual inspection reveals uneven wear or cracking of friction material

For driving safety, regularly inspect brake pad wear and replace in a timely manner.

📌 Important Notice: This product is a CF Moto OEM specification front brake sintered pad, original part number 7020-0810B0, now updated to new part number 5HYV-0811A0, dimensions 102×32mm, manufactured from sintered metal material. It fits numerous CF Moto ATV, SSV, and UTV models listed above. Sintered brake pads offer superior wear resistance and high-temperature braking performance. The brake system is critical for vehicle safety; professional installation by a qualified technician is recommended. Perform brake testing after installation to ensure normal braking performance. Images are for reference only; the actual product may vary.

🔧 Compatibility Notice

Please verify that this part fits your specific vehicle model and year. Many vehicles share similar names but use different components depending on year or market region.
We strongly recommend cross-checking with your vehicle's owner's manual or contacting us for confirmation before placing your order.
