Oil Seal 32x55x10

Brand: Mortch Motor
Product Code: MICF0JY0-013103

Product Viewed: 6

Availability: 37

Weight: 0.04kg

0 reviews / Write a review

US$4.80

Shipping To：

More Quotes

Qty

Buy Now

Tell a Friend Ask a Question

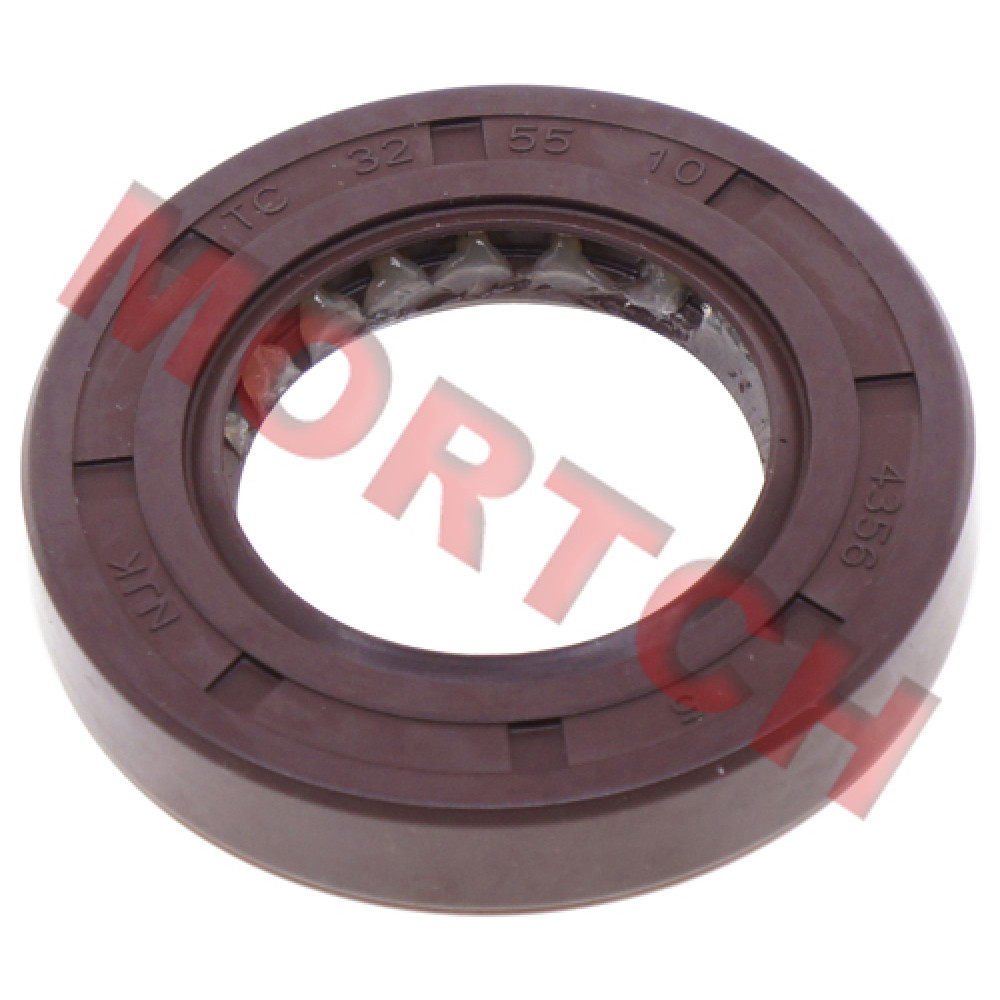

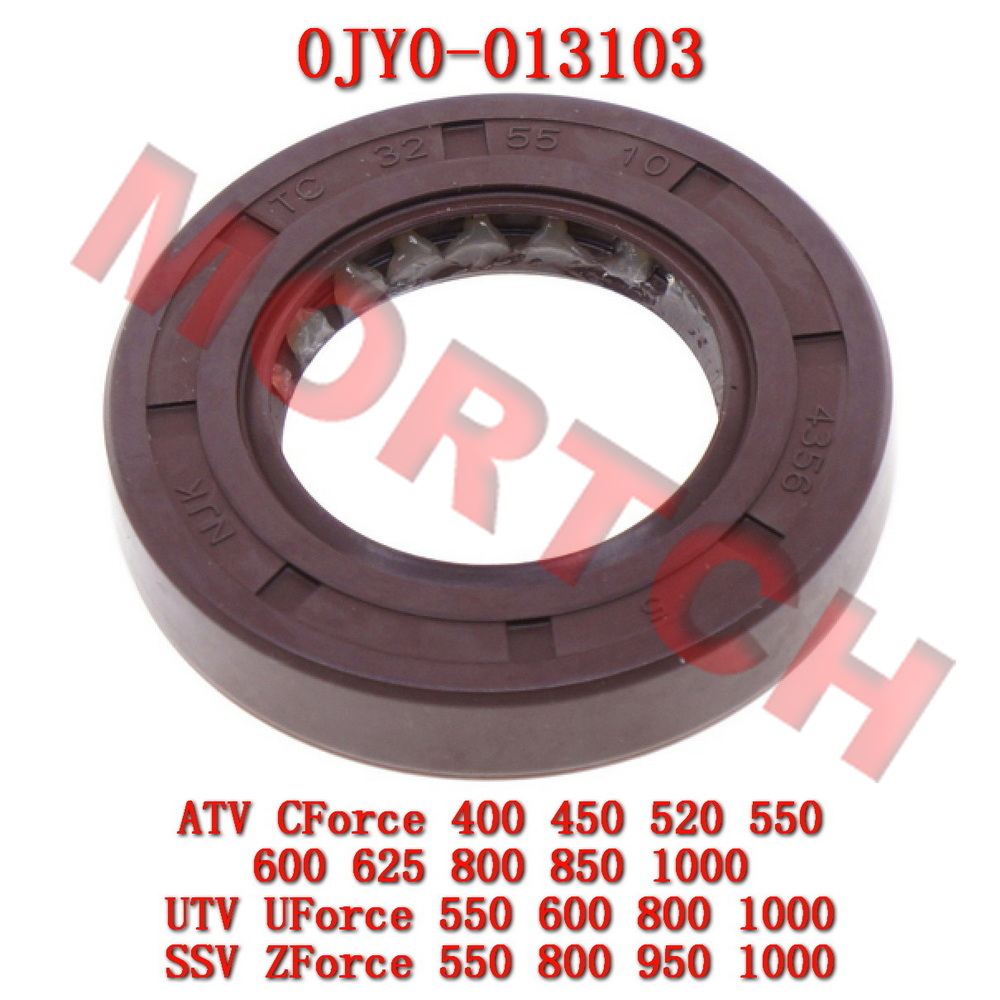

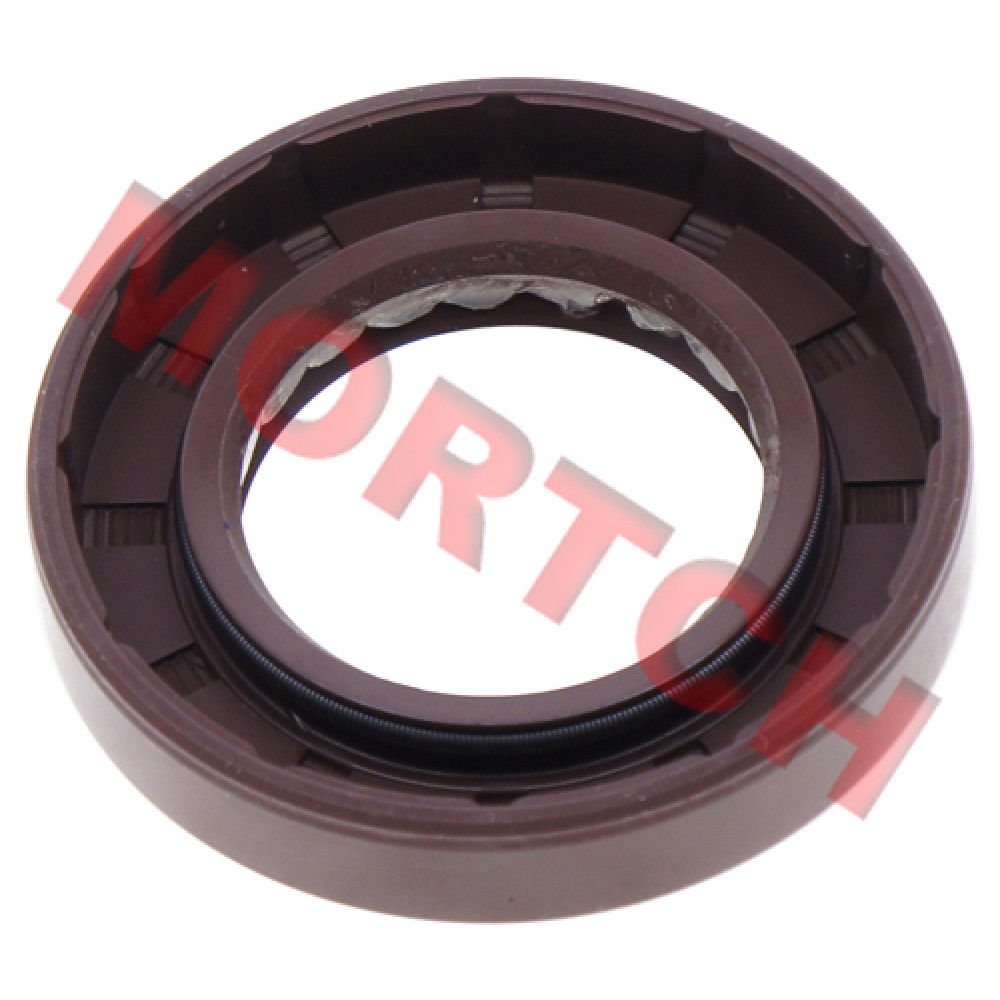

CFMoto Oil Seal 32x55x10

OEM Part Number 0JY0-013103

Dimensions: 32mm (Inner Diameter) x 55mm (Outer Diameter) x 10mm (Thickness)

Fits CFMoto 400cc / 500cc / 600cc / 800cc / 1000cc Multiple Models

📋 Product Overview

This is a genuine quality oil seal for CFMoto ATV/UTV/SSV models, directly replacing OEM part number 0JY0-013103. Dimensions: 32mm inner diameter, 55mm outer diameter, 10mm thickness. This seal is commonly used in the CVT transmission case, engine cases, and other rotating shaft applications to prevent oil leakage and keep contaminants out. Manufactured to OEM specifications, ensuring correct fitment and long-term durability.

✨ OEM Quality: Made from high-quality nitrile rubber with a steel outer case, providing excellent resistance to oil, heat, and wear.

📐 Specifications

Part Number 0JY0-013103

Dimensions (ID x OD x Thickness) 32mm x 55mm x 10mm

Type: TC Type (Double Lip with Spring)

🔧 Common Applications:

This oil seal is typically used in:

CVT transmission input/output shafts
Engine crankcase covers
Final drive housings
Differential carriers

Please verify your original part number and dimensions before ordering.

🔧 Compatible Models & Engines

🏍️ 400cc Series — 191Q Engine

CF400ATR CForce 450 Series (including 2L, 2S, 3L, 3S, 4L, 4S, L, 5L, 5S and many variants)
CF400AU CForce 400/450 Series (including 3L, 3S, 6S, A, B, G, L, LF, SF and many variants)
CF400AZ CForce 400/450 Series (including 3L, 3S, 6L, 6S and many variants)
GOES TERROX 400L / 400S
IRON MAX T3 / IRON T3 (L7e)
CForce 400 Classic / Touring

🏍️ 500/550cc Series — 191R / 191R-C / 191R-E / 191R-U550 / 191R-X550 / 191R-Z550 Engines

CF500ATR CForce 520/550 Series (including 2L, 2S, 3, 9L, 9S, 11L, 11S, A, 2LC, 2SC, 5L, 5S and many variants)
CF500AU CForce 500/520/550 Series (including 6B, 6L, 7A, 7C, 7L, 7S, 8L, 8S, 9S, 9L, 10S, 7LA, 7SA, 9SH and many variants)
CF500AZ CForce 500/520 Series (including 9S, 10S and many variants)
CF500US / CF500UTR / CF500UU ZForce / UForce 500/550 Series
COBALT / COBALT MAX Series
GOES TERROX 500L / 500S
UForce 550 / UForce 500
ZForce 500 Trail / 550EX

🏍️ 600/625cc Series — 191S / 191S-A / 191S-B Engines

CF600ATR CForce 600/625 Series (including 2L, 2LC, 2S, 2SC, L and many variants)
CF600AU CForce 600/625 Touring Series (including 3L, 3LA, 3LF, 3LH, 3S, 3SA, 3SF, L, 3SH and many variants)
CF600AZ CForce 600 Series (including 3L, 3LA, 3S, 3SA and many variants)
CF600UTR / CF600UU / CF600UZ UForce 600 Series

🏍️ 800/850cc Series — 2V91W / 2V91W-A / 2V91W-B / 2V91W-D / 2V91W-F / 2V91W-G / 2V91W-K / 2V91W-S Engines

CF800 / CF800ATR CForce 800/850 Series (including 2, 2B, 3, 5 and many variants)
CF800AU CForce 800XC/850XC Series (including 2A, 2AF, 3 and many variants)
CF800AZ CForce 800/850 Touring Series (including 2A, 3 and many variants)
CF800US / CF800UTR / CF800UU / CF800UZ ZForce / UForce 800 Series
CF800SU / CF800SZ ZForce 800 Trail / Sport Series
X8 / Z8 / U8 Series

🏍️ 1000cc Series — 2V91Y / 2V91Y-C / 2V91Y-D / 2V91Y-U10 / 2V91Y-X10 / 2V91Y-Z10 / 2V91Y-Z1000 Engines

CF1000ATR / CF1000AU CForce 1000 Series (including F and many variants)
CF1000AZ CForce 1000 Overland Series
CF1000US / CF1000UTR / CF1000UU / CF1000UZ ZForce / UForce 1000 Series
CF1000STR / CF1000SU / CF1000SZ ZForce 950/1000 Sport / Trail / Crew Series
CM1000UZ UForce 1000 Alpine Series
X10 / Z10 / U10 Series

📌 Compatibility Note: This oil seal fits the engine series listed above, covering CFMoto 400cc to 1000cc multiple models across ATV, UTV and SSV platforms. Due to the large number of variants, please verify your original part number or measure your old seal (32x55x10) to ensure correct fitment.

⚙️ Features

Direct OEM Replacement: Exactly matches CFMoto part number 0JY0-013103.
Precise Dimensions: 32mm inner diameter, 55mm outer diameter, 10mm thickness for perfect fit.
Double Lip Design: Primary lip retains oil, secondary lip excludes dirt and contaminants.
With Tension Spring: Ensures consistent lip pressure on the shaft for long-lasting sealing performance.
Durable Construction: Nitrile rubber lip material with steel outer case resists oil, heat, and wear.

✅ Service Tip: Oil seals should be replaced whenever the associated component is disassembled, or if leakage is observed. Always inspect the sealing surface on the shaft for scoring or wear - damage here will cause the new seal to leak prematurely. Lubricate the seal lip with clean grease or oil before installation.

⚠️ Installation Note: Clean the housing bore thoroughly before installation. Press the seal in evenly using a suitable socket or seal driver that contacts the outer case only - never tap directly on the seal center. Drive the seal to the correct depth, usually flush with the housing face unless a depth is specified. Avoid damaging the sealing lip on sharp edges or threads during installation.
