Clip, Piston Pin

Brand: Mortch Motor
Product Code: MICF0180-040003-0050

Product Viewed: 4

Availability: In Stock

Weight: 0.00kg

Packing Size: 9.00 x 9.00 x 7.00cm

0 reviews / Write a review

US$0.25

Shipping To：

More Quotes

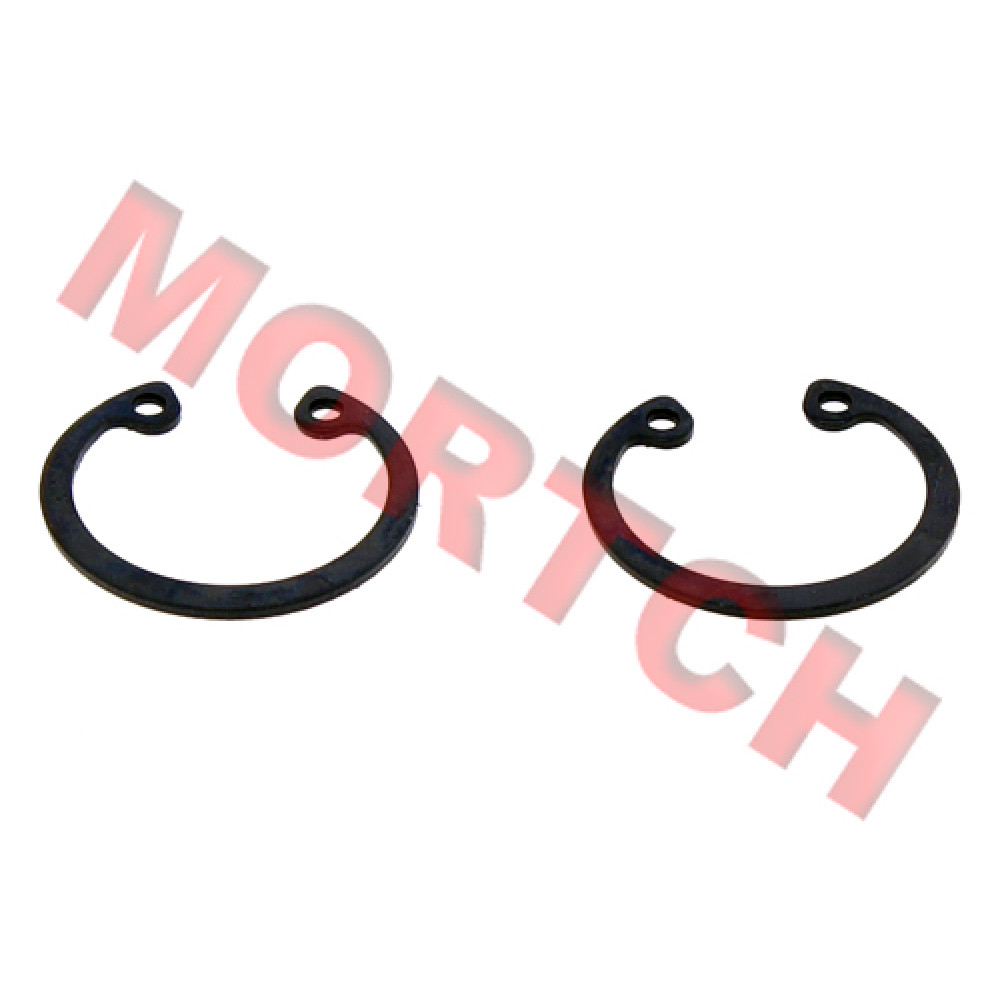

CFMoto / Linhai Piston Pin Clip (2pcs Pack)

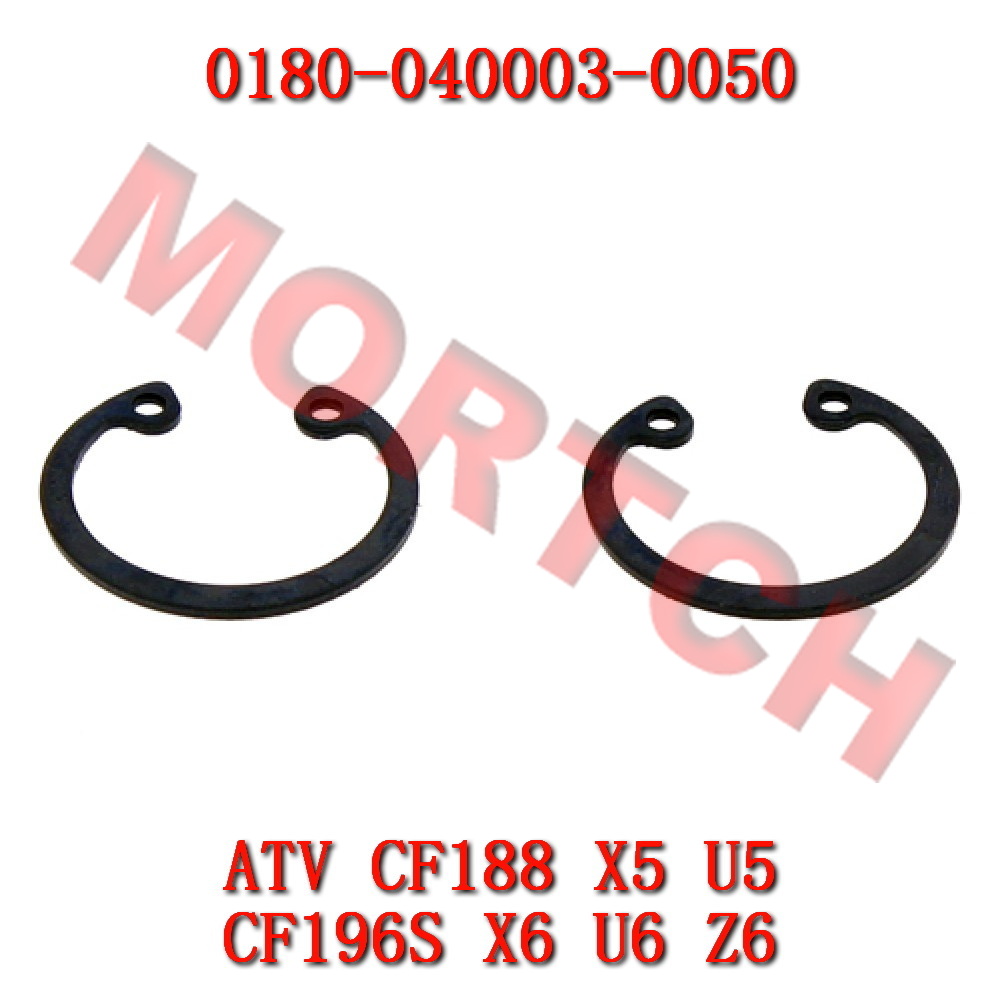

Replaces OEM: 0180-040003-0050 / CF188-040003 (CFMoto)

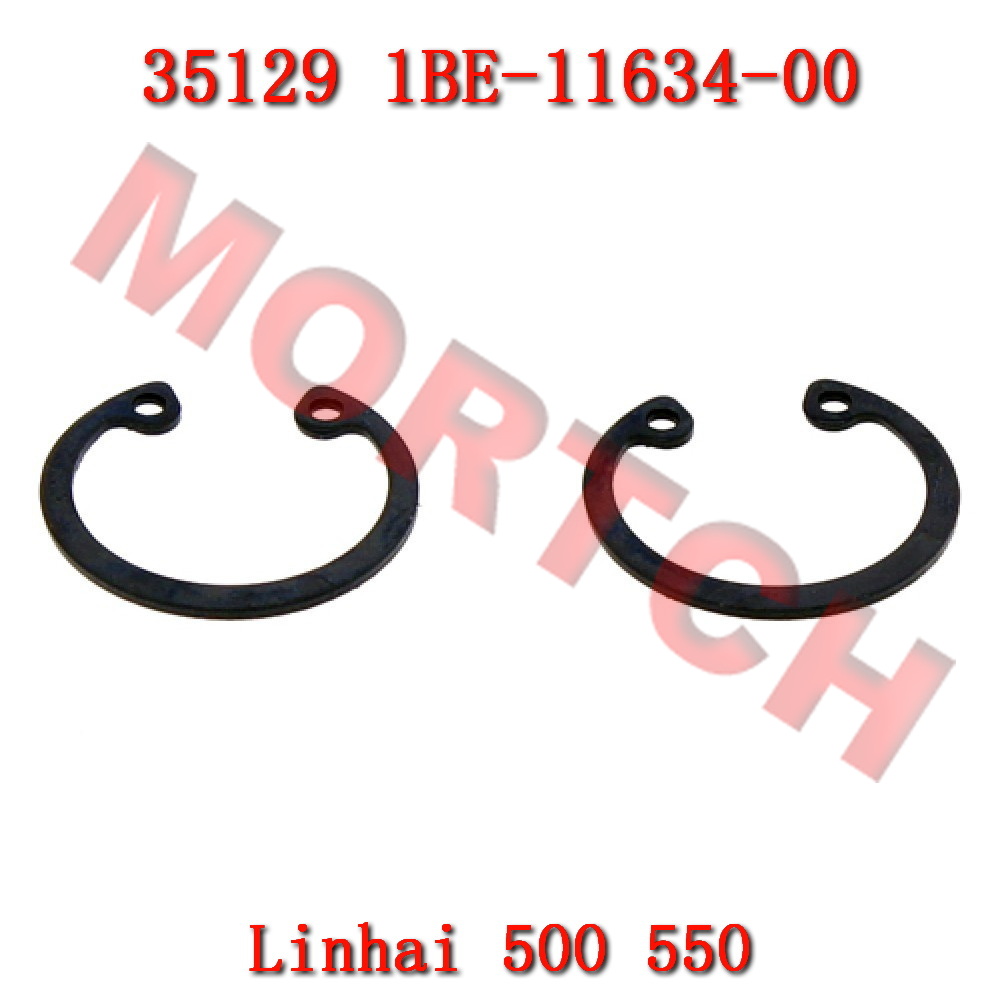

35129 / 1BE-11634-00 (Linhai)

Specs: 25×1mm (Diameter × Wire Diameter) | 2pcs per pack

Compatible with CFMoto 500cc / 600cc / 625cc and Linhai 500cc/550cc models

📋 Overview

These Piston Pin Clips are high-quality OEM replacement parts for CFMoto and Linhai, used to secure the piston pin and prevent axial movement within the piston. Each pack contains 2 clips, sufficient for one piston. They directly replace CFMoto OEM part numbers 0180-040003-0050 / CF188-040003 and Linhai OEM part numbers 35129 / 1BE-11634-00.

These clips measure 25×1mm (outer diameter × wire diameter) and are suitable for various CFMoto and Linhai models with displacements of 500cc, 550cc, 600cc, and 625cc, featuring CF188, 196S-B, 196S-C, and LH188MR engine series.

✨ OEM Quality: Manufactured from high-quality spring steel with precise elasticity and sufficient strength to securely retain the piston pin while allowing for easy installation. These are essential small parts during engine overhaul.

📐 Part Number Cross Reference

CFMoto Part # 0180-040003-0050 / CF188-040003

Linhai Part # 35129 / 1BE-11634-00

Specification 25×1mm

Pack Quantity 2pcs/pack

🔧 Detailed Vehicle Fitment List

🔩 500cc Series (CF188/CF188-A/CF188-B engines)

ATV CF500 X5 CF188
ATV CF500-2 X5 CF188
ATV CF500-2A X5 CF188
ATV CF500-5 X5 CF188
ATV CF500-5A X5 CF188
ATV CF500-5B X5 CF188-B
ATV CF500-5C X5 CF188-B
ATV CF500-A X5 CF188
ATV CF500-B X5 CF188
ATV CF500-C X5 CF188
ATV CF500-D X5 CF188
ATV CF500-E X5 CF188
UTV CF500-3 UForce 500 U5 CF188-A

🔩 600/625cc Series (196S-B engine)

ATV CF600-B X6 196S-B(X6)
ATV CF600-C X6 196S-B(X6)
ATV CF625-2 X6 196S-B(X6)
ATV CF625-2A X6 196S-B(X6)
ATV CF625-B X6 196S-B(X6)
ATV CF625-C X6 196S-B(X6)
UTV CF600-5 UForce U6 196S-B(U6)

🔩 600/625cc Series (196S-C engine)

SSV CF600-3 Z6 196S-C
SSV CF600-6 Z6 196S-C
SSV CF625-3 Z6 196S-C
SSV CF625-6 Z6 196S-C

🔩 Linhai 500/550cc Series (LH188MR engine)

Linhai 500cc models with LH188MR engine
Linhai 550cc models with LH188MR engine

📌 Compatibility Note: These piston pin clips fit the CFMoto 500cc-625cc models and Linhai 500cc/550cc models listed above, covering CF188, 196S-B, 196S-C, and LH188MR engine series. As piston pin dimensions may vary slightly, it is recommended to verify your original clip specifications (25×1mm) before purchasing.

⚙️ Product Features

Dual Brand Compatibility: Compatible with both CFMoto and Linhai models - one part number covers multiple engines.
High-Quality Spring Steel: Manufactured from high-quality spring steel with precise elasticity and sufficient strength for lasting retention.
Precise Dimensions: 25mm outer diameter and 1mm wire diameter manufactured to OEM specifications for perfect fit in piston pin grooves.
Rust Resistant: Surface treated for corrosion resistance to withstand harsh engine environments.
Economical Packaging: Each pack contains 2 clips, exactly the quantity needed for one piston, eliminating waste.

✅ Importance of Piston Pin Clip Replacement: Although small, piston pin clips play a critical role in securing the piston pin. If a clip loses tension, deforms, or breaks due to fatigue, the piston pin can move axially, potentially scoring the cylinder wall. In severe cases, clip fragments can fall into the oil pan or enter the combustion chamber, causing major engine damage. During any piston disassembly, always install new piston pin clips - never reuse old ones. This is a fundamental safety principle in engine repair.

⚠️ Ordering & Installation Notes: Please verify your vehicle model is listed in the fitment guide. When installing piston pin clips, ensure the clip is fully seated in the groove with the gap positioned away from the loaded side of the piston pin bore. Always verify proper installation to prevent clip dislodgement. Professional installation is recommended.
