EFI Rectifier - Voltage Regulator - 60A 700W

Brand: Mortch Motor
Product Code: MICF0800-177000-30000

Product Viewed: 4

Availability: 10

Weight: 0.65kg

0 reviews / Write a review

US$130.03

Shipping To：

More Quotes

Qty

Buy Now

Tell a Friend Ask a Question

CFMoto High-Power Regulator 9DS3 - For EPS System

Part Number: 0800-177000-10000

Product Type: Charging System | Voltage Regulator/Rectifier

Specifications: 60A 700W | Size 120*131*43mm | Model SMST110QF-3N

Application: High-power models equipped with EPS (Electric Power Steering)

Genuine high-power regulator rectifier, ensuring stable power supply for EPS system and all electrical components

📋 Product Overview

This product is a genuine CFMoto high-power voltage regulator/rectifier, part number 0800-177000-10000, model 9DS3, specifically designed for high-power models equipped with EPS (Electric Power Steering). The voltage regulator/rectifier is the core component of the charging system, responsible for converting AC from the generator to DC and stabilizing it at approximately 14V, powering all electrical components and charging the battery. This regulator features a high output capacity of 60A 700W, capable of meeting the demands of EPS systems and other high-power electrical devices, ensuring a stable and reliable electrical system.

Specifications:

Part Number: 0800-177000-10000
Model: 9DS3 / SMST110QF-3N
Output Capacity: 60A 700W (High-Power Type)

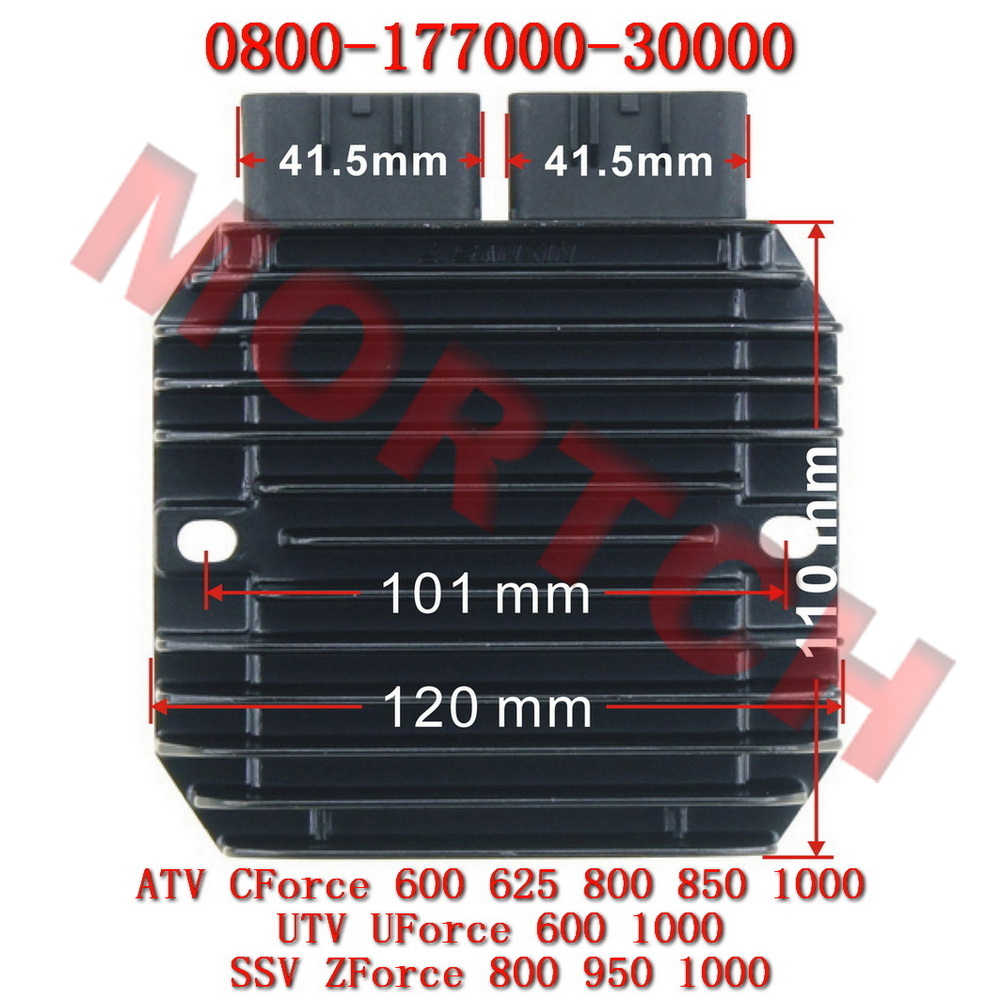

Dimensions: 120mm × 131mm × 43mm
Application: Models equipped with EPS

🔧 Genuine Quality Assurance: Manufactured strictly to CFMoto original technical standards. Electrical performance, heat dissipation, and stability are identical to OEM parts, ensuring proper charging system operation and extended battery life.

📐 Detailed Specifications

Part Number	Model	Output Power	Output Current	Dimensions (L×W×H)
0800-177000-10000	SMST110QF-3N	700W	60A	120×131×43mm

🔧 Complete Compatible Models List

🏍️ ATV Series

ATV CF1000ATR CForce 1000 2V91Y-X10
ATV CF1000ATR-2 CForce 1000 TOURING 2V91Y-F
ATV CF1000ATR-2A CForce 1000 OVERLAND 2V91Y-F
ATV CF1000ATR-3 CForce 1000 MV 2V91Y-F
ATV CF1000ATR-3L CForce 1000 2V91Y-F
ATV CF1000AU CForce 1000 EPS Overland 2V91Y-X10
ATV CF1000AU-2 CForce 1000 TOURING 2V91Y-F
ATV CF1000AU-F CForce 1000 2V91Y-C
ATV CF1000AZ-2 CForce 1000 TOURING 2V91Y-F
ATV CF1000AZ-2A CForce 1000 OVERLAND 2V91Y-F
ATV CF1000AZ-3 CForce 1000 MV 2V91Y-F
ATV CF600ATR-2L(T3b) CForce 625 Touring 191S
ATV CF600ATR-2LC CForce 625 Touring 191S-B
ATV CF600ATR-2S(T3b) CForce 625 191S
ATV CF600ATR-2SC CForce 625 191S-B
ATV CF600AU-3L CForce 600 Touring/625 Touring 191S
ATV CF600AU-3LF CForce 600 Touring/625 Touring 191S-A
ATV CF600AU-3S CForce 600/625 191S
ATV CF600AU-3SF CForce 600 191S-A
ATV CF600AZ-3L CForce 600 191S
ATV CF600AZ-3S CForce 600 191S-B
ATV CF800ATR-3 CForce 850XC 2V91W-A
ATV CF800ATR-5 CForce 850 TOURING 2V91W-F
ATV CF800AU-2A CForce 850XC 2V91W-A
ATV CF800AU-2AF CForce 800XC/CForce 850XC 2V91W-D
ATV CF800AU-3 CForce 850 TOURING 2V91W-F
ATV CF800AZ-2A CForce 800XC 2V91W-A
ATV CF800AZ-3 CForce 800 TOURING/CForce 850 TOURING 2V91W-F

👮 Police/Official Vehicles

POLICE MOTORCYCLE CF1000AU Official Vehicle CForce 1000 EPS Overland 2V91Y-X10
POLICE MOTORCYCLE CF1000US-J ZForce 1000

🏁 SSV Series

SSV CF1000STR-3L ZForce 950 SPORT-4 2V91Y-D(950 TRAIL/950 SPORT)
SSV CF1000SU-3 ZForce 950 TRAIL 2V91Y-D
SSV CF1000SU-3A ZForce 950 SPORT 2V91Y-D
SSV CF1000SU-3L ZForce 950 SPORT-4 2V91Y-D
SSV CF1000SU-D ZForce 950 H.O.EX/ZForce 1000 Sport R 2V91Y-D
SSV CF1000SU-E ZForce 950 H.0.SPORT 2V91Y-D
SSV CF1000SZ-3 ZForce 950 TRAIL 2V91Y-D
SSV CF1000SZ-3A ZForce 950 SPORT 2V91Y-D
SSV CF1000SZ-3L ZForce 950 Sport 4 2V91Y-D
SSV CF1000SZ-D ZForce 950 HO EX 2V91Y-D
SSV CF1000SZ-E ZForce 950 HO Sport 2V91Y-D
SSV CF1000US ZForce 1000EX 2V91Y-Z10
SSV CF1000US-A ZForce 950 Sport/ZForce 1000 Sport 2V91Y-Z10
SSV CF1000UTR-6(T1b) ZForce 1000 2V91Y-D(950 TRAIL/950 SPORT)
SSV CF1000UTR-B ZForce 1000 Sport 2V91Y-Z10
SSV CF1000UTR-C ZForce 1000 Sport 2V91Y-D
SSV CF800SU-2 ZForce 800 Trail 2V91W-B
SSV CF800SU-3 ZForce 800 SPROT 2V91W-G
SSV CF800SZ-2 ZForce 800 Trail 2V91W-B

🚜 UTV Series

UTV CF1000UTR-3 UForce 1000 2V91Y-U10
UTV CF1000UTR-5 UForce 1000 XL 2V91Y-U10
UTV CF1000UU UForce 1000 2V91Y-U10
UTV CF1000UU-2 UForce 1000 XL 2V91Y-U10
UTV CF1000UZ UForce 1000 2V91Y-U10
UTV CF1000UZ-2 UForce 1000 XL 2V91Y-U10
UTV CF600UTR(T1b) UForce 600 191S-U6
UTV CF600UU UForce 600 191S-U6
UTV CF600UZ UForce 600 191S

📌 Compatibility Note: This high-power regulator/rectifier fits CFMoto ATV, SSV, and UTV models listed above, especially those equipped with EPS (Electric Power Steering). Different suffixes indicate configuration or regional variations; this product remains compatible. Please verify your vehicle model before purchasing. If your vehicle is not listed, please contact customer service with your VIN for confirmation.

⚙️ Product Features

OEM Matching: Part number 0800-177000-10000 corresponds exactly to CFMoto official parts system, ensuring direct replacement with no modifications required.
High-Power Design: 60A 700W output capacity, specifically designed for models equipped with EPS, meeting high current demands.
Stable Output: Precise voltage regulation ensures stable output around 14V, protecting electrical components and extending battery life.
Efficient Heat Dissipation: Aluminum housing with excellent heat dissipation for long-term high-load operation.
Waterproof & Vibration Resistant: Sealed design, vibration resistant for harsh off-road conditions.
Plug & Play: OEM connectors for direct replacement, easy installation.

✅ Troubleshooting Tip: If the regulator/rectifier fails, you may experience: dead battery, hard starting, dim headlights, EPS assist failure, or charging warning light on the dashboard. Use a multimeter to check charging voltage for diagnosis.

✅ Installation Tip: Ensure ignition is off and disconnect battery negative terminal before installation. Note the wiring configuration of the original regulator and connect the new one accordingly. Ensure the regulator is securely mounted with good heat dissipation contact to the frame. Start the engine and measure charging voltage, which should be between 13.5V-14.5V.

⚠️ Important Note: This product is a CFMoto high-power regulator/rectifier, part number 0800-177000-10000, 60A 700W, compatible with models equipped with EPS system. Minor differences may exist between different years or batches. If your vehicle is not listed above, please contact customer service with your VIN for compatibility confirmation. Images are for reference only, actual product may vary.
