CF Moto Hub Bearing 30411-03081

Part Number: 30411-03081 (DAC30600337-2RSC1)

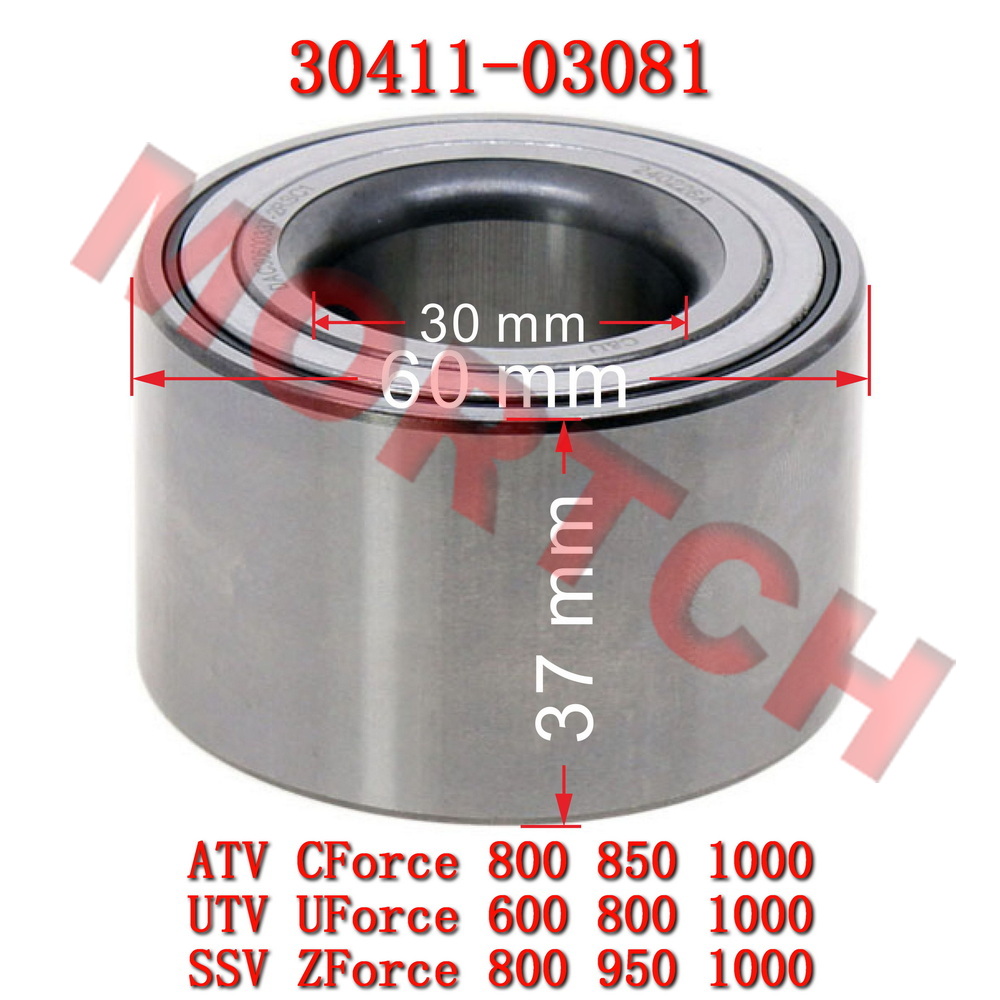

Specifications: 30mm x 60mm x 37mm (ID x OD x Width)

Product Type: Hub Bearing | Suspension/Wheel Component

Original specification hub bearing, used to support the wheel hub, ensuring smooth wheel rotation while bearing radial and axial loads during vehicle operation. Manufactured from high-quality bearing steel through precision grinding and heat treatment, offering high hardness, excellent wear resistance, and good fatigue strength. Produced strictly according to CF Moto original technical standards, ensuring dimensional accuracy and durability.

📋 Product Overview

This product is an original quality CF Moto hub bearing, part number 30411-03081, industry standard number DAC30600337-2RSC1, with dimensions 30mm x 60mm x 37mm (inner diameter x outer diameter x width). The hub bearing is a critical component in the wheel assembly, supporting the wheel hub to ensure smooth rotation while bearing radial and axial loads during vehicle operation.

This bearing is manufactured from high-quality bearing steel through precision grinding and heat treatment processes, offering high hardness, excellent wear resistance, and good fatigue strength. The double-row angular contact ball bearing design can withstand both radial and axial loads simultaneously, providing stable support and long service life. It features rubber seals on both sides (2RSC1), effectively preventing dust and moisture from entering the bearing interior, extending service life. It is pre-greased with long-life lubricant for maintenance-free or extended maintenance intervals. Produced strictly according to CF Moto original technical standards, it guarantees consistency with the original part in dimensions, tolerances, and load capacity, ensuring vehicle handling stability and driving safety.

🔧 Original Quality Assurance: Manufactured strictly according to CF Moto original technical standards. Consistent with the original part in material, dimensional tolerances, and load capacity, ensuring perfect fit and reliable performance.

📐 Specifications

Part Number:

30411-03081

Industry Number:

DAC30600337-2RSC1

Product Name:

Hub Bearing

Dimensions:

30mm x 60mm x 37mm

Inner Diameter:

30mm

Outer Diameter:

60mm

Width:

37mm

Seal Type:

Double Rubber Seal (2RSC1)

System:

Wheel Hub Assembly

🔧 Applicable CF Moto Models

This Hub Bearing (30411-03081) fits the following CF Moto models:

🏍️ ATV 1000cc Series

ATV CF1000ATR CForce 1000
ATV CF1000ATR-2 CForce 1000 TOURING
ATV CF1000ATR-2A CForce 1000 OVERLAND
ATV CF1000ATR-3 CForce 1000 MV
ATV CF1000ATR-3L CForce 1000
ATV CF1000AU CForce 1000 EPS Overland
ATV CF1000AU-2 CForce 1000 TOURING
ATV CF1000AU-F CForce 1000
ATV CF1000AZ CForce 1000 Overland
ATV CF1000AZ-2 CForce 1000 TOURING
ATV CF1000AZ-2A CForce 1000 OVERLAND
ATV CF1000AZ-3 CForce 1000 MV

🏍️ ATV 800/850cc Series

ATV CF800ATR-3 CForce 850XC
ATV CF800ATR-5 CForce 850 TOURING
ATV CF800AU-2A CForce 850XC
ATV CF800AU-2AF CForce 800XC/CForce 850XC
ATV CF800AU-3 CForce 850 TOURING
ATV CF800AZ-2A CForce 800XC
ATV CF800AZ-3 CForce 800 TOURING/CForce 850 TOURING

🏎️ SSV Series (ZForce)

SSV CF1000STR-3L ZForce 950 SPORT-4
SSV CF1000SU-3 ZForce 950 TRAIL
SSV CF1000SU-3A ZForce 950 SPORT
SSV CF1000SU-3L ZForce 950 SPORT-4
SSV CF1000SU-D ZForce 950 H.O.EX/ZForce 1000 Sport R
SSV CF1000SU-E ZForce 950 H.0.SPORT
SSV CF1000SZ-3 ZForce 950 TRAIL
SSV CF1000SZ-3A ZForce 950 SPORT
SSV CF1000SZ-3L ZForce 950 Sport 4
SSV CF1000SZ-D ZForce 950 HO EX
SSV CF1000SZ-E ZForce 950 HO Sport
SSV CF1000UTR-6(T1b) ZForce 1000
SSV CF1000UTR-C ZForce 1000 Sport
SSV CF800SU-2 ZForce 800 Trail
SSV CF800SU-3 ZForce 800 SPROT
SSV CF800SZ-2 ZForce 800 Trail
SSV CF800SZ-3 ZForce 800 Trail

🚙 UTV Series (UForce)

UTV CF1000UTR-3 UForce 1000
UTV CF1000UTR-5 UForce 1000 XL
UTV CF1000UU UForce 1000
UTV CF1000UU-2 UForce 1000 XL
UTV CF1000UZ UForce 1000
UTV CF1000UZ-2 UForce 1000 XL
UTV CF200DUTR
UTV CF200DUU
UTV CF600UTR(T1b) UForce 600
UTV CF600UU UForce 600
UTV CF600UZ UForce 600
UTV CF800UTR-4 UForce 800 XL
UTV CF800UU-4 UForce 800 XL
UTV CF800UZ-4 UForce 800
UTV CM1000UZ-2A UForce 1000 XL Alpine
UTV CM1000UZ-A UForce 1000 Alpine

👮 Police Models

POLICE MOTORCYCLE CF1000UU-2(Police) UForce 1000 XL
POLICE MOTORCYCLE CF600UU(Police) UForce 600
POLICE MOTORCYCLE CF800AU-2A(Official) CForce 850XC

📌 Application Note: This Hub Bearing (30411-03081) is suitable for the CF Moto ATV, SSV, UTV, and Police models listed above. As wheel hub designs may vary by model year or configuration, if your specific model is not listed, please contact our customer service with the Vehicle Identification Number (VIN) for confirmation.

⚙️ Product Features

High-Quality Bearing Steel: Made from high-purity bearing steel, offering high hardness and excellent wear resistance.
Precision Machined: Rolling elements and raceways are precision ground for smooth operation and low friction.
Double-Row Design: Double-row angular contact ball bearing design handles both radial and axial loads.
Double Seals: Rubber seals on both sides (2RSC1) effectively prevent dust and moisture ingress.
Long-Life Lubrication: Pre-greased with high-quality lubricant for extended maintenance intervals.

✅ Inspection Tip: Common conditions for hub bearings:
• Humming or clunking noise while driving, especially when turning.
• Wheel wobble or excessive play.
• Abnormal vibration during braking or acceleration.
• Damaged bearing seals, grease leakage or contamination.
If any of these occur, please inspect and replace the hub bearing promptly to ensure driving safety.

✅ Installation Tip: Bearing installation requires specialized tools. Avoid hammering directly on the bearing to prevent damage. Clean the mounting bore and shaft journal before installation and apply a small amount of lubricant. Ensure the bearing is fully seated and secured with a circlip or other retainer. After installation, check that the bearing rotates smoothly without binding. A wheel alignment check is recommended after replacement.

⚠️ Important Notice: This product is a CF Moto Hub Bearing, part number 30411-03081, industry number DAC30600337-2RSC1, specifications 30mm x 60mm x 37mm. It is suitable for the CF Moto ATV, SSV, UTV, and Police models listed above. Minor differences may exist between different model years or production batches. If your specific model is not listed, please contact our customer service with the Vehicle Identification Number (VIN) to verify compatibility. Images are for reference only; the actual product may vary slightly due to different batches.
