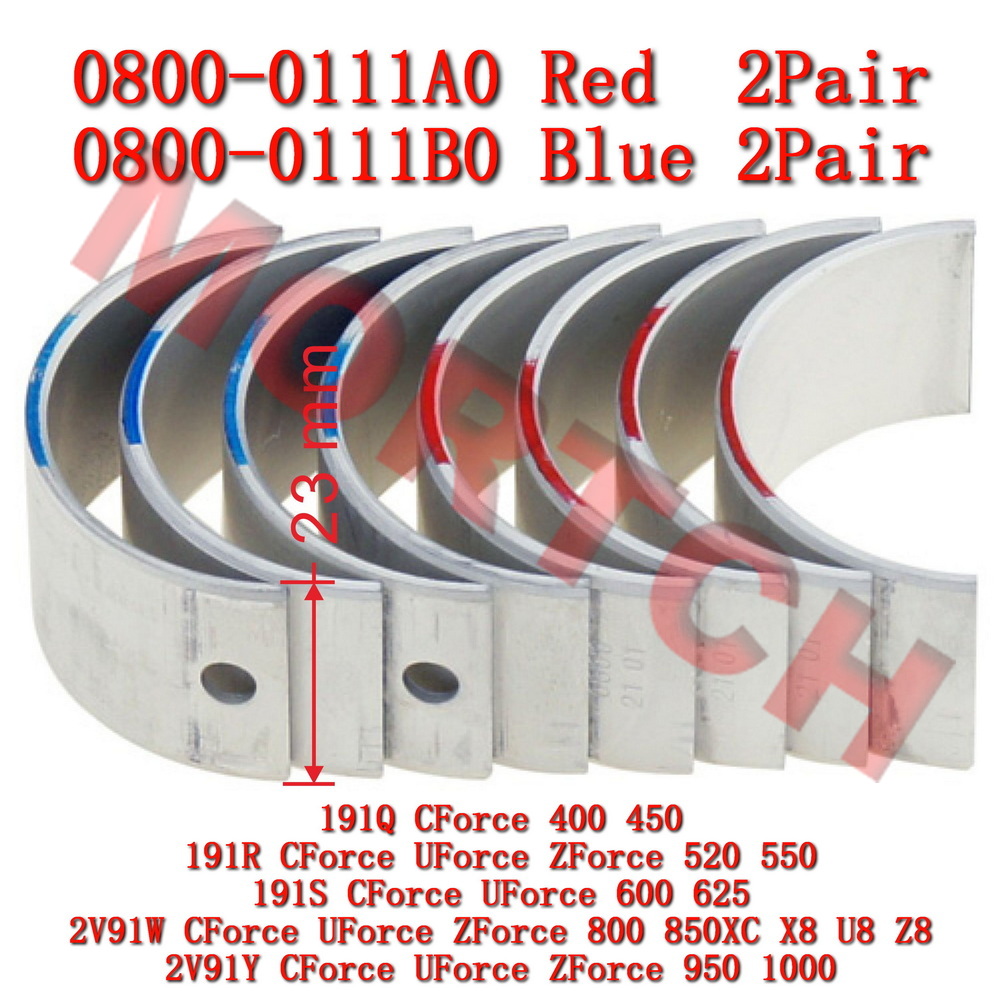

CFMoto Bearing Sleeve (Red/Blue Sets)

OEM Part Numbers: Red Set / Blue Set

Fits CFMoto 800cc / 1000cc Multiple Models (2V91W / 2V91Y Engines)

Width: 23mm | Select by Mark "A" (Red Thin) or Mark "B" (Blue Thick)

📋 Product Overview

This is a genuine quality bearing sleeve set (crankshaft main bearing insert) for CFMoto, used for precision fit in the engine crankcase main bearing journals. Available in two specifications:

🔴 Red Set (Thin)

0800-011103-0001 / 0JWA-011103-00010

0800-011102-0001 / 0JWA-011102-00010

New Part: 0800-0111A0 (Red)

🔵 Blue Set (Thick)

0800-011103-0002 / 0JWA-011103-00020

0800-011102-0002 / 0JWA-011102-00020

New Part: 0800-0111B0 (Blue)

Uniform Width: 23mm

Selection Guide: If your LH/RH crankcase is marked "A", use the Red (thin) bearing sleeve; if marked "B", use the Blue (thick) bearing sleeve.

✨ OEM Quality: Strictly manufactured to CFMoto original standards, with precise thickness tolerance to ensure optimal clearance with the crankshaft main journals. Each set includes the required number of bearing shells (upper and lower).

📐 Specifications

Red Set (Thin):

Part Numbers: 0800-011103-0001 / 0JWA-011103-00010 (Upper)

0800-011102-0001 / 0JWA-011102-00010 (Lower)

New Part: 0800-0111A0

Blue Set (Thick):

Part Numbers: 0800-011103-0002 / 0JWA-011103-00020 (Upper)

0800-011102-0002 / 0JWA-011102-00020 (Lower)

New Part: 0800-0111B0

Width: 23mm (Standard)

🔍 How to Select the Correct Size:

Check the marking on your LH/RH crankcase:

Mark "A" → Use Red (Thin) Bearing Sleeve (0800-0111A0)
Mark "B" → Use Blue (Thick) Bearing Sleeve (0800-0111B0)

If the marking is worn or illegible, measure the old bearing sleeve thickness or consult your dealer.

🔧 Compatible Models & Engines

🏍️ 800/850cc Series — 2V91W / 2V91W-A / 2V91W-B / 2V91W-D / 2V91W-S Engines

CF800 / CF800ATR CForce 800/850 Series (2, 2B, 3 and many variants)
CF800AU CForce 800XC/850XC Series (2A, 2AF, 2B and many variants)
CF800AZ CForce 800XC Series (2A and many variants)
CF800US / CF800UTR / CF800UU / CF800UZ ZForce / UForce 800 Series
CF800SU / CF800SZ ZForce 800 Trail / Sport Series
X8 / Z8 / U8 Series

🏍️ 1000cc Series — 2V91Y / 2V91Y-C / 2V91Y-D / 2V91Y-U10 / 2V91Y-X10 / 2V91Y-Z10 / 2V91Y-Z1000 Engines

CF1000ATR / CF1000AU CForce 1000 Series (including F and many variants)
CF1000AZ CForce 1000 Overland Series
CF1000US / CF1000UTR / CF1000UU / CF1000UZ ZForce / UForce 1000 Series
CF1000STR / CF1000SU / CF1000SZ ZForce 950/1000 Sport / Trail / Crew Series
CM1000UZ UForce 1000 Alpine Series
X10 / Z10 / U10 Series

📌 Compatibility Note: This bearing sleeve set fits the 2V91W and 2V91Y engine series listed above, covering CFMoto 800cc and 1000cc multiple ATV, UTV and SSV models. Due to the large number of variants, this list summarizes the main compatible models. Please ensure you select the correct size based on the marking "A" or "B" on your crankcase (Red thin or Blue thick). If in doubt, provide your engine model or crankcase marking for verification.

⚙️ Features

Direct OEM Replacement: Exactly matches CFMoto original part numbers, available in Red (thin) and Blue (thick) specifications.
Precise Thickness Tolerance: Two thickness options (Red thin, Blue thick) ensure optimal clearance with the crankshaft main journals.
High-Quality Alloy Material: Made from high-strength wear-resistant alloy with special surface treatment, providing excellent anti-fatigue and friction-reducing properties.
Accurate Positioning: Standard width 23mm with locating tang, ensuring correct orientation and preventing rotation during operation.
Supplied as a Set: Each set includes upper and lower bearing shells to ensure matching consistency.

✅ Service Tip: Bearing sleeves are precision fit components, typically replaced during engine overhaul, crankshaft repair, or when abnormal noise or low oil pressure occurs. When replacing, thoroughly clean the shaft journal and bearing housing, inspect the journal surface for damage. Ensure the locating tang is correctly seated in the housing groove and apply clean engine oil during installation. Tighten main bearing cap bolts to the torque specified in your service manual.

⚠️ Installation Note: Before installation, verify the crankcase marking and select the correct thickness bearing sleeve. Keep the bearing and journal absolutely clean. Use Plastigage to check oil clearance meets specifications. Use a torque wrench and tighten bolts in a diagonal sequence to the specified torque. After installation, rotate the crankshaft by hand to ensure smooth rotation without binding.
