CVT Case Plain Bearing

Brand: Mortch Motor
Product Code: MICF0JY0-013102-000A0

Product Viewed: 20

Availability: In Stock

Weight: 0.10kg

0 reviews / Write a review

US$18.00

Shipping To：

More Quotes

CFMoto CVT Case Plain Bearing

OEM Part Number 0JY0-013102-00010 / 0JY0-013102-00020

Fits CFMoto 400cc / 500cc / 600cc / 800cc / 1000cc Multiple Models

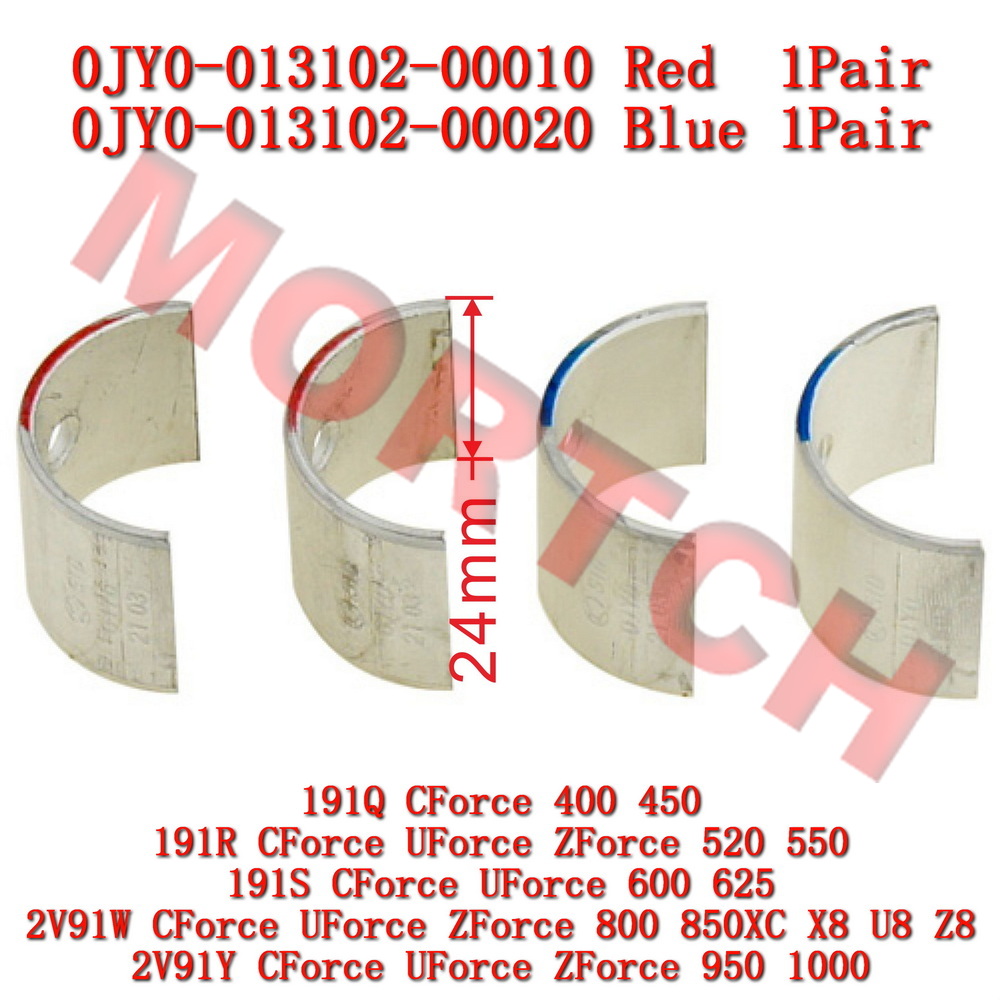

Width: 24mm | Select by Mark "A" (Red Thin) or Mark "B" (Blue Thick)

📋 Product Overview

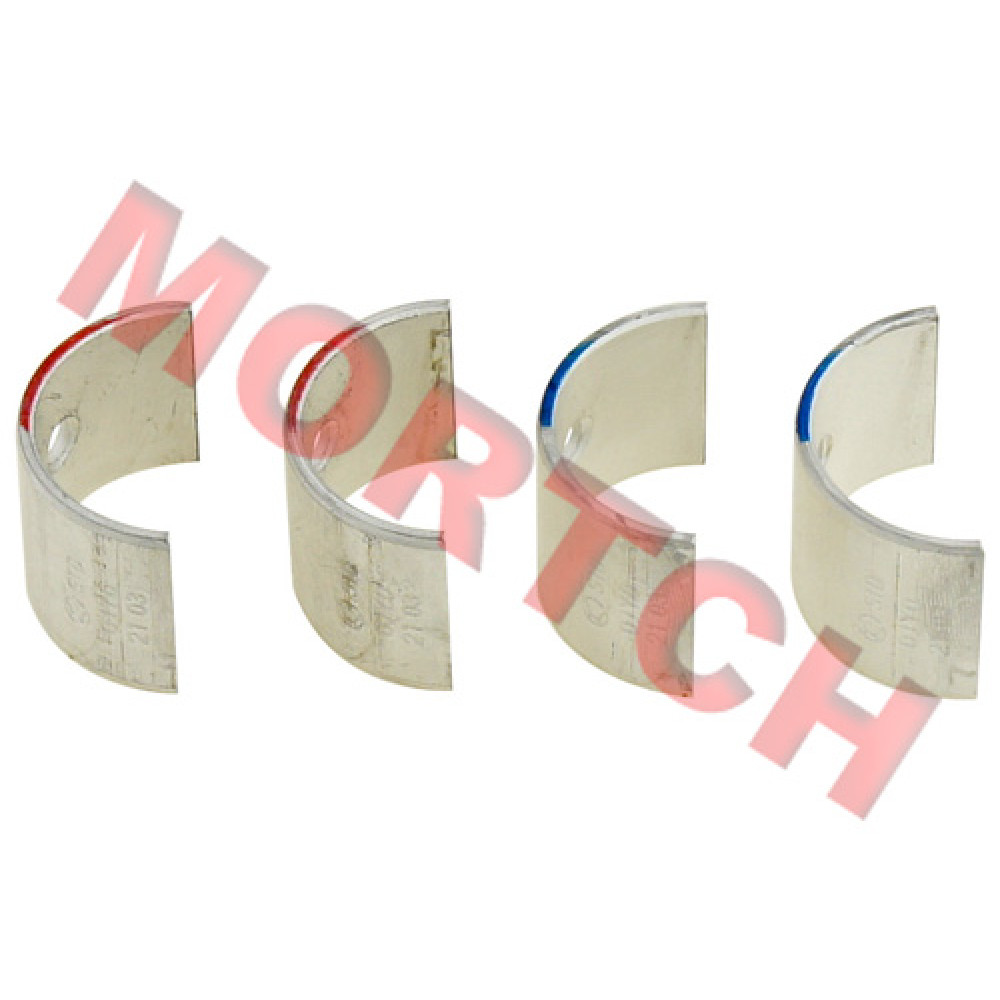

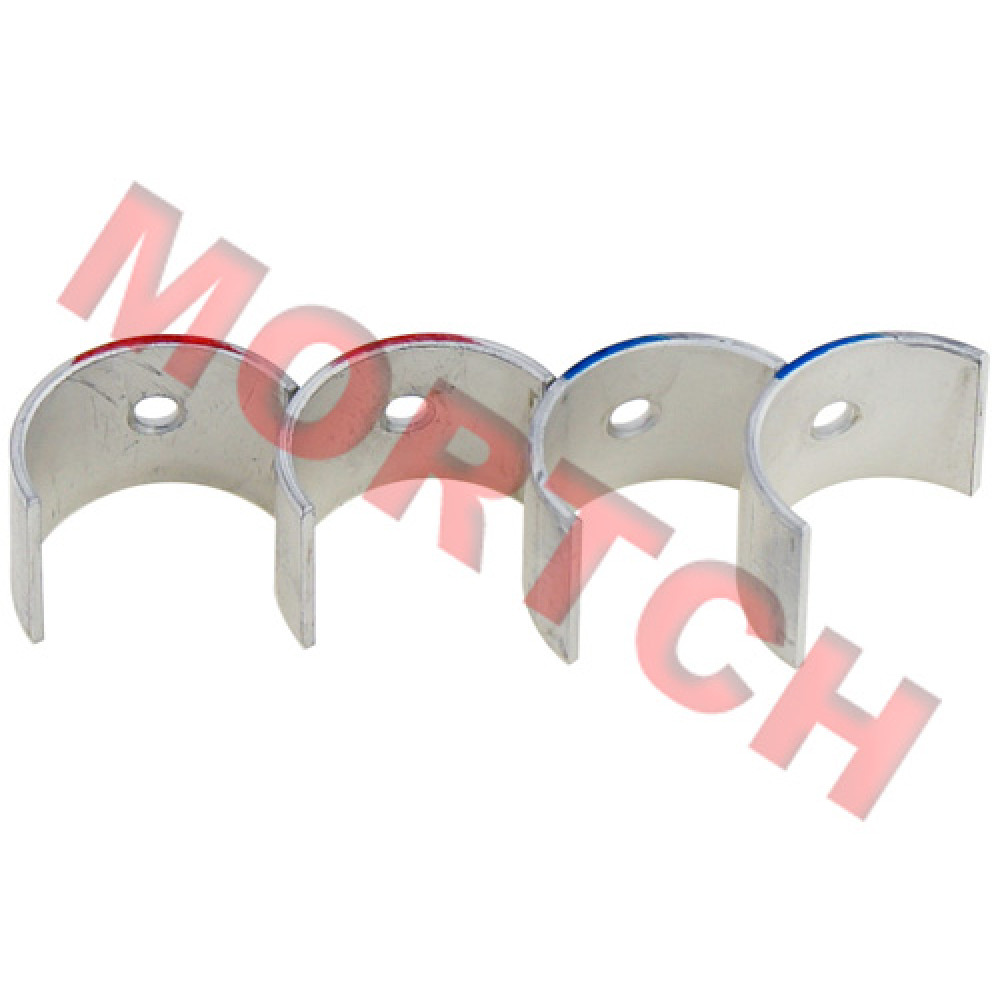

This is a genuine quality CVT case plain bearing (also known as sliding bearing) for CFMoto, used for supporting rotating shafts inside the CVT transmission. Available in two specifications:

Red (Thin) Part Number 0JY0-013102-00010 Thickness +0.014~+0.019mm
Blue (Thick) Part Number 0JY0-013102-00020 Thickness +0.019~+0.024mm

Selection Guide: If your CVT case is marked "A", use the Red plain bearing; if marked "B", use the Blue plain bearing. Width is统一的 24mm. Manufactured to OEM specifications, ensuring installation accuracy and long-term durability.

✨ OEM Quality: Strictly manufactured to CFMoto original standards, with precise thickness tolerance to ensure optimal clearance with the crankshaft/countershaft.

📐 Specifications

Red (Thin) Part Number 0JY0-013102-00010 Thickness +0.014 ~ +0.019mm

Blue (Thick) Part Number 0JY0-013102-00020 Thickness +0.019 ~ +0.024mm

Width: 24mm (Standard)

🔍 How to Select the Correct Size:

Check the marking on your CVT case:

Mark "A" → Use Red (Thin) Bearing (0JY0-013102-00010)
Mark "B" → Use Blue (Thick) Bearing (0JY0-013102-00020)

If the marking is worn or illegible, measure the old bearing thickness or consult your dealer.

🔧 Compatible Models & Engines

🏍️ 400cc Series — 191Q Engine

CF400ATR CForce 450 Series (including 2L, 2S, 3L, 3S, 4L, 4S, L, 5L, 5S and many variants)
CF400AU CForce 400/450 Series (including 3L, 3S, 6S, A, B, G, L, LF, SF and many variants)
CF400AZ CForce 400/450 Series (including 3L, 3S, 6L, 6S and many variants)
GOES TERROX 400L / 400S
IRON MAX T3 / IRON T3 (L7e)
CForce 400 Classic / Touring

🏍️ 500/550cc Series — 191R / 191R-C / 191R-E / 191R-U550 / 191R-X550 / 191R-Z550 Engines

CF500ATR CForce 520/550 Series (including 2L, 2S, 3, 9L, 9S, 11L, 11S, A, 2LC, 2SC, 5L, 5S and many variants)
CF500AU CForce 500/520/550 Series (including 6B, 6L, 7A, 7C, 7L, 7S, 8L, 8S, 9S, 9L, 10S, 7LA, 7SA, 9SH and many variants)
CF500AZ CForce 500/520 Series (including 9S, 10S and many variants)
CF500US / CF500UTR / CF500UU ZForce / UForce 500/550 Series
COBALT / COBALT MAX Series
GOES TERROX 500L / 500S
UForce 550 / UForce 500
ZForce 500 Trail / 550EX

🏍️ 600/625cc Series — 191S / 191S-A / 191S-B Engines

CF600ATR CForce 600/625 Series (including 2L, 2LC, 2S, 2SC, L and many variants)
CF600AU CForce 600/625 Touring Series (including 3L, 3LA, 3LF, 3LH, 3S, 3SA, 3SF, L, 3SH and many variants)
CF600AZ CForce 600 Series (including 3L, 3LA, 3S, 3SA and many variants)
CF600UTR / CF600UU / CF600UZ UForce 600 Series

🏍️ 800/850cc Series — 2V91W / 2V91W-A / 2V91W-B / 2V91W-D / 2V91W-G / 2V91W-S Engines

CF800 / CF800ATR CForce 800/850 Series (including 2, 2B, 3 and many variants)
CF800AU CForce 800XC/850XC Series (including 2A, 2AF and many variants)
CF800AZ CForce 800XC Series (including 2A and many variants)
CF800US / CF800UTR / CF800UU / CF800UZ ZForce / UForce 800 Series
CF800SU / CF800SZ ZForce 800 Trail / Sport Series
X8 / Z8 / U8 Series

🏍️ 1000cc Series — 2V91Y / 2V91Y-C / 2V91Y-D / 2V91Y-U10 / 2V91Y-Z10 / 2V91Y-Z1000 Engines

CF1000ATR / CF1000AU CForce 1000 Series (including F and many variants)
CF1000AZ CForce 1000 Overland Series
CF1000US / CF1000UTR / CF1000UU / CF1000UZ ZForce / UForce 1000 Series
CF1000STR / CF1000SU / CF1000SZ ZForce 950/1000 Sport / Trail / Crew Series
CM1000UZ UForce 1000 Alpine Series
X10 / Z10 / U10 Series

📌 Compatibility Note: This CVT case plain bearing fits the engine series listed above, covering CFMoto 400cc to 1000cc multiple models. Due to the large number of variants, please ensure you select the correct size based on the marking "A" or "B" on your CVT case (Red thin or Blue thick). If in doubt, provide your original part number or engine model for verification.

⚙️ Features

Direct OEM Replacement: Exactly matches CFMoto part numbers 0JY0-013102-00010 (Red) and 0JY0-013102-00020 (Blue).
Precise Thickness Tolerance: Red +0.014~+0.019mm, Blue +0.019~+0.024mm, ensuring optimal clearance with the shaft journal.
High-Quality Alloy Material: Made from high-strength wear-resistant alloy with special surface treatment, providing excellent anti-fatigue and friction-reducing properties.
Accurate Positioning: Standard width 24mm with locating tang, ensuring correct orientation and preventing rotation during operation.
Supplied as a Set: Each set includes the required number of bearings to ensure matching consistency.

✅ Service Tip: Plain bearings are precision fit components, typically replaced during engine overhaul, crankshaft repair, or when abnormal noise or low oil pressure occurs. When replacing, thoroughly clean the shaft journal and bearing housing, inspect the journal surface for damage. Ensure the locating tang is correctly seated in the housing groove and apply clean engine oil during installation. Tighten bearing cap bolts to the torque specified in your service manual.

⚠️ Installation Note: Before installation, verify the case marking and select the correct thickness bearing. Keep the bearing and journal absolutely clean. Use Plastigage to check oil clearance meets specifications. Use a torque wrench and tighten bolts in a diagonal sequence to the specified torque. After installation, rotate the crankshaft/countershaft by hand to ensure smooth rotation without binding.
