Water Pump Seal - Model MICF0110-080005
CFMoto Water Pump Oil Seal 0110-080005 - CForce 450/520/550/600/625/800 ATV UTV

Water Pump Seal

  • Brand: Mortch Motor
  • Product Code: MICF0110-080005
  • Product Viewed: 8
    •
  • Availability: 683
  • Weight: 0.00kg
    •

0 reviews / Write a review

  • US$0.23


Shipping To：
More Quotes
Qty

Buy Now
Share this product
QQWeiboFacebookWeChatXWhatsAppEmailBlueskyLinkedInCopy LinkPinterestTelegram
Loading...

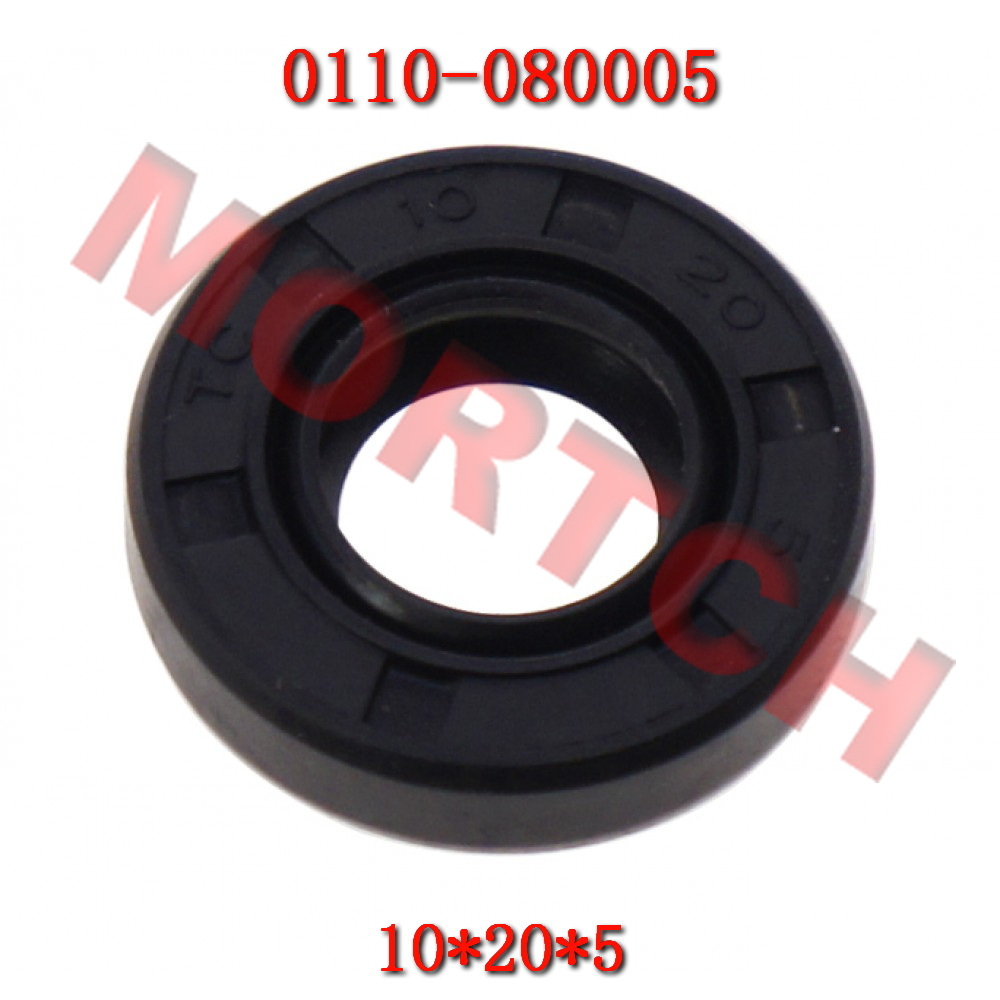

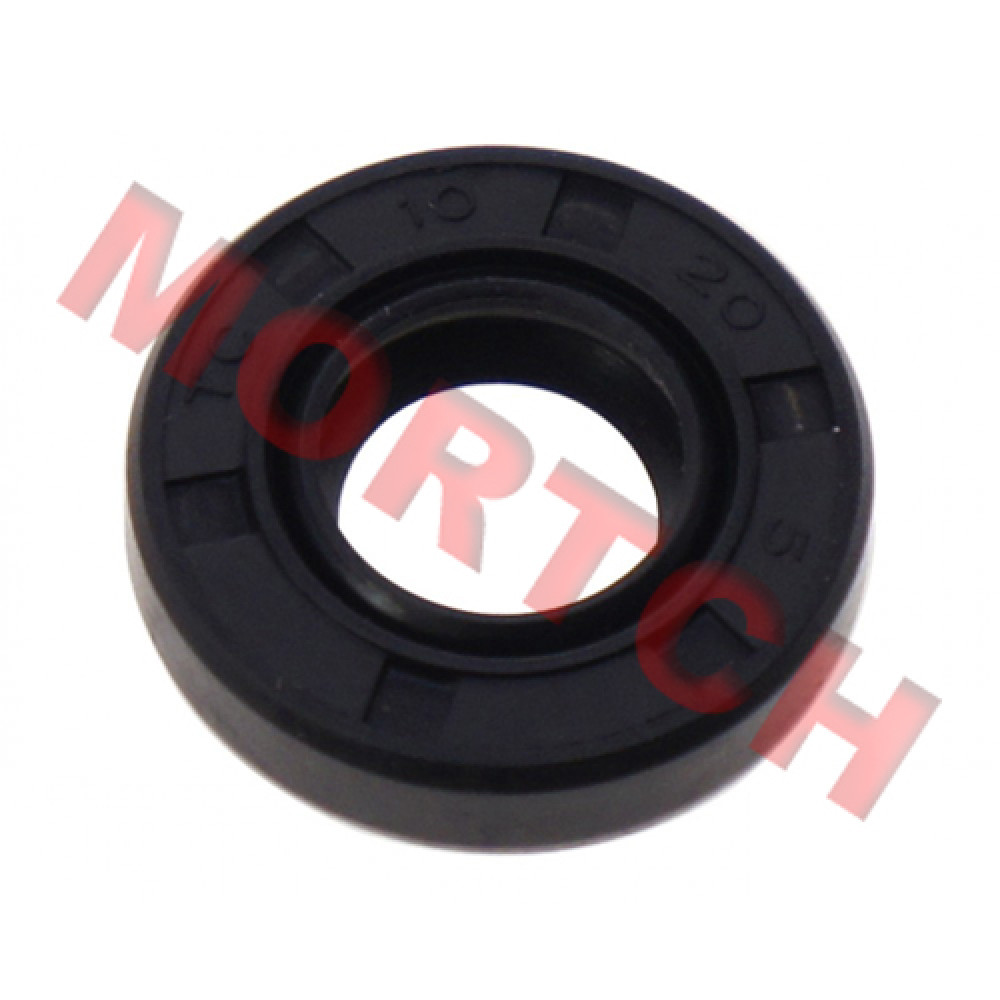

CFMoto Oil Seal 10X20X5

OEM Part Number 172MM-080005 / 0110-080005

Compatible with Linhai P/N: 35177 / 1BE-12437-00

Dimensions: 10mm ID x 20mm OD x 5mm Thick. High-quality oil seal for water pump shafts or other engine applications.

📋 Overview

This oil seal is a high-quality OEM replacement for CFMoto, directly replacing part numbers 172MM-080005 and 0110-080005. It measures 10mm (ID) x 20mm (OD) x 5mm (Thick) and is typically installed on the water pump shaft to prevent engine oil leakage, working in conjunction with the water seal to separate oil and coolant.

Wide Compatibility: This seal fits not only numerous CFMoto models but is also compatible with the following brands and models:

  • CFMoto: V3, V5, and the many ATV/UTV/SSV models listed below.
  • Other Brands: Jonway, NST, Roketa, Tank Touring 250, Hisun 500/700cc.
  • Honda: Helix (CN250).

It is also a direct replacement for Linhai parts 35177 and 1BE-12437-00.

✨ OEM Quality: Made from high-quality Nitrile rubber (NBR) with a metal case and integrated spring, offering excellent oil resistance, wear resistance, and high-temperature performance for long-lasting sealing.

📐 Specifications
Part Numbers 172MM-080005 / 0110-080005
Compatible P/N 35177 / 1BE-12437-00 (Linhai)
Dimensions (ID x OD x Thick) 10 mm × 20 mm × 5 mm
Type Metal-cased with Spring
Material Nitrile Rubber (NBR)
🔧 Applicable CFMoto Models (by engine family)
🏍️ CF188 (500cc) – X5, UForce 500
  • ATV CF500 X5 (CF188)
  • ATV CF500-2 X5 (CF188)
  • ATV CF500-2A X5 (CF188)
  • ATV CF500-5 X5 (CF188)
  • ATV CF500-5A X5 (CF188)
  • ATV CF500-5B X5 (CF188-B)
  • ATV CF500-5C X5 (CF188-B)
  • ATV CF500-A X5 (CF188)
  • ATV CF500-B X5 (CF188)
  • ATV CF500-C X5 (CF188)
  • ATV CF500-D X5 (CF188)
  • ATV CF500-E X5 (CF188)
  • UTV CF500-3 UForce 500 U5 (CF188-A)
🏍️ 191Q (400/450cc) – CForce 400/450, IRON
  • ATV CF400ATR CForce 450 (191Q)
  • ATV CF400ATR-2L CForce 450L (191Q)
  • ATV CF400ATR-2S CForce 450S (191Q)
  • ATV CF400ATR-3L CForce 450L (191Q)
  • ATV CF400ATR-3S CForce 450 (191Q)
  • ATV CF400ATR-5L(T3b) IRON MAX T3 (191Q)
  • ATV CF400ATR-5S(T3b) IRON T3 (191Q)
  • ATV CF400ATR-L CForce 450L (191Q)
  • ATV CF400AU CForce 400S/450S (191Q)
  • ATV CF400AU-2L IRON MAX L7e (191Q)
  • ATV CF400AU-2S IRON L7e (191Q)
  • ATV CF400AU-3L CForce 450L (191Q-A)
  • ATV CF400AU-3S CForce 450S (191Q-A)
  • ATV CF400AU-A CForce 450S (191Q)
  • ATV CF400AU-B CForce 450L (191Q)
  • ATV CF400AU-L CForce 400L/450L (191Q)
  • ATV CF400AU-LF CForce 450L (191Q-A)
  • ATV CF400AU-SF CForce 450S (191Q-A)
  • ATV CF400AZ-3L CForce 450L (191Q)
  • ATV CF400AZ-3S CForce 450S (191Q)
🏍️ 191R (500/520/550cc) – CForce 500/520/550, COBALT, ZForce, UForce
  • ATV CF500ATR CForce 520 (191R-X550)
  • ATV CF500ATR-2L CForce 520L (191R-X550)
  • ATV CF500ATR-2LC CForce 520L (191R-X550)
  • ATV CF500ATR-2S CForce 520S (191R-X550)
  • ATV CF500ATR-2SC CForce 520S (191R-X550)
  • ATV CF500ATR-3 CForce 520 (191R-X550)
  • ATV CF500ATR-5L(T3b) COBALT MAX T3 (191R)
  • ATV CF500ATR-5S(T3b) COBALT T3 (191R)
  • ATV CF500ATR-9L CForce 550 (191R-E)
  • ATV CF500ATR-9S CForce 550 (191R-E)
  • ATV CF500ATR-A CForce 550 (191R-X550)
  • ATV CF500AU-6B CForce 550 (191R-C)
  • ATV CF500AU-6L CForce 550 (191R-X550)
  • ATV CF500AU-7A CForce 520S (191R)
  • ATV CF500AU-7C CForce 520L (191R)
  • ATV CF500AU-7L CForce 520L (191R)
  • ATV CF500AU-7LF CForce 520L (191R-E)
  • ATV CF500AU-7S CForce 520S (191R)
  • ATV CF500AU-7SF CForce 500S/520S (191R-E)
  • ATV CF500AU-8L COBALT MAX L7e (191R-C)
  • ATV CF500AU-8S COBALT L7e (191R-C)
  • ATV CF500AU-9L CForce 520L (191R-E)
  • ATV CF500AU-9S CForce 550 (191R-E)
  • ATV CF500AZ-9S CForce 500/520 (191R)
  • SSV CF500US ZForce 500 Trail (191R-Z550)
  • SSV CF500US-EX ZForce 550EX (191R-Z550)
  • SSV CF500UTR ZForce 550EX (191R-Z550)
  • UTV CF500UTR-2 UForce 550 (191R-U550)
  • UTV CF500UU UForce 550 (191R-U550)
🏍️ 191S / 196S (600/625cc) – CForce 600/625, X6, UForce U6, Z6
  • ATV CF600-B X6 (196S-B)
  • ATV CF600-C X6 (196S-B)
  • ATV CF625-2 X6 (196S-B)
  • ATV CF625-2A X6 (196S-B)
  • ATV CF625-B X6 (196S-B)
  • ATV CF625-C X6 (196S-B)
  • ATV CF600ATR-2L CForce 625 Touring (191S)
  • ATV CF600ATR-2LC CForce 625 Touring (191S-B)
  • ATV CF600ATR-2S CForce 625 (191R-X550)
  • ATV CF600ATR-2SC CForce 625 (191S-B)
  • ATV CF600ATR-L CForce 625/600 (191S)
  • ATV CF600AU-3L CForce 600/625 Touring (191S)
  • ATV CF600AU-3LA CForce 600/625 Touring (191S-A)
  • ATV CF600AU-3LF CForce 600/625 Touring (191S-A)
  • ATV CF600AU-3S CForce 600/625 (191S)
  • ATV CF600AU-3SA CForce 600 (191S)
  • ATV CF600AU-3SF CForce 600 (191S-A)
  • ATV CF600AU-L CForce 600 (191S)
  • ATV CF600AZ-3L CForce 600 (191S)
  • ATV CF600AZ-3LA CForce 600 (191S)
  • ATV CF600AZ-3S CForce 600 (191S)
  • ATV CF600AZ-3SA CForce 600 (191S)
  • SSV CF600-3 Z6 (196S-C)
  • SSV CF600-6 Z6 (196S-C)
  • SSV CF625-3 Z6 (196S-C)
  • SSV CF625-6 Z6 (196S-C)
  • UTV CF600-5 UForce U6 (196S-B)
  • UTV CF600UTR UForce 600 (191S-U6)
  • UTV CF600UU UForce 600 (191S-U6)
  • UTV CF600UZ UForce 600 (191S-U6)
🏍️ 2V91W (800/850cc) – CForce 800, ZForce, UForce, X8, Z8, U8
  • ATV CF800-2 X8 (2V91W)
  • ATV CF800ATR CForce 800 (2V91W)
  • ATV CF800ATR-2 CForce 800 (2V91W)
  • ATV CF800AU-2B CForce 800 (2V91W-S)
  • SSV CF800 ZForce 800EX (2V91W)
  • SSV CF800SU-2 ZForce 800 Trail (2V91W-B)
  • SSV CF800SZ-2 ZForce 800 Trail (2V91W)
  • SSV CF800US-A ZForce 800 Trail (2V91W)
  • SSV CF800UTR ZForce Z8-EX (2V91W)
  • UTV CF800-3 UForce 800 (2V91W)
  • UTV CF800UTR-2 UForce 800 (2V91W)
  • UTV CF800UU-A UForce 800 (2V91W)

📌 Compatibility Note: This oil seal fits the CFMoto models listed above as well as the other brands mentioned in the overview. Due to its extremely wide application, please verify the dimensions (10mm ID x 20mm OD x 5mm Thick) of your original seal to ensure a correct match before ordering.

⚙️ Product Features
  • OEM Size Match: Precision 10x20x5 dimensions for a perfect fit and direct replacement.
  • High-Quality NBR: Excellent oil resistance, wear resistance, and heat tolerance suitable for engine environments.
  • Reinforced Metal Case: Provides structural integrity and prevents deformation during installation.
  • Self-Tensioning Spring: The sealing lip includes a spring to maintain consistent sealing pressure and compensate for minor wear.
  • Prevents Fluid Leakage: Effectively seals oil around rotating shafts (e.g., water pump) to protect the engine.
✅ Importance of Oil Seal Replacement: Oil seals are wear items. The rubber lip constantly rubs against the rotating shaft, eventually hardening, cracking, or wearing down, leading to seal failure. Oil leakage not only reduces oil levels but can also create a mess and, in the case of a water pump seal, can lead to coolant and oil mixing, causing catastrophic engine damage. Replace leaking seals promptly.
⚠️ Installation Tip: Before installation, inspect the shaft surface for scratches or corrosion. Use a proper seal driver to install the seal squarely and to the correct depth without damaging the lip. Lightly lubricate the seal lip with oil before installation.
🔧 Compatibility Notice
  • Please verify that this part fits your specific vehicle model and year. Many vehicles share similar names but use different components depending on year or market region.
  • We strongly recommend cross-checking with your vehicle's owner's manual or contacting us for confirmation before placing your order.
📄 Product Disclaimer
  • Product images, measurements, and descriptions are for reference only. Slight variations in color or appearance may occur due to manufacturing batches or photography lighting—functional specifications remain identical to the ordered part.
  • Professional installation is mandatory. Mortch Motor assumes no liability for damages, injuries, or losses resulting from improper installation, misuse, unauthorized modification, or abnormal operation.
💰 Import Duties & Taxes
  • All listed prices EXCLUDE shipping costs, import duties, taxes, and customs clearance fees. These charges (if applicable) are determined and collected by your local customs authority and are solely the buyer's responsibility.
  • In case of return due to unpaid duties/taxes or refusal to clear customs, the buyer shall bear the original shipping cost, return shipping fees, and any associated administrative charges deducted from the refund.
📌 Order Confirmation: By completing your purchase, you acknowledge that you have read, understood, and agreed to all terms above. For any questions, please contact our support team prior to ordering.
