O-Seal Ring 13x2

Brand: Mortch Motor
Product Code: MICF01A0-013005

Product Viewed: 5

Availability: 77

Weight: 0.00kg

0 reviews / Write a review

US$0.09

Shipping To：

More Quotes

Qty

Buy Now

Tell a Friend Ask a Question

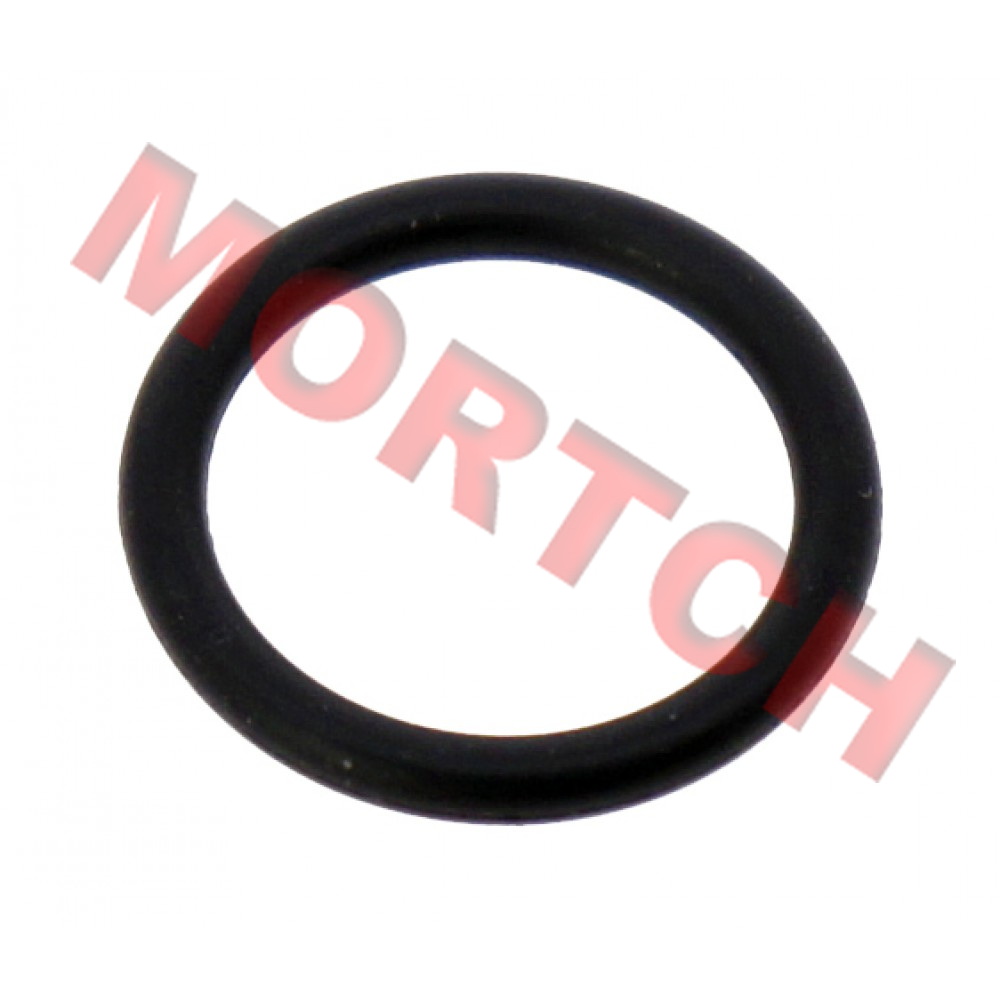

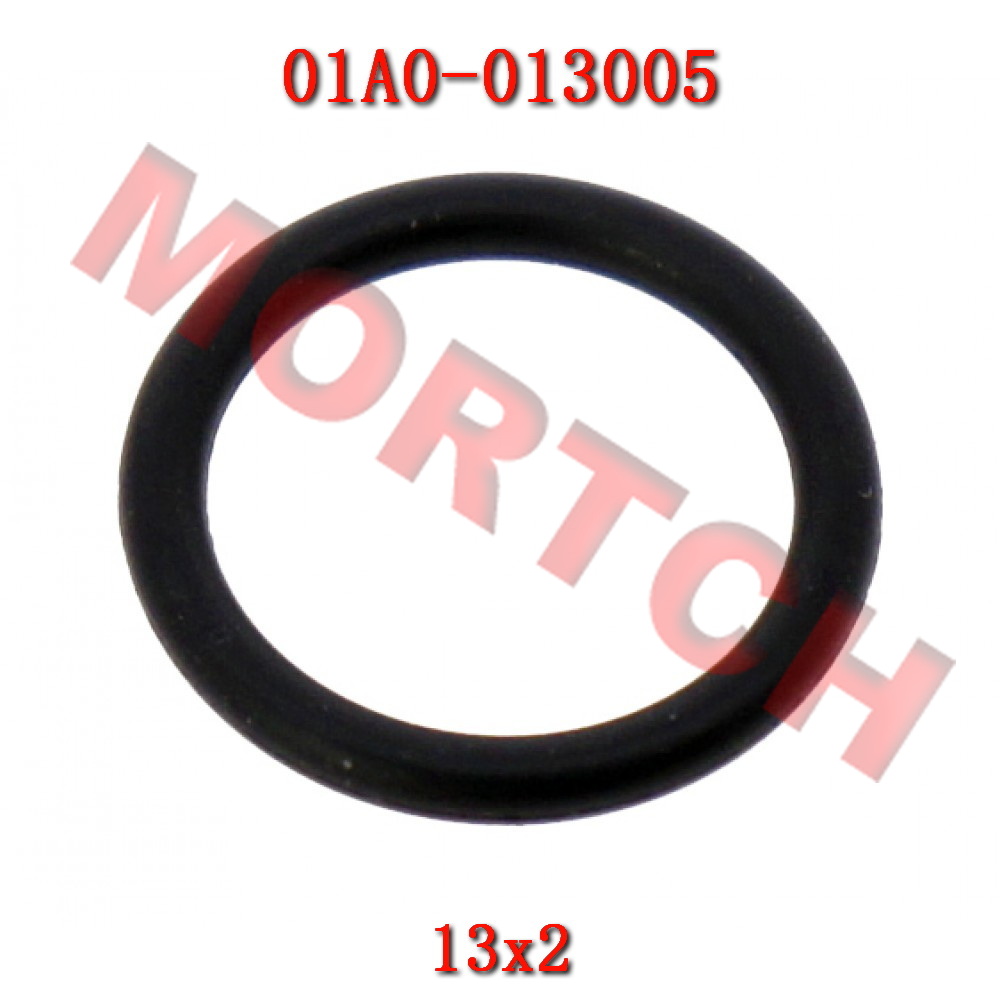

CF Moto O-Ring 13x2

Part Number: 01A0-013005

Specification: 13mm (ID) x 2mm (CS)

Product Type: General Seal | O-Ring

Fitment: CFMoto 125cc - 1000cc Series ATV/SSV/UTV/Motorcycle

OEM-specification O-ring, size 13x2mm. As a standard general-purpose seal, it is widely used across various CFMoto models in engine, transmission, fuel systems, and more, ensuring reliable sealing at mating surfaces and preventing fluid or gas leaks.

📋 Product Overview

This product is a genuine CF Moto O-ring, part number 01A0-013005, with dimensions 13mm (ID) x 2mm (CS). O-rings are one of the most common and reliable sealing elements, used extensively in engines, transmissions, fuel line fittings, and anywhere a static or dynamic seal is needed. Manufactured from high-quality oil-resistant rubber, it offers excellent resistance to oil, temperature, and aging. Under compression, it fills the micro-gaps between the seal groove and mating surface, effectively preventing leaks of oil, water, or air. This specific O-ring size is common across many CFMoto models and is a frequently used replacement part in maintenance and repairs.

Key Specifications:

Part Number: 01A0-013005
Product Name: O-Ring
Specification: 13 x 2 mm (ID x CS)
Material: Oil-Resistant Rubber

🔧 Genuine Quality Assurance: Manufactured strictly according to CFMoto OEM technical standards. The rubber's hardness, tensile strength, and resistance to oil and temperature are identical to the original part, ensuring long-term reliable sealing.

📐 Specifications

Part Number:

01A0-013005

Specification:

13 x 2 mm

Material:

Oil-Resistant Rubber

System:

General Sealing

🔧 Complete Fitment Model List

This O-ring (01A0-013005) has an extremely wide fitment range, including but not limited to the following engine platforms and models:

⚙️ ENGINE Platforms

157 Series (125cc-150cc): 157FMI, 157FMI-2, 157FMI-2A, 157FMI-2B, 157FMI-2C, 157FMI-2F, 157MJ-2A, 157MJ-3, 157MJ-3A, 157MJ-3A-A1, 157MJ-3B, 157MJ-3C
172 Series (250cc): 172MM-2, 172MM-2A (and variants), 172MM-2C (and variants), 172MM-3, 1P72MM-A, 1P72MM-A(A1), 1P72MM-A(A2)
178 Series (300cc): 178MN, 178MN(FOR CF300-3), 178MN-A, 178MN-C, 178MN-F, 178MN-F(300-10)
191 Series (400cc-625cc): 191Q, 191Q-A, 191Q-H, 191R (and variants), 191R-C, 191R-E, 191R-H, 191R-U550, 191R-X550, 191R-Z550, 191S, 191S-A, 191S-B, 191S-U6
268 Series (400cc): 268MQ, 268MQ FOR CF400, 268MQ FOR CF400-5, 268MQ-A, 268MQ-A FOR CF400-5, 268MQ-B
283 Series (650cc-700cc): 283MT (and variants), 283MT-A (and variants), 283MT-C, 283MU (and variants)
2V91 Series (800cc-1000cc): 2V91W-B, 2V91W-F, 2V91W-G, 2V91W-K, 2V91Y-D, 2V91Y-F, 2V91Y-U10, 2V91Y-Z10, 2V91Y-Z1000
Others: 380Y-2A, 380Y-3, CF650G Parade Vehicle

🏍️ ATV Models

400cc Series: CForce 450 (various L/S versions), GOES TERROX 400L/S, IRON series, and various CF400ATR, CF400AU, CF400AZ models based on the 191Q platform
500cc Series: CForce 520/550 (various L/S versions), GOES TERROX 500L/S, COBALT series, and various CF500ATR, CF500AU, CF500AZ models based on the 191R platform
600cc Series: CForce 600/625 (various Touring/EPS versions), and various CF600ATR, CF600AU, CF600AZ models based on the 191S platform
800cc Series: CForce 800, CForce 800XC/850XC, X8 Series, and various CF800ATR, CF800AU, CF800AZ models based on the 2V91W platform
1000cc Series: CForce 1000 TOURING / OVERLAND / MV, and various CF1000ATR, CF1000AU, CF1000AZ models based on the 2V91Y-F platform

🚙 SSV Models

500cc Series: ZForce 500 Trail, ZForce 550EX (based on 191R-Z550 platform)
800cc Series: ZForce 800 Trail, ZForce 800EX, ZForce 800 SPROT, Z8-EX (based on 2V91W platform)
950cc / 1000cc Series: ZForce 950 TRAIL / SPORT / SPORT-4 / HO EX / HO Sport, ZForce 1000 / 1000EX / 1000 Sport / 1000 Crew (based on 2V91Y-D platform)

🚜 UTV Models

500cc Series: UForce 550 (based on 191R-U550 platform)
600cc Series: UForce 600 (based on 191S-U6 platform)
800cc Series: UForce 800, UForce 800 XL (based on 2V91W platform)
1000cc Series: UForce 1000, UForce 1000 XL (based on 2V91Y-U10 platform)

🚓 POLICE MOTORCYCLE Models

CF1000US-J ZForce 1000
CF400AU（X4 Police） CForce 400S
CF400AU-3L(Fire Police) CForce 450L
CF400AZ-3L(Fire Police) CForce 450L
CF600AU-L（X6 Police） CForce 600
CF600UU(Police） UForce 600

📌 Fitment Note: This O-ring (Part Number 01A0-013005, Size 13x2mm) fits all CFMoto engine platforms and models listed in the summary above. As this is a common standard part, its fitment range is very broad. If your specific model is not explicitly mentioned but is a CFMoto ATV, SSV, UTV, or motorcycle within the same displacement range, it is highly likely to be applicable. If you have any questions, please contact our customer service with your VIN or the specific application location for confirmation.

⚙️ Product Features

OEM Specification: Part number 01A0-013005 corresponds exactly with the CFMoto official parts system.
Standard Size: 13mm ID x 2mm CS, a widely used general-purpose seal size.
Quality Material: Made from high-quality oil-resistant rubber with excellent resistance to oil, temperature, and aging.
Reliable Sealing: Compresses to fill the seal groove, effectively preventing leaks of oil, water, or air.
Easy Replacement: Small size and easy to install, making it a common stock item for various repairs.
Essential for Maintenance: It is recommended to replace O-rings whenever a sealed component is disassembled to ensure a proper seal.

✅ Fault Indications: Common signs of a worn or damaged O-ring include:
• Leaks of oil, coolant, or air at the installation point;
• The O-ring becomes hard, cracked, or loses its elasticity;
• System pressure drops due to poor sealing.
If leaks are found, inspect and replace the O-ring in that location.

✅ Installation Tip: Before installation, thoroughly clean the seal groove and mating surface. Apply a small amount of lubricating oil or grease to the O-ring to aid installation and prevent twisting. Ensure the O-ring is properly seated in the groove without being twisted or dislodged. Check for leaks after installation.

⚠️ Important Notice: This product is a CF Moto O-ring, part number 01A0-013005, size 13x2mm. It is applicable for the numerous CFMoto engine platforms and models summarized above. Due to the wide range of applications, there may be differences between model years or specific installation locations. If you are unsure about your specific model or application, please contact our customer service with your VIN for compatibility verification. Images are for reference only; the actual product may vary due to improvements.

🔧 Compatibility Notice

Please verify that this part fits your specific vehicle model and year. Many vehicles share similar names but use different components depending on year or market region.
We strongly recommend cross-checking with your vehicle's owner's manual or contacting us for confirmation before placing your order.
