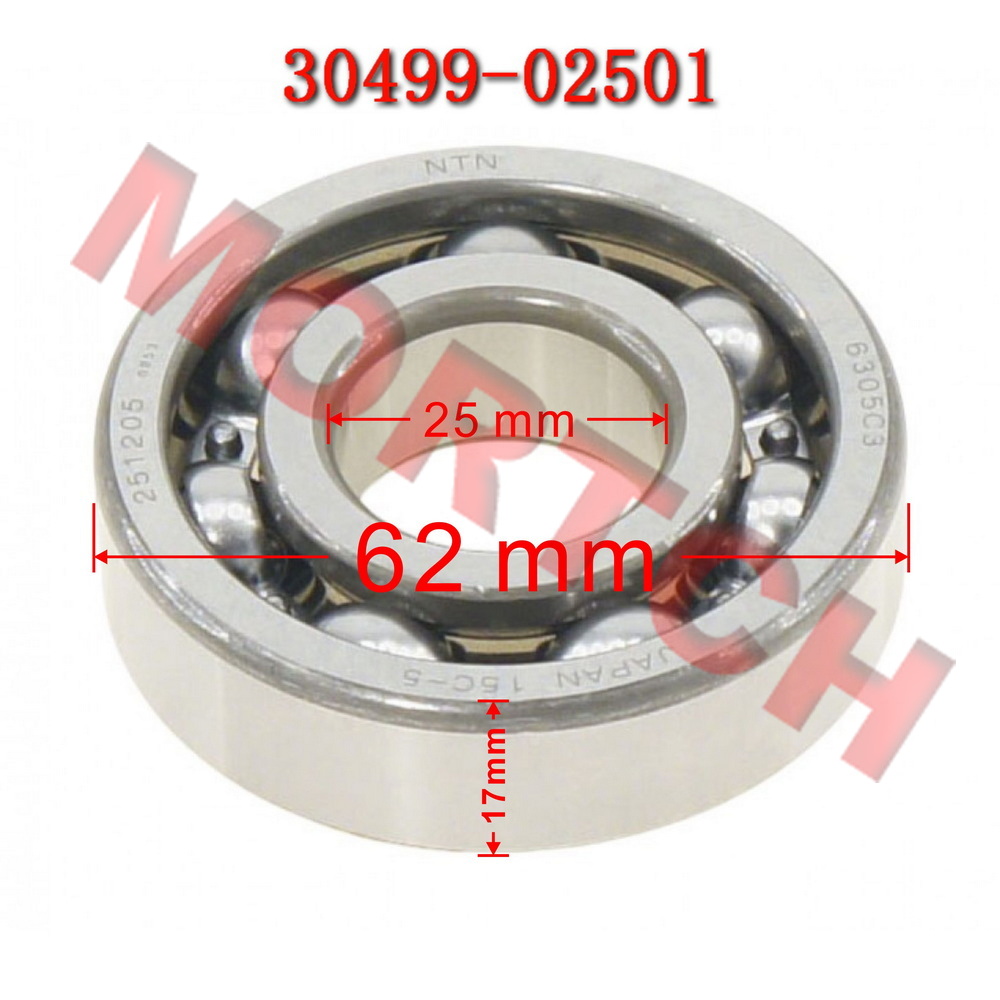

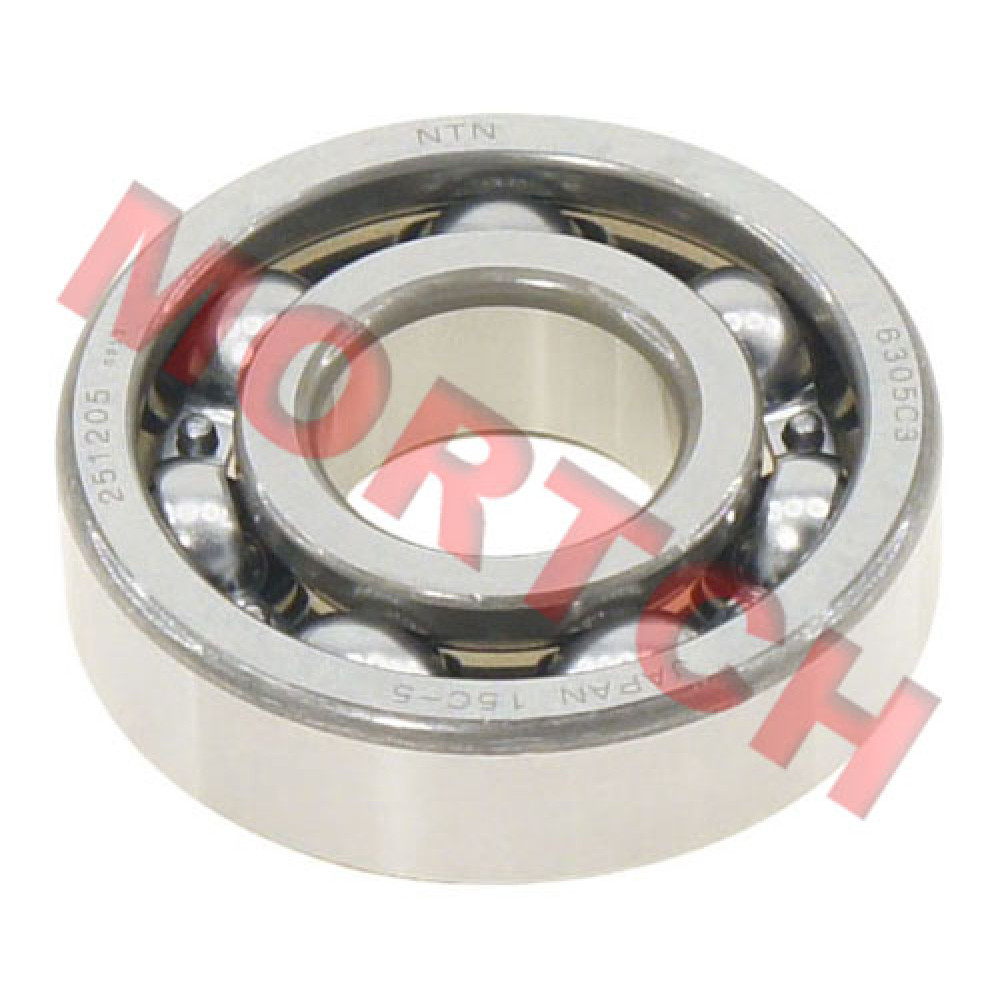

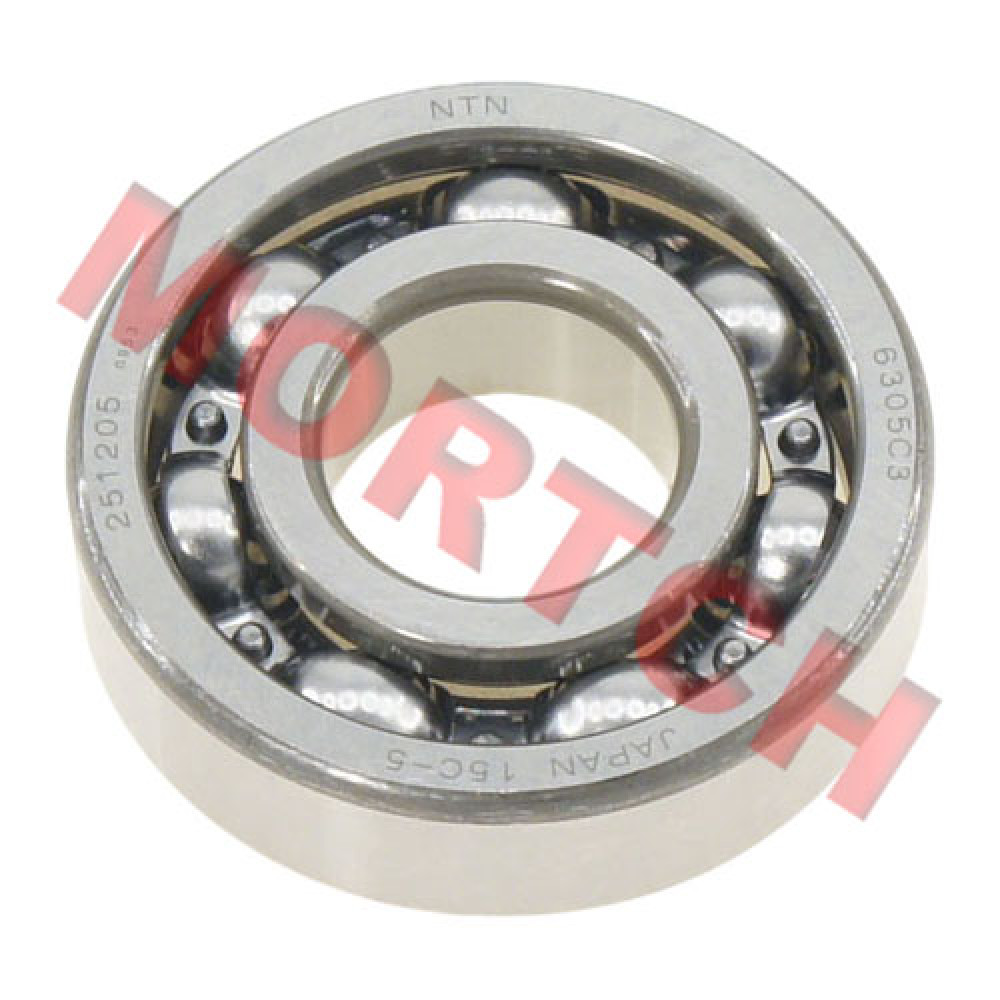

🔧 CFMoto Bearing 6305

📦 Part Number: 30499-02501

🔩 Type: 6305 · Deep Groove Ball Bearing

📏 Dimensions: ID 25mm × OD 62mm × Width 17mm

✅ OEM Quality · Direct Replacement · Fits Multiple CFMoto ATV/SSV/UTV Models

📋 Product Overview

This product is a genuine CFMoto bearing, part number 30499-02501, model 6305 deep groove ball bearing. This bearing is widely used in rotating components such as engines, transmissions, wheel hubs, and drivetrain systems on CFMoto ATV, SSV, and UTV models, providing support for rotating shafts, reducing friction, and ensuring smooth operation. Manufactured from high-quality bearing steel with high precision, low noise, and long service life.

✅ Genuine Quality Assurance: Manufactured strictly according to CFMoto OEM technical standards. Dimensional accuracy, material, and lubrication performance are identical to original parts, ensuring perfect fit and reliable durability.

📐 Specifications

🔖 Part Number30499-02501

🔩 Bearing Type6305

📏 Inner Diameter25mm

📏 Outer Diameter62mm

📏 Width17mm

🧪 MaterialHigh-Carbon Chromium Bearing Steel (GCr15)

🔧 TypeDeep Groove Ball Bearing

🔧 Fitment Model List

This bearing (30499-02501 / 6305) fits the following CFMoto models:

🏍️ ATV Series

CF1000ATR CForce 1000
CF1000AU CForce 1000 EPS Overland
CF1000AU-F CForce 1000
CF400ATR-2L(T3a) CForce 450L
CF400ATR-2L(T3b) CForce 450L
CF400ATR-2S(T3a) CForce 450S
CF400ATR-2S(T3b) CForce 450S
CF400ATR-3L(T3b) CForce 450 L
CF400ATR-3S(T3b) CForce 450
CF400ATR-4L GOES TERROX 400L
CF400ATR-4S GOES TERROX 400S
CF400ATR-5L(T3b) IRON MAX T3
CF400AU CForce 400S/450S
CF400AU-3L CForce 450L
CF400AU-3S CForce 450S
CF400AU-A CForce 450S
CF400AU-B CForce 450L
CF400AU-L CForce 400L/450L
CF400AU-LF CForce 450L
CF400AU-SF CForce 450S
CF500 X5
CF500-2 X5
CF500-2A X5
CF500-A X5
CF500ATR-11L GOES TERROX 500L
CF500ATR-2L(T3a) CForce 520L
CF500ATR-2L(T3b) CForce 520L
CF500ATR-2S(T3a) CForce 520S
CF500ATR-2S(T3b) CForce 520S
CF500ATR-3 CForce 520
CF500ATR-9L(T3b) CForce 520 L
CF500ATR-A CForce 550
CF500AU-6B CForce 550
CF500AU-6L CForce 550
CF500AU-7A CForce 520S
CF500AU-7C CForce 520L
CF500AU-7L CForce 520L
CF500AU-7LF CForce 520L
CF500AU-7S CForce 520 S
CF500AU-7SF CForce 500S/CForce 520S
CF500AU-9L CForce 520 L
CF500AU-9S CForce 520/CForce 500
CF600ATR-2L(T3b) CForce 625 Touring
CF600ATR-2LC CForce 625 Touring
CF600ATR-2S(T3b) CForce 625
CF600ATR-2SC CForce 625
CF600ATR-L(T3a) CForce 600
CF600ATR-L(T3b) CForce 600
CF600AU-3L CForce 600 Touring/625 Touring
CF600AU-3LF CForce 600 Touring/625 Touring
CF600AU-3SF CForce 600
CF625-C X6
CF800-2 X8
CF800ATR CForce 800
CF800ATR-2 CForce 800
CF800ATR-3 CForce 850XC
CF800AU-2A CForce 850XC
CF800AU-2AF CForce 800XC/CForce 850XC
CF800AU-2B CForce 800

🏎️ SSV Series

CF1000STR-3L ZForce 950 SPORT-4
CF1000US-2 ZForce 1000
CF1000UTR-2 ZForce 1000
CF1000UTR-6(T1b) ZForce 1000
CF1000UTR-B ZForce 1000 Sport
CF1000UTR-C ZForce 1000 Sport
CF500US ZForce 500 Trail
CF500US-EX ZForce 550EX
CF500UTR ZForce 550EX
CF500UTR(T1b) ZForce 550EX
CF500UTR(T1b)(GD) ZForce 550EX
CF600-3 Z6
CF625-3 Z6
CF625-6 Z6
CF800 ZForce 800EX
CF800UTR ZForce Z8-EX

🚜 UTV Series

CF1000UTR-3 UForce 1000
CF1000UTR-5 UForce 1000 XL
CF500-3 UForce 500 U5
CF500UTR-2 UForce 550
CF500UU UForce 550
CF600-5 UForce U6
CF600UTR(T1b) UForce 600
CF800-3 UForce 800
CF800UTR-2 UForce 800
CF800UU-A UForce 800

⚙️ Engine Series

191Q / 191Q-A / 191Q-H (CForce 450 Series)
191R / 191R-C / 191R-E / 191R-H / 191R-U550 / 191R-X550 / 191R-Z550 (500/550 Series)
191S / 191S-A / 191S-B / 191S-U6 (600/625 Series)
196S-B(X6) / 196S-C (X6/Z6 600)
2V91W / 2V91W-A / 2V91W-D / 2V91W-F / 2V91W-K / 2V91W-S (800/850 Series)
2V91Y-C / 2V91Y-D / 2V91Y-F / 2V91Y-U10 / 2V91Y-X10 / 2V91Y-Z10 / 2V91Y-Z1000 (1000 Series)
CF188 / CF188-A / CF188-B (500 Series)

📌 Fitment Note: This bearing (Part Number 30499-02501, Model 6305, Dimensions 25×62×17mm) fits the CFMoto ATV, SSV, and UTV models and engine series listed above. Regional variants (AU/CA/US/RU/International) are included. If your specific model is not listed, please contact our customer service with your VIN or engine model for confirmation.

⚙️ Product Features

✅ OEM Specification: Manufactured strictly according to CFMoto original technical standards with precise dimensions and clearance.
🔩 High-Precision Bearing Steel: Made from high-quality high-carbon chromium bearing steel (GCr15) with heat treatment for high hardness and wear resistance.
🛡️ Low Noise Design: Precision-machined raceways and balls ensure smooth operation, low noise, and minimal vibration.
🎯 High Speed Performance: Suitable for high-speed applications, meeting requirements for engines, transmissions, and other components.
🔧 Long Service Life: High-quality grease and sealing structure extend bearing service life.
📦 Direct Replacement: Factory fitment installation, no modifications required.

✅ Installation Tip: Before installation, ensure the bearing housing and shaft journal are clean and free of damage. Use specialized tools to apply even pressure during installation, avoiding direct hammering on the bearing rings. After installation, check that the bearing rotates smoothly without binding. Professional installation is recommended.

⚠️ Important Notice: This product is a CFMoto bearing, part number 30499-02501, model 6305, dimensions 25×62×17mm. It fits the ATV, SSV, and UTV models and engine series listed above. Minor variations may exist between different production batches. If your specific model is not listed, please contact our customer service with your VIN or engine model for compatibility verification. Images are for reference only; the actual product may vary.
