Bearing Assy

Brand: Mortch Motor
Product Code: MICF7020-051610-30000

Product Viewed: 1

Availability: 5

Weight: 0.03kg

0 reviews / Write a review

US$4.20

Shipping To：

More Quotes

Qty

Buy Now

Tell a Friend Ask a Question

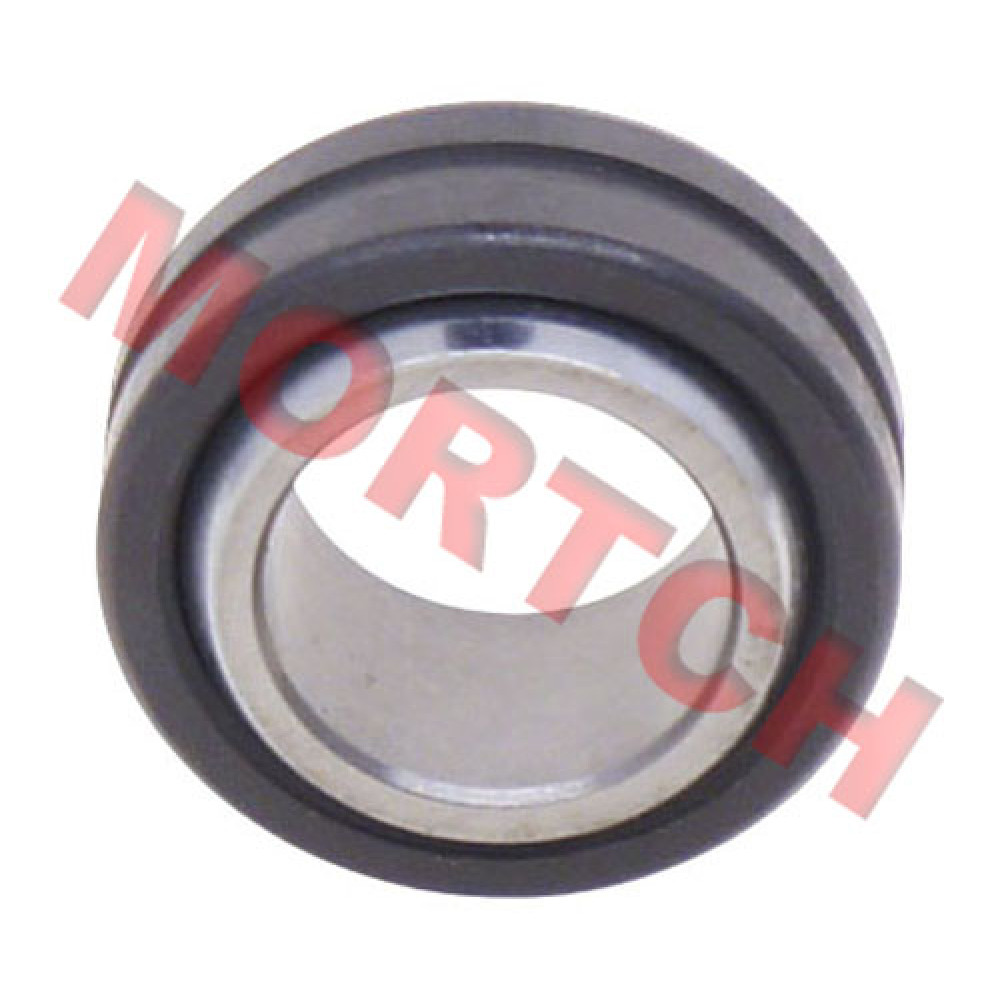

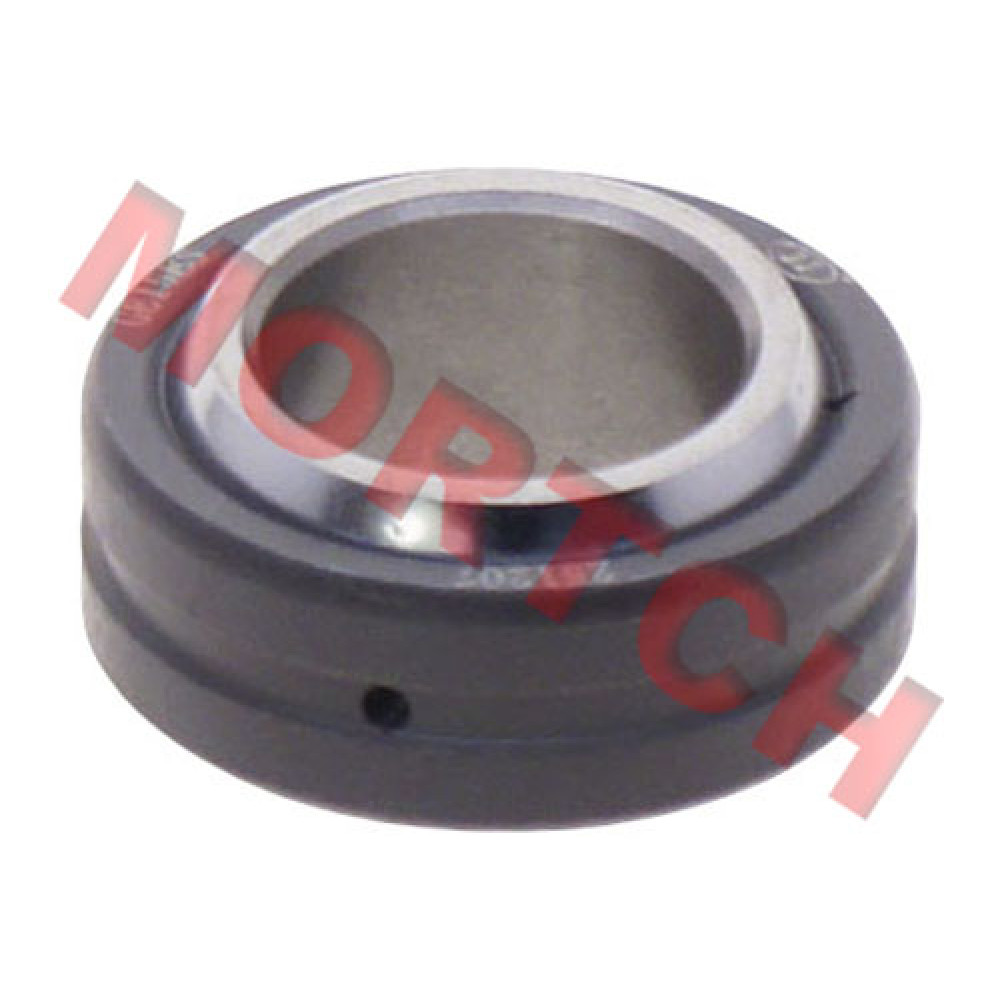

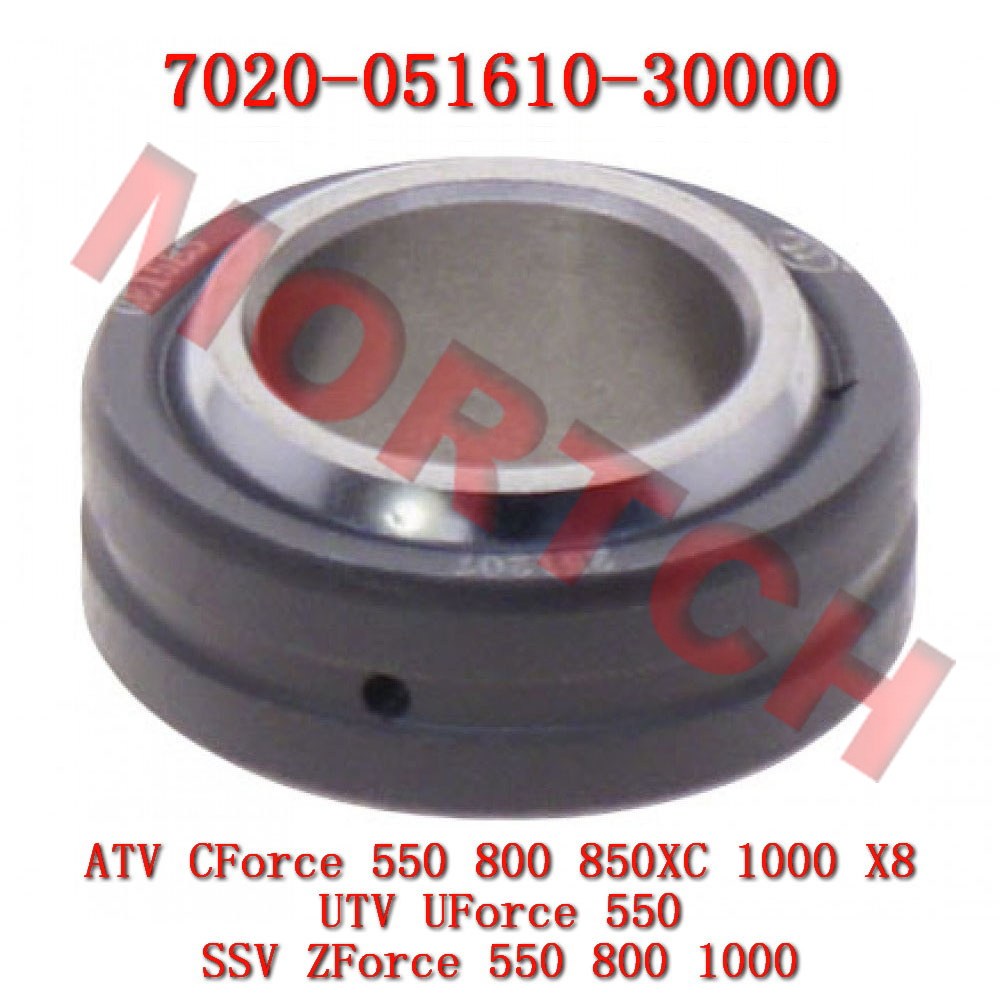

🔧 CFMoto Bearing Assembly (Spherical Bearing)

📦 Part Number: 7020-051610-30000

⚙️ Spherical Plain Bearing Assembly · OEM Specification

📍 Installation Position: Suspension System / Steering Linkage / Rod Ends

✅ Self-Lubricating · Impact Resistant · Fits Multiple CFMoto ATV/SSV/UTV Models

📋 Product Overview

This product is a CFMoto OEM-spec bearing assembly (spherical plain bearing assembly), part number 7020-051610-30000. A spherical plain bearing features a spherical inner ring that allows angular misalignment and oscillation while supporting radial loads. These bearings are widely used in suspension systems, steering linkages, control arms, and other connections requiring both rotational and pivoting movement.

Over time, spherical bearings may experience wear, increased clearance, corrosion, or seizure, leading to suspension noise, loose steering, and incorrect wheel alignment. Timely replacement of worn bearings is essential to restore vehicle handling stability and ensure driving safety.

✅ Genuine Quality Assurance: Manufactured strictly to CFMoto original technical standards. Dimensions and spherical fit tolerances are identical to the original part, ensuring a perfect replacement.

📐 Specifications

🔖 Part Number: 7020-051610-30000

🏷️ Product Type: Spherical Plain Bearing Assembly

🧪 Material: Alloy Steel Outer Ring + Hardened Inner Ring + Self-Lubricating Liner

📍 Installation Position: Suspension Control Arm / Steering Linkage / Rod End

⚙️ Features: Self-Lubricating · Impact Resistant · Wear Resistant

🔧 Function: Allows Angular Movement · Compensates Misalignment · Load Transfer

🚗 Compatible Models (CFMoto ATV / SSV / UTV Series)

This bearing assembly (7020-051610-30000) fits the following CFMoto models (sorted by year and model series):

🏍️ CForce 1000 Series (ATV)

2018-2024 CF1000ATR CForce 1000
2018-2021 CF1000AU CForce 1000 EPS Overland
2020-2025 CF1000AU-F CForce 1000

🏍️ CForce 550 / 500 Series (ATV)

2017-2021 CF500AU-6L CForce 550
2015-2017 CF800-2 X8

🏍️ CForce 800 / 850XC Series (ATV)

2016 CF800ATR CForce 800
2016-2019 CF800ATR-2 CForce 800
2017-2025 CF800ATR-3 CForce 850XC
2017-2025 CF800AU-2A CForce 850XC
2021-2025 CF800AU-2AF CForce 800XC/CForce 850XC
2017-2019 CF800AU-2B CForce 800

🏎️ ZForce Series (SSV)

2018-2021 CF1000US-2 ZForce 1000
2018-2021 CF1000UTR-2 ZForce 1000
2018-2022 CF500US-EX / CF500UTR / CF500UTR(T1b) ZForce 550EX
2018-2021 CF800 / CF800UTR ZForce 800EX / Z8-EX

🚜 UForce Series (UTV)

2019-2020 CF500UTR-2 UForce 550

📌 Fitment Note: This bearing assembly is applicable to the suspension system or steering linkage of the CFMoto ATV, SSV, and UTV models listed above. Different years and versions may use the same bearing specification. If your specific model is not listed, please contact customer service with your VIN for confirmation.

⚙️ Product Features

✅ OEM Specification: Manufactured strictly to CFMoto original technical standards; dimensions and spherical fit tolerances are identical to the original part.
🛡️ Self-Lubricating Design: Embedded self-lubricating liner eliminates the need for additional grease; maintenance-free operation.
💪 High-Strength Material: Alloy steel outer ring with hardened inner ring provides excellent wear resistance and impact strength.
🔧 Wide Angular Movement: Allows significant angular misalignment and oscillation compensation for demanding off-road suspension travel.
🔄 Direct Replacement: Directly replaces worn, loose, or corroded original bearings.
🚗 Restores Handling: Effectively eliminates suspension noise and loose steering, restoring vehicle stability.

✅ Signs Your Bearing Assembly Needs Replacement:
• Clunking or knocking noise from the suspension when driving over bumps.
• Loose steering feel, excessive play, or poor directional stability.
• Uneven tire wear (alignment issues).
• Damaged dust boot, visible corrosion, or excessive bearing clearance.
• Bearing clearance exceeds specification during inspection.
If any of these symptoms occur, please inspect and replace the bearing assembly promptly.

✅ Installation Tips:
1. Clean the mounting bore thoroughly before installation, removing rust and debris.
2. Inspect the mounting bore for deformation or wear; repair or replace if necessary.
3. Use a proper press tool to install the bearing into the bore; avoid hammering to prevent damage.
4. Ensure the bearing is fully seated and the retaining ring or clip is securely fastened.
5. After installation, check that the bearing moves freely without binding or excessive play.
6. Replace bearings on both left and right sides simultaneously to maintain handling balance.
Professional installation is recommended.

⚠️ Important Notice: This product is a CFMoto bearing assembly (spherical plain bearing), part number 7020-051610-30000. Fits the CFMoto ATV, SSV, and UTV models listed above. Minor differences may exist between production batches. If your specific model is not listed, please contact customer service with your VIN for compatibility confirmation. Images are for reference only; actual product may vary.

🔧 Compatibility Notice

Please verify that this part fits your specific vehicle model and year. Many vehicles share similar names but use different components depending on year or market region.
We strongly recommend cross-checking with your vehicle's owner's manual or contacting us for confirmation before placing your order.

📄 Product Disclaimer

Product images, measurements, and descriptions are for reference only. Slight variations in color or appearance may occur due to manufacturing batches or photography lighting—functional specifications remain identical to the ordered part.
Professional installation is mandatory. Mortch Motor assumes no liability for damages, injuries, or losses resulting from improper installation, misuse, unauthorized modification, or abnormal operation.

💰 Import Duties & Taxes

All listed prices EXCLUDE shipping costs, import duties, taxes, and customs clearance fees. These charges (if applicable) are determined and collected by your local customs authority and are solely the buyer's responsibility.
In case of return due to unpaid duties/taxes or refusal to clear customs, the buyer shall bear the original shipping cost, return shipping fees, and any associated administrative charges deducted from the refund.

📌 Order Confirmation: By completing your purchase, you acknowledge that you have read, understood, and agreed to all terms above. For any questions, please contact our support team prior to ordering.
