Bearing 6200-RS/P6

Brand: Mortch Motor
Product Code: MICF30400-01003

Product Viewed: 4

Availability: 6

Weight: 0.03kg

0 reviews / Write a review

US$12.00
10 or more US$9.00

Shipping To：

More Quotes

Qty

Buy Now

Tell a Friend Ask a Question

🔧 CFMoto Bearing 6200-RS/P6

📦 Part Number: 30400-01003

⚙️ Bearing 6200-RS/P6 · Deep Groove Ball Bearing · OEM Spec

📍 Installation: Transmission system · Engine/Transmission/Wheel hub

✅ Single unit · Premium bearing steel · Double sealed · Fits multiple CFMoto SSV/ATV/UTV models

📋 Product Overview

This is a CFMoto OEM-spec rolling bearing, model 6200-RS/P6, part number 30400-01003, sold as a single unit. This deep groove ball bearing features an inner diameter of 10mm, outer diameter of 30mm, and width of 9mm. The double-sided rubber seal (RS) design provides excellent dust and water resistance, making it suitable for supporting and positioning rotating components in transmission systems, engines, gearboxes, and wheel hubs.

Bearings are subjected to high speeds and loads. Over time, they may develop play, noise, or even seize due to wear, fatigue, or lubrication failure — affecting transmission efficiency and driving safety. Replacing them promptly with an OEM-spec bearing is essential to restore mechanical precision, reduce operating noise, and extend service life.

✅ OEM Quality Assurance: Manufactured to CFMoto's original technical standards using premium bearing steel with precision machining. Dimensions and tolerances are identical to genuine parts, ensuring a perfect replacement and reliable rotational support performance.

📐 Specifications

🔖 Part Number: 30400-01003

🏷️ Bearing Model: 6200-RS/P6

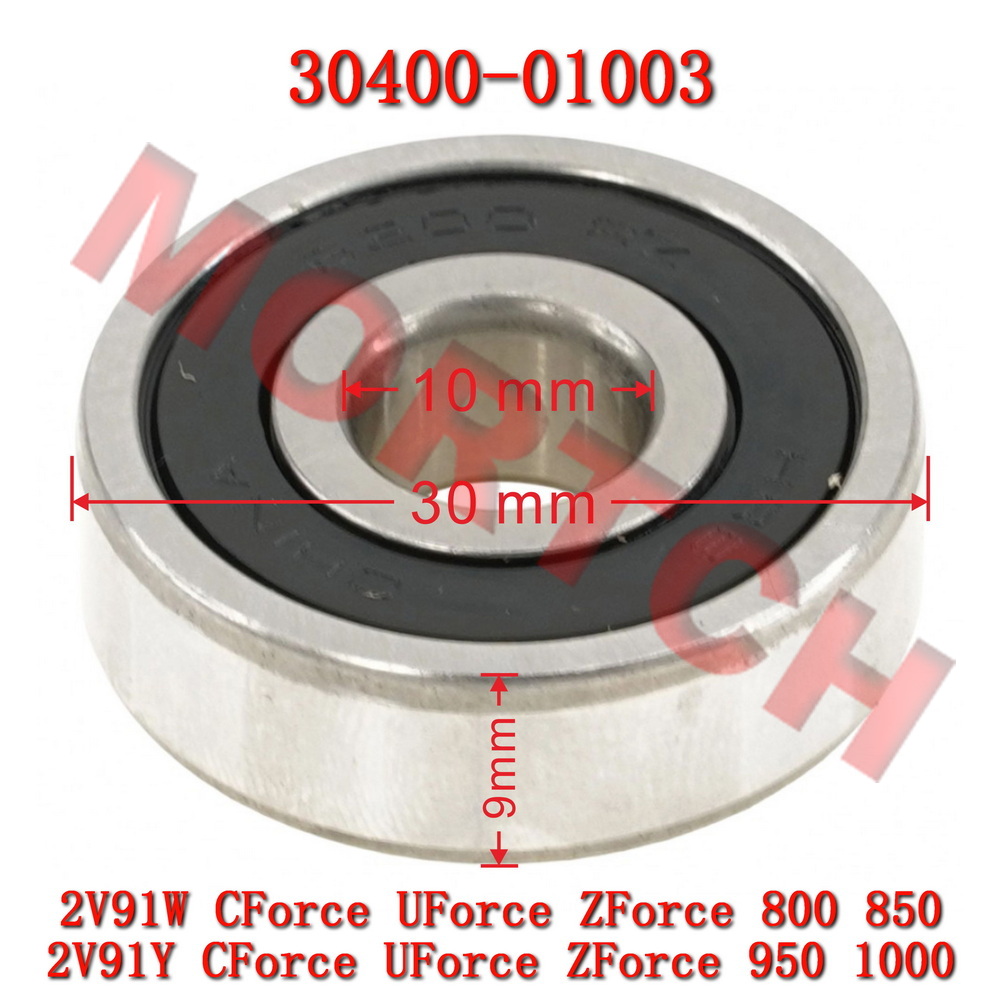

📐 ID × OD × Width: 10 × 30 × 9 mm

🧪 Seal Type: Double rubber sealed (RS)

⚙️ Precision Class: P6

📦 Package: Single unit

🚗 Fitment

This bearing (part number 30400-01003, model 6200-RS/P6, single unit) fits the following CFMoto models:

🏎️ ZForce 1000 (2V91Y-Z1000)

CF1000US-2 · ZForce 1000 (2016-2021)
CF1000UTR-2 · ZForce 1000 (2017-2021)

🏎️ ZForce 1000 Sport / EX (2V91Y-Z10)

CF1000US · ZForce 1000EX (2020-2022)
CF1000US-A · ZForce 950 Sport / ZForce 1000 Sport (2020-2022)
CF1000UTR-B · ZForce 1000 Sport (2020-2022)

🏍️ CForce 1000 (2V91Y-X10)

CF1000ATR · CForce 1000 (2018-2024)
CF1000AU · CForce 1000 EPS Overland (2018-2025)
CF1000AU-F · CForce 1000 Overland (2020-2025)

🚙 UForce 1000 (2V91Y-U10)

CF1000UU · UForce 1000 (2018-2025)
CF1000UU-2 · UForce 1000 XL (2022-2025)
CF1000UTR-3 · UForce 1000 (2018-2026)
CF1000UTR-5 · UForce 1000 XL (2022-2026)
CF1000UZ · UForce 1000 (2022-2026)
CF1000UZ-2 · UForce 1000 XL (2022-2026)
CF1000UZ-A · UForce 1000 (2024)
CF1000UZ-2A · UForce 1000 XL (2024)
CF1000YM-2J · UForce 1000 XL (2025)
CM1000UZ-A · UForce 1000 Alpine (2024-2025)
CM1000UZ-2A · UForce 1000 XL Alpine (2024)

🏍️ CForce 1000 (2V91Y-F)

CF1000ATR-2 · CForce 1000 X10 (2024-2026)
CF1000ATR-2A · CForce 1000 X10 Overland (2025-2026)
CF1000ATR-3 · CForce 1000 MUD (2025-2026)
CF1000ATR-3L · CForce 1000 MV (2025-2026)
CF1000ATR-4L · GOES TERROX 1000 T3b (2026)
CF1000AU-2 · CForce 1000 X10 Overland (2025-2026)
CF1000AU-4L · GOES TERROX 1000 EPS (2026)
CF1000AZ-2 · CForce 1000 Touring (2024-2026)
CF1000AZ-2A · CForce 1000 Overland (2025-2026)
CF1000AZ-3 · CForce 1000 EPS MUD (2025)

🏎️ ZForce 950 / 1000 (2V91Y-D)

CF1000SZ-3L · ZForce 950 Sport 4 (2023-2026)
CF1000SU-3 · ZForce 950 Trail (2022-2025)
CF1000SU-3A · ZForce 950 Sport (2023-2024)
CF1000SU-3L · ZForce 950 Sport-4 (2024-2025)
CF1000SU-D · ZForce 950 H.O.EX / ZForce 1000 Sport R (2022-2025)
CF1000SU-E · ZForce 950 H.O.Sport (2022-2024)
CF1000SZ-D · ZForce 950 HO EX (2022-2025)
CF1000SZ-E · ZForce 950 HO Sport (2022-2023)
CF1000UTR-C · ZForce 1000 Sport R (2022-2025)
CF1000US-J · ZForce 1000 (Police) (2021-2022)

🏍️ CForce 1000 Overland (2V91Y-C)

CF1000AZ · CForce 1000 Overland (2023-2024)
CF1000AU-F · CForce 1000 Overland (2019-2025)

🏍️ CForce 800 / 850 · UForce 800 (2V91W Platform)

CF800AU-2B · CForce 820LE (2016-2019) · 2V91W-S
CF800UTR-4 · UForce 800 XL (2025-2026) · 2V91W-K
CF800SU-3 · ZForce 800 Sport (2025-2026) · 2V91W-G
CF800AZ-3 · CForce 800/850 Touring (2024-2026) · 2V91W-F
CF800AU-3 · CForce 850 X8 Touring (2025-2026) · 2V91W-F
CF800ATR-5 · CForce 850 X8 Touring (2024-2026) · 2V91W-F
CF800UZ-4 · UForce 800 XL (2025-2026) · 2V91W-F
CF800UU-4 · UForce 800 XL (2025) · 2V91W-F
CF800AU-2AF · CForce 800XC/850XC (2021-2025) · 2V91W-D
CF800AU-2A · CForce 850XC (2017-2025) · 2V91W-A
CF800ATR-3 · CForce 850XC (2017-2025) · 2V91W-A
CF800AZ-2A · CForce 800XC (2022-2024) · 2V91W-A
CF800 · ZForce 800EX (2012-2022) · 2V91W(Z8)
CF800US-A · ZForce 800 Trail (2013-2022) · 2V91W(Z8)
CF800-2 · Terralander 800 X8 (2011-2019) · 2V91W(X8)
CF800ATR · CForce 800 (2016) · 2V91W(X8)
CF800UU-A · UForce 800 (2014-2025) · 2V91W(U8)
CF800-3 · UForce 800 (2012-2022) · 2V91W(U8)
CF800UTR-2 · UForce 800 (2017-2022) · 2V91W FOR CF800UTR-2
CF800UTR · ZForce Z8-EX (2017-2020) · 2V91W FOR CF800UTR
CF800ATR-2 · CForce 820LE (2016-2019) · 2V91W FOR CF800ATR-2

📌 Fitment Note: This bearing is designed for rotating components in transmissions, engines, or gearboxes on the listed CFMoto SSV/ATV/UTV models. Single unit. If your specific model is not listed, please contact us with your VIN to confirm compatibility.

⚙️ Features

✅ OEM Specification: Manufactured to CFMoto's original technical standards. Dimensions and tolerances are identical to genuine parts.
🛡️ Premium Bearing Steel: Made from high-purity bearing steel with heat treatment and precision grinding for excellent wear and fatigue resistance.
🔧 Double Sealed (RS): Rubber seals effectively prevent dust, moisture, and contaminants from entering, extending service life.
💪 High Precision (P6): P6 precision class ensures smooth operation, low noise, and high reliability.
🔄 Direct Replacement: Can be used to directly replace worn, noisy, or damaged original bearings.

✅ Typical signs that the bearing needs replacement:
• Unusual noise (humming, grinding, or clicking) from the transmission or rotating component.
• Noticeable play or excessive clearance in the rotating component.
• Abnormally high operating temperature of the bearing.
• Damaged seal, grease leakage, or corrosion.
• Inspection reveals wear or spalling on the raceways or balls.
If any of these signs appear, please inspect and replace the bearing promptly.

✅ Installation Tips:
1. Confirm the bearing model is 6200-RS/P6 and part number 30400-01003 matches your vehicle.
2. Use a proper puller tool to remove the old bearing without damaging the housing.
3. Clean the bearing housing and shaft journal, removing oil and debris.
4. Inspect the housing and shaft journal for wear or damage.
5. When installing the new bearing, note the orientation (RS seal facing outward). Use a press or proper sleeve for installation.
6. After installation, check that the bearing rotates smoothly with no binding.
7. Apply grease as per factory specifications (if applicable).
Professional installation is recommended. Maintain cleanliness to prevent contaminants from entering the bearing.

⚠️ Important Notice: This product is a CFMoto rolling bearing, model 6200-RS/P6, part number 30400-01003, single unit. Fits the listed CFMoto SSV/ATV/UTV models. Minor variations may exist between production batches. If your specific model is not listed, please contact us with your VIN to confirm compatibility. Images are for reference only; actual product may differ slightly.
